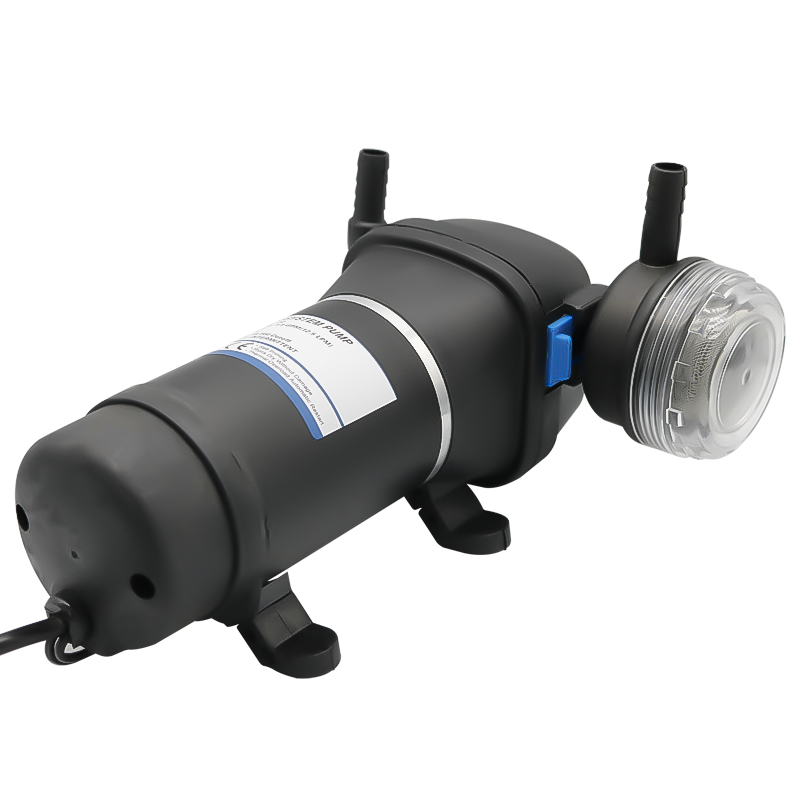

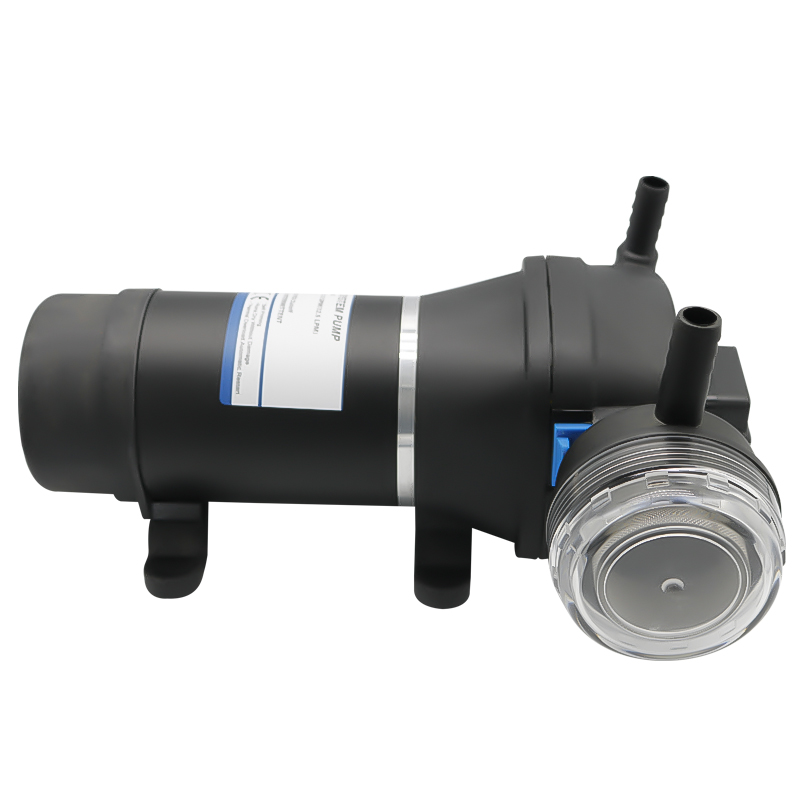

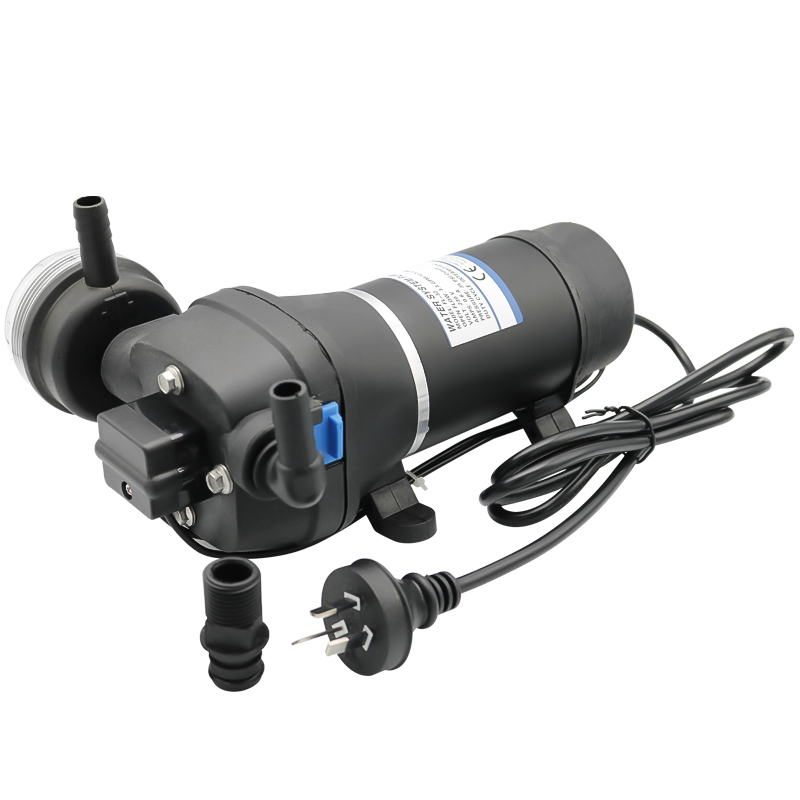

110V 220V AC Electric Diaphragm Pump Booster Motor
- Type:DIAPHRAGM PUMPS
- Maximum Head:20M
- Maximum Flow Rate:12.5L/min
- Samples:DIAPHRAGM PUMPS,20M,12.5L/min
- Customization:Customized logo/packaging/Graphic(Min. Order: 1000 Pieces)
- Shipping:Support Express·Sea freight·Land freight·Air freight
ATTENTION
* Do not use water or dirty water (silt in dirty water will cause irreversible damage to the pump).
* Non-submersible pumps are not waterproof.Do not spray water directly at the pump.It is strictly forbidden to soak the pump in water.Dry the pump body after use.
* Non-submersible pumps are not waterproof and cannot be used in a damp place for a long time.
* Do not disassemble the water pump or adjust the pump pressure setting screw by yourself (adjusting the pressure setting screw without authorization may be fatal to the pump).
* It is strictly forbidden to use this machine without the filter,and the density of the filter should be above 80 mesh (impurities will cause damage to the pump).
* The diameter of the spray hole must meet the specified value,otherwise,the water pump will be damaged.
* Please confirm the power supply before use,the power supply parameters must be consistent with the pump input parameters.

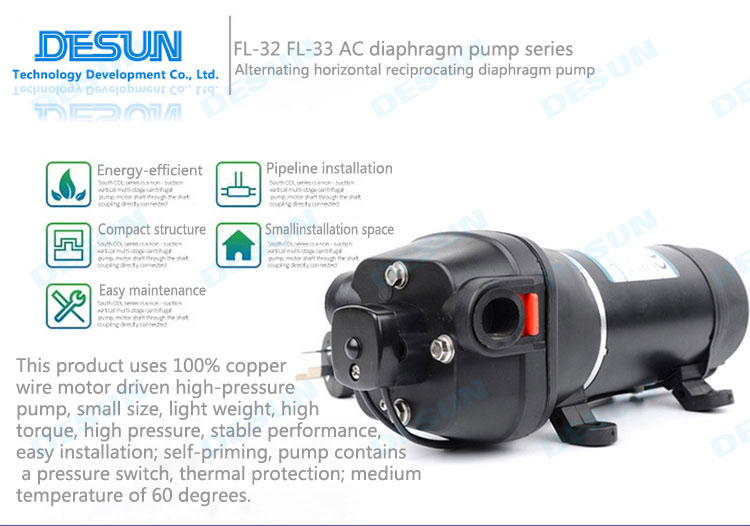

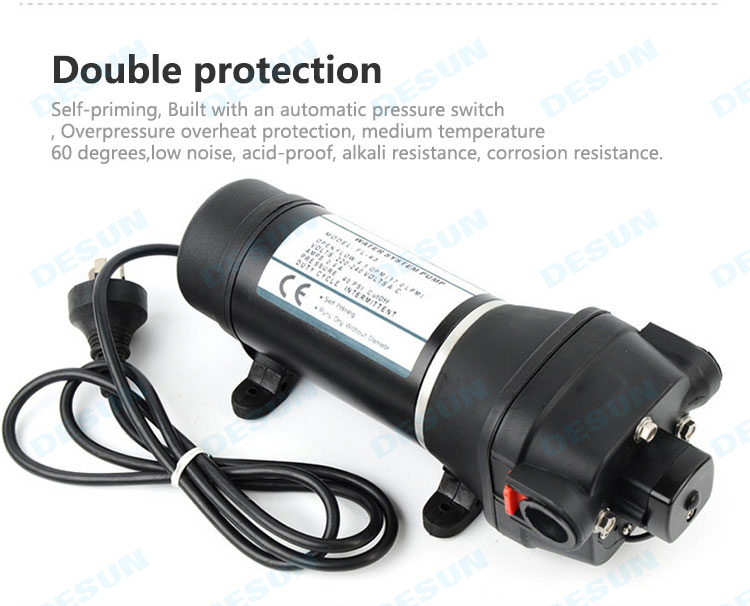

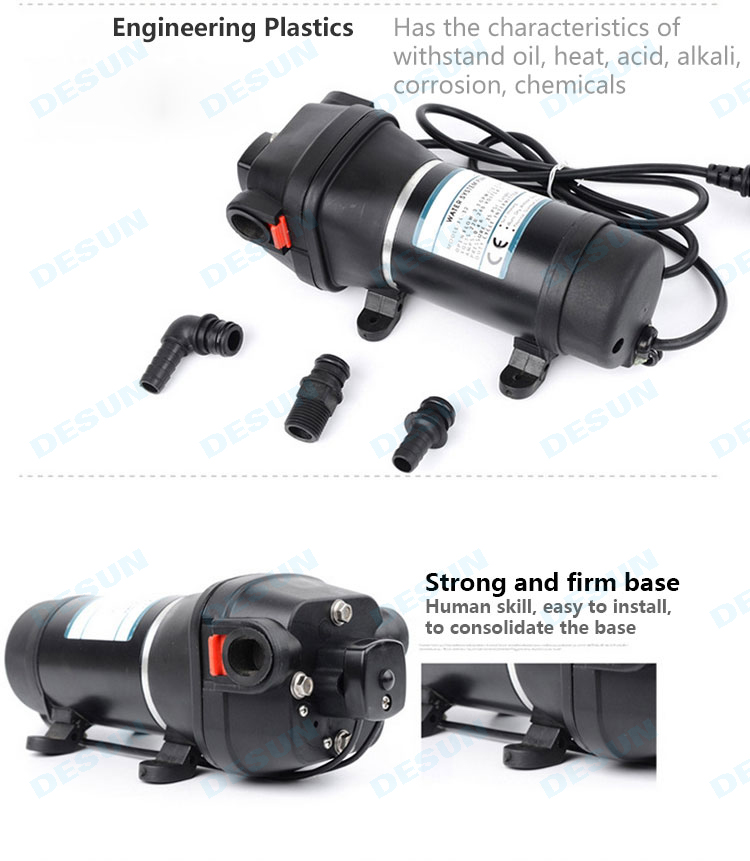

FL-32 / FL-33 Diaphragm Water Pump
|
Model
|
Volts(V)
|
Flowrate(Lpm)
|
Amps(A)
|
Static head(m)
|
N.W/G.W(KG)
|
|
FL-32
|
110V
|
12.5LPM
|
0.4~0.8
|
20M
|
2.20/2.60
|
|
FL-33
|
220V
|
12.5LPM
|
0.2~0.5
|
20M
|
2.20/2.60
|
* The technical parameters above are only a few for your reference.

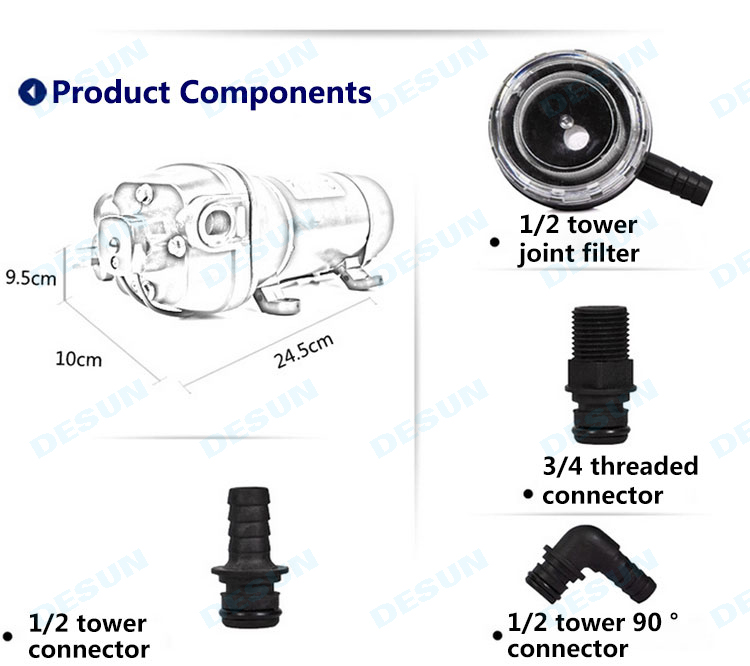

* All models can be equipped with adapters.* All models can be powered by solar power, DC power, solar panels, batteries, etc.

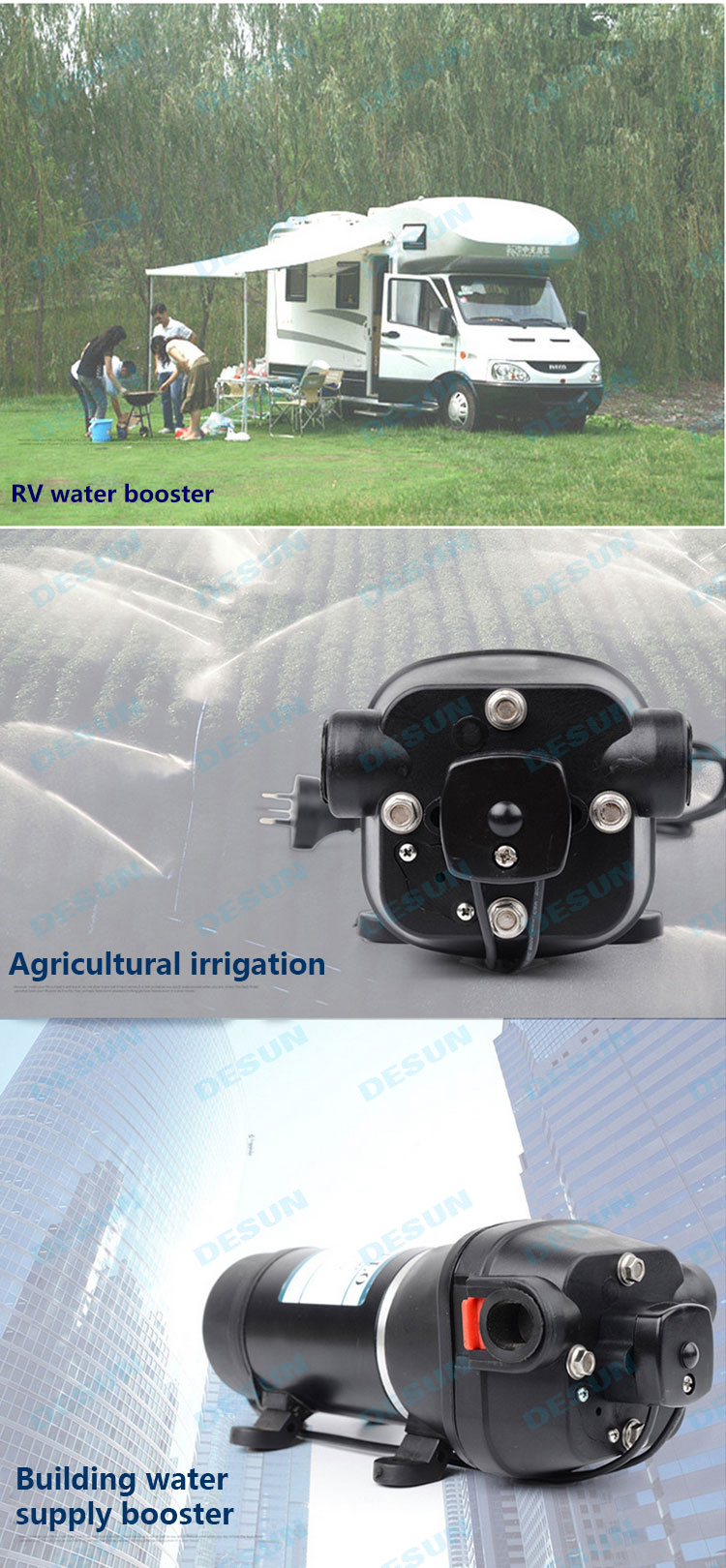

The pictues of application scope are only for reference
Mainly used for High – pressure fog – making,long-distance or mountain road trucks breakwater cooling,pumping wine,milk,soy milk,drinking,cooking oil,and other liquids,Pumping gasoline,diesel,viscous liquids;Spray irrigation and water spraying,cleaning the car,air conditioner,vacuum cleaner,water purifier,etc…
