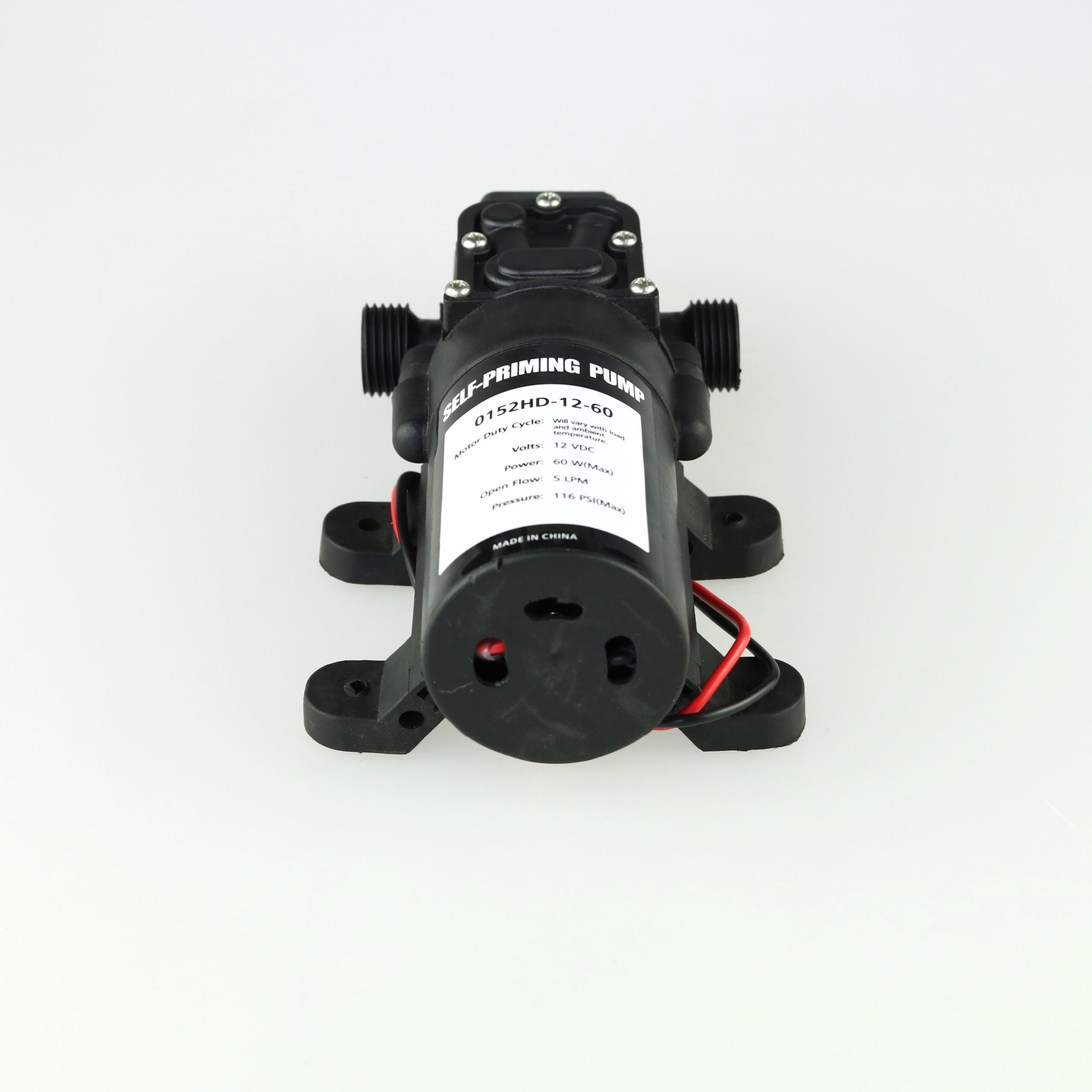

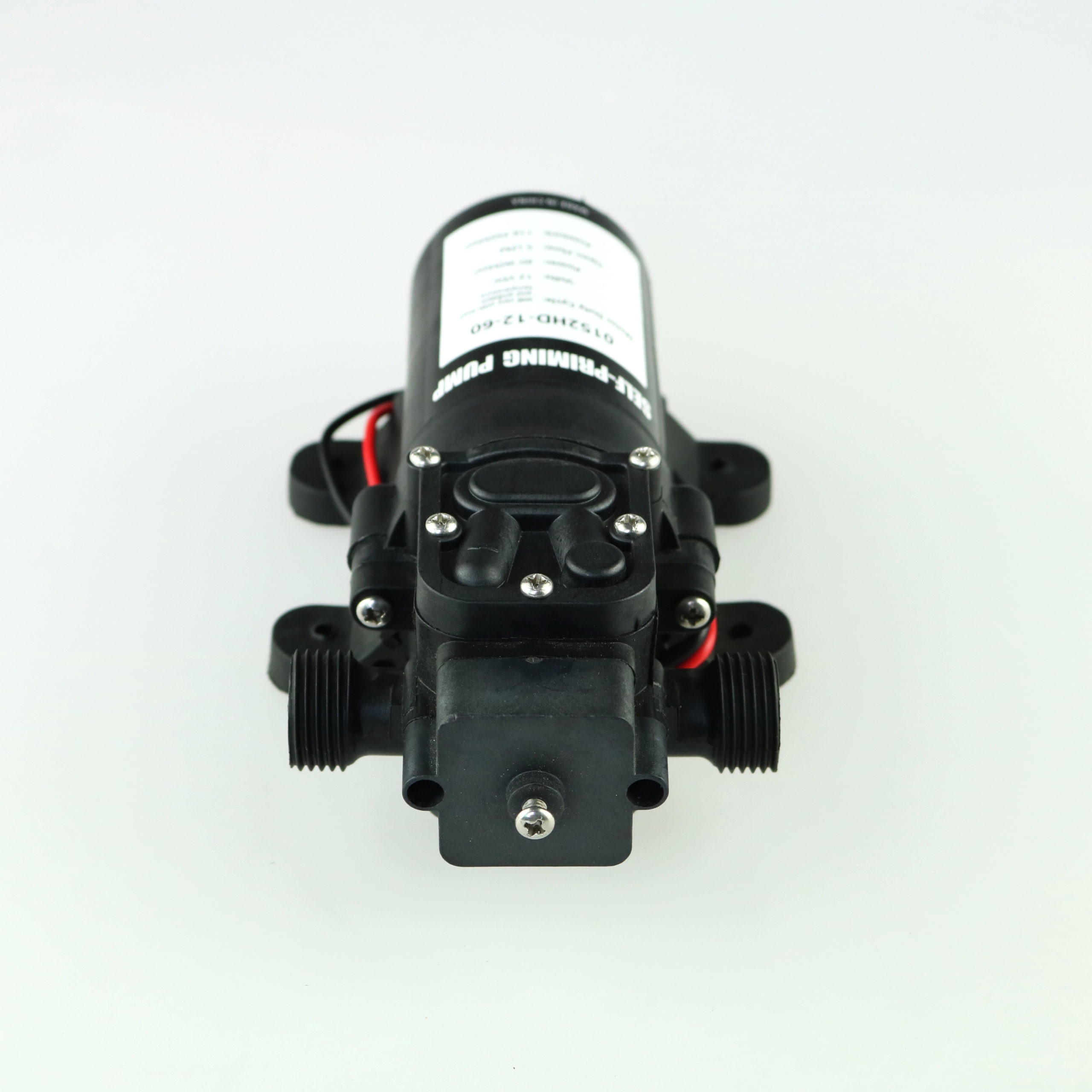

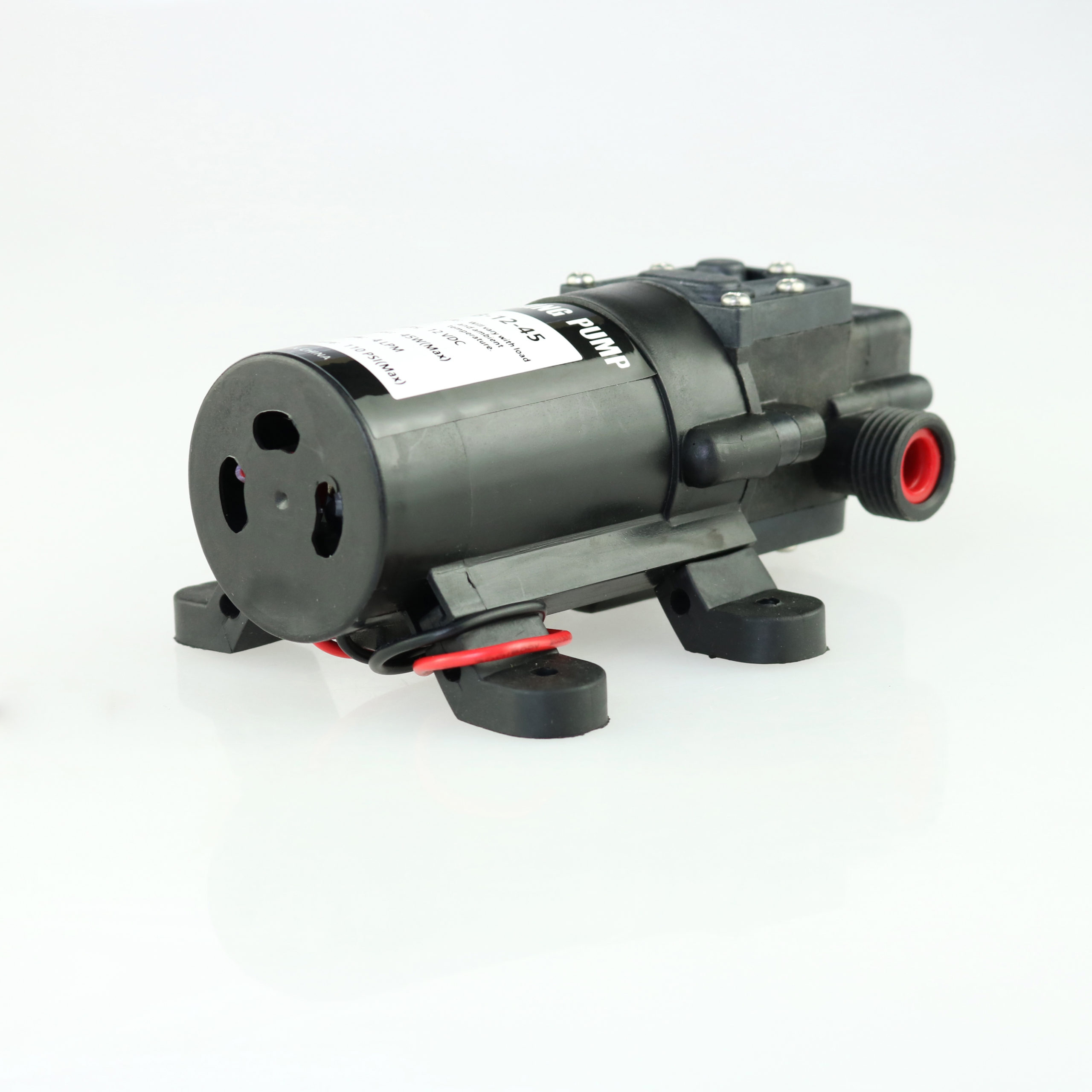

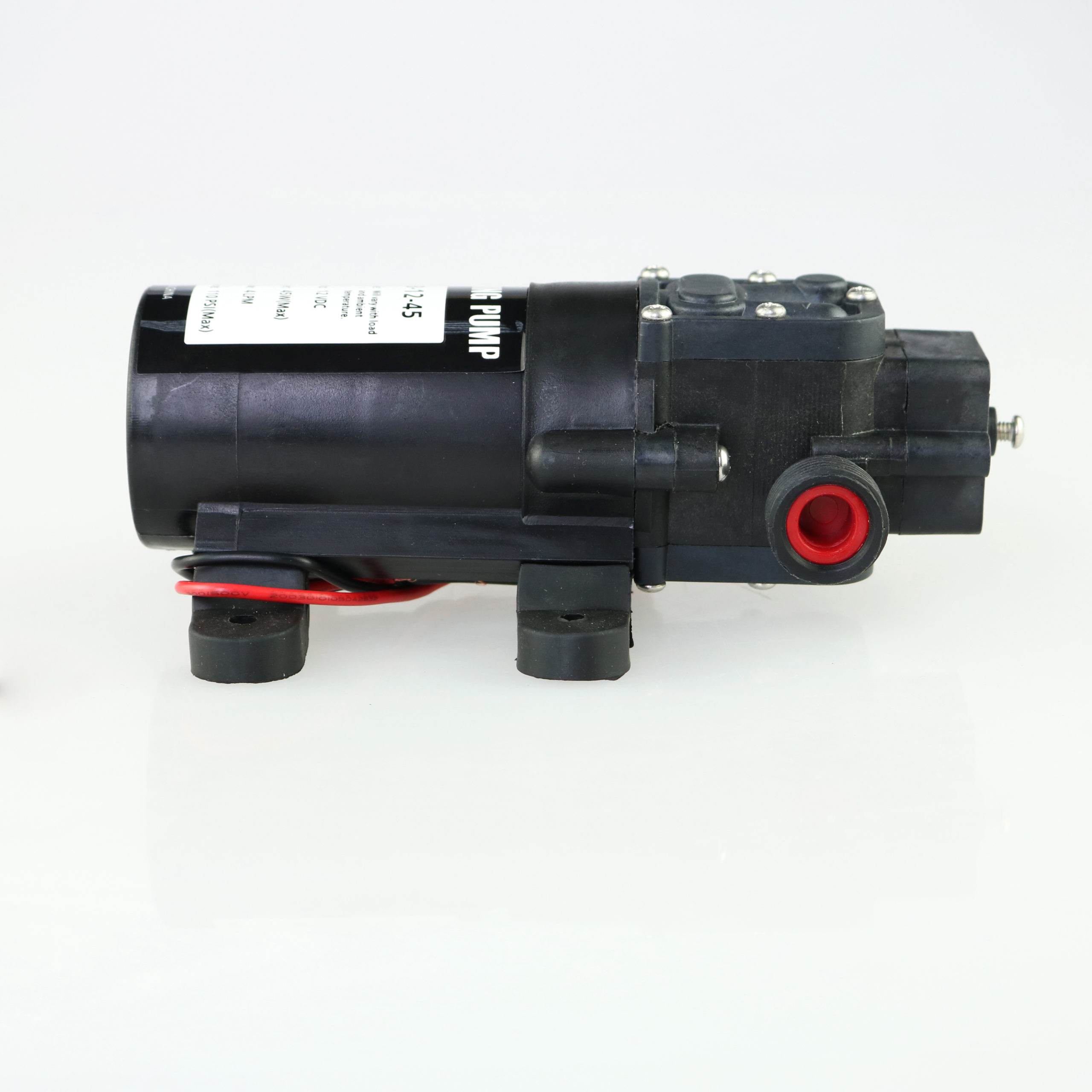

12V 116PSI Self-priming Car Washer Booster
- Type:DIAPHRAGM PUMPS
- Maximum Head:50M
- Maximum Flow Rate:5L/min
- Samples:DIAPHRAGM PUMPS,50M, 5L/min
- Customization:Customized logo/packaging/Graphic(Min. Order: 1000 Pieces)
- Shipping:Support Express·Sea freight·Land freight·Air freight
MODEL EXPLANATION
0152 represents the motor model,H represents the pump's head type,A represents the interface type,12 represents the voltage,and 15 represents the power.
PUMP'S HEAD TYPE EXPLANATION
When the water pump outlet is closed or blocked,the pipeline pressure increases to the set value,the power supply will be automatically cut off to stop the motor.The pressure reduces while reopening the water outlet,then the pressure switch will automatically turn on the power supply,and the motor rerun.
Application scope:
Car washer,solar energy automatic water,water system automatic control or other fluid automatic control auxiliary equipment, etc...

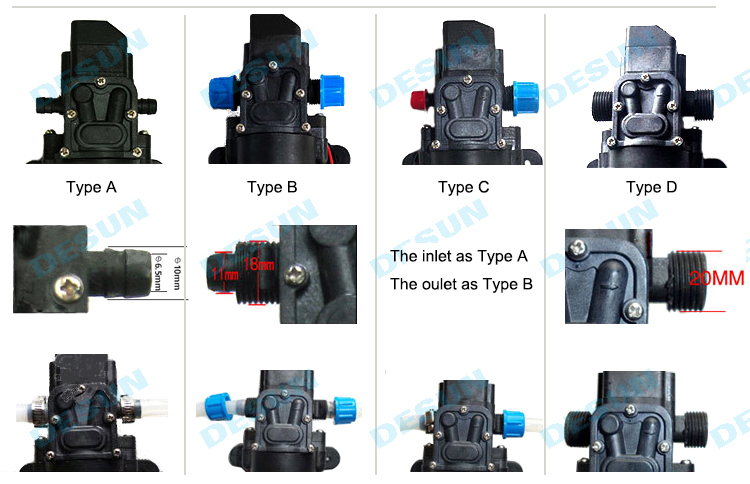

INTERFACE DISCRIPTION
- Warranty:1 year
- Customized support:OEM,ODM
- Brand Name:DESUN
- Model Number:0152HA-12-60/0152HA-24-60
- Place of Origin:Guangdong,China
- Application:Automotive Industry,Developing World Water Solutions,Family Homes,HVAC OEM,Industrial Boilers,Industrial Utilities,Irrigation and Agriculture,Machining,Mining industry,temperature control,Washing and Cleaning, Water Distribution,Water Treatment Solutions,washing,cleaning air conditioning,family medicine,pumping,spray
- Horsepower:60W
- Power Source:Electric
- Pressure:116Psi
- Structure:Diaphragm Pump
- Cable Length:30CM
- Voltage:12V, 12vdc/24vdc
- Power:60w
- Product Name:Diaphragm Pump
- Max pressure:116Psi
- Working pressure:73Psi
- Suction lift:1.5m
- Pipe lift:50m
- Flow rate:5L/MIN
- working temperature:100degC
- Certification:RoHS,ce

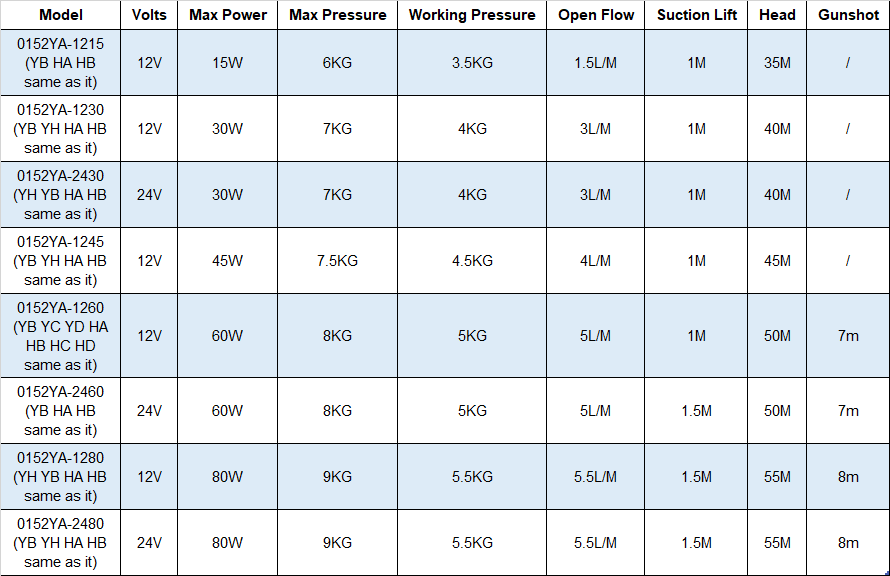

RELATED MODELS TECHNICAL PARAMETERS
* The technical parameters above are only a few for your reference.
* All models can be equipped with adapters.* All models can be powered by solar power,DC power,solar panels,batteries,etc.
ATTENTION
* Do not use water or dirty water (silt in dirty water will cause irreversible damage to the pump).
* Non-submersible pumps are not waterproof.Do not spray water directly at the pump.It is strictly forbidden to soak the pump in water.Dry the pump body after use.
* Non-submersible pumps are not waterproof and cannot be used in a damp place for a long time.
* Do not disassemble the water pump or adjust the pump pressure setting screw by yourself (adjusting the pressure setting screw without authorization may be fatal to the pump).
* It is strictly forbidden to use this machine without the filter,and the density of the filter should be above 80 mesh (impurities will cause damage to the pump).
* The diameter of the spray hole must meet the specified value,otherwise,the water pump will be damaged.
* Please confirm the power supply before use,the power supply parameters must be consistent with the pump input parameters.
The pictures application scope are only for reference
Mainly used for High – pressure fog – making,long-distance or mountain road trucks breakwater cooling,pumping wine,milk,soy milk,drinking, cooking oil,and other liquids,Pumping gasoline,diesel,viscous liquids;Spray irrigation and water spraying,cleaning the car,air conditioner,vacuum cleaner,water purifier,etc…
