12V/24V Electric Water Pump For Water Heaters And Cleaning Machine
- Brushless motor,long life span;Expected life span is about 20000 hours.
- Low noise:≤40dB, far from 1meter distance.
- Duty work:The pump can sustain heavy-duty work for a whole day. Continuous operation.
- Small size,lightweight,easy to install；
- Epoxy potting,IP68 waterproof rating；
- Reliable Performance:Works quietly;Energy saving;High efficiency;Environment protection;
- Durable permanent magnetic rotor and high density(stainless steel or zirconia)optional shaft；
Introduce
Specification
Application
|
Product name
|
Water pump
|
|
Model
|
DS4505
|
|
Working voltage
|
12/24V(DC)
|
|
Max. flowrate
|
20L/min
|
|
Max. head
|
5M
|
|
Working temp.
|
70℃/100℃
|
|
Material
|
PPE
|
|
Water proof level
|
IP68
|
|
Noise
|
≤40dB
|
|
Lifetime
|
20000H
|
|
Inlet diameter
|
G1/2
|
|
Outlet diameter
|
G1/2
|
Related model technical parameters
|
Model
|
Volts
(V)
|
Amps
(A)
|
Flow
(LPM)
|
Head
(M)
|
Power
(W)
|
|
DS4505-1245
|
12
|
2.4
|
20
|
4.5
|
30
|
|
DS4505-2450
|
24
|
1.3
|
20
|
5
|
30
|
The technical parameters above are only a few for your reference.You can tell us what you use for,then we’ll offer you suitable pumps.

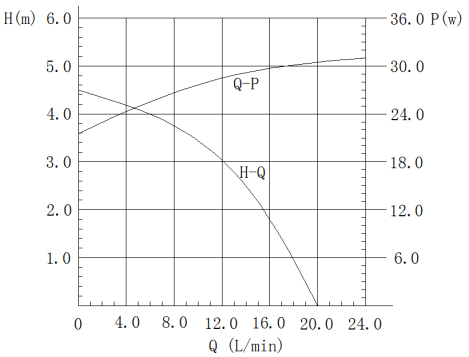

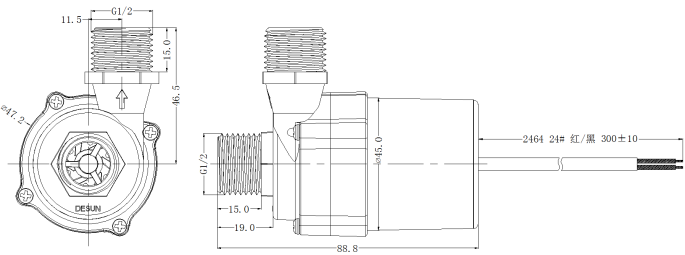

Dimensional drawing and working curve diagram
Widely used for hydroponics,water heaters,hot water circulation,small air conditioner, mini aquarium, fish tank,water circulation,desktop fountain,Handicraft decoration water cycle,humidifier,Water and soil cultivation,pet fountain, etc…
We supply Full Customization Service,please contact us for the details.
