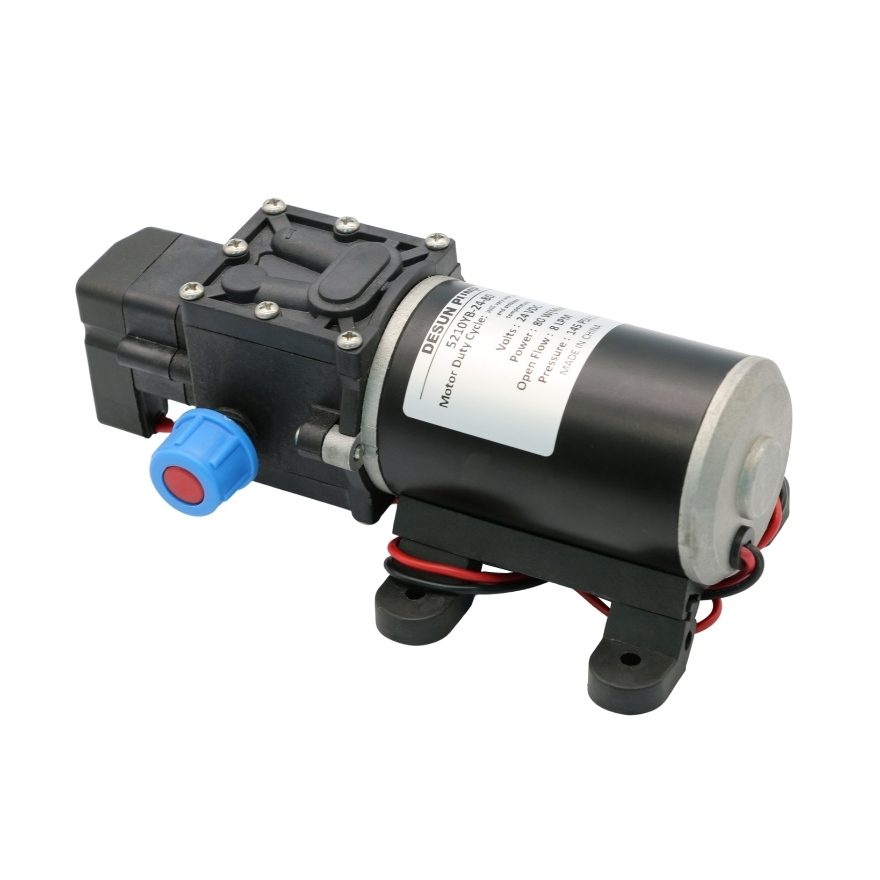

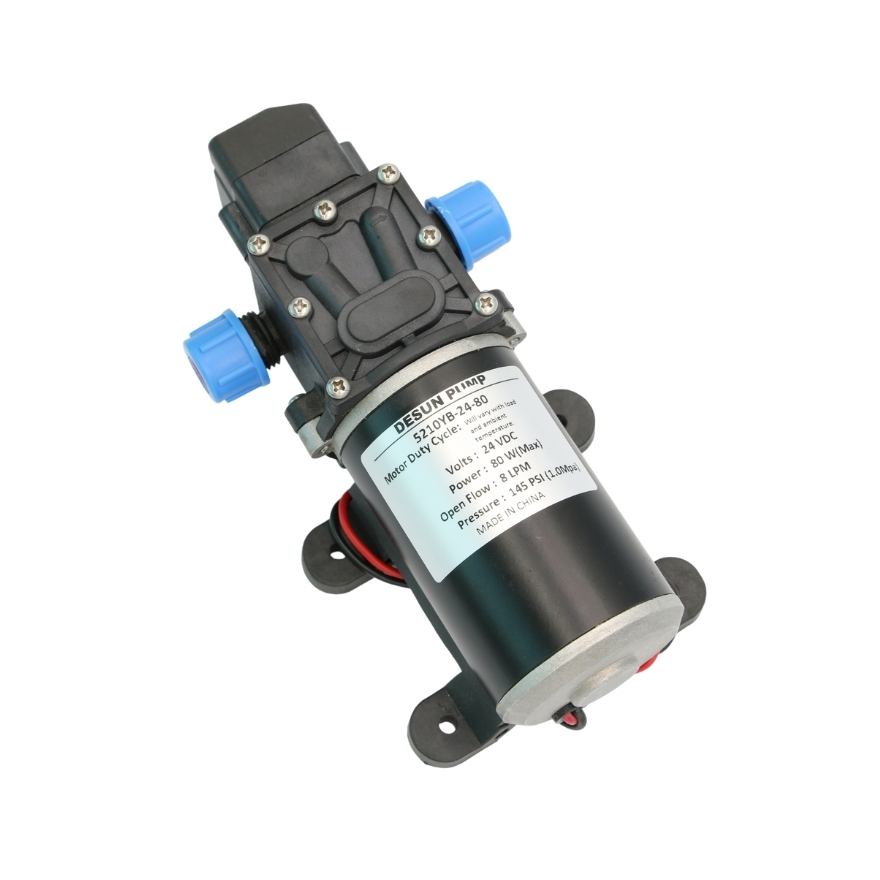

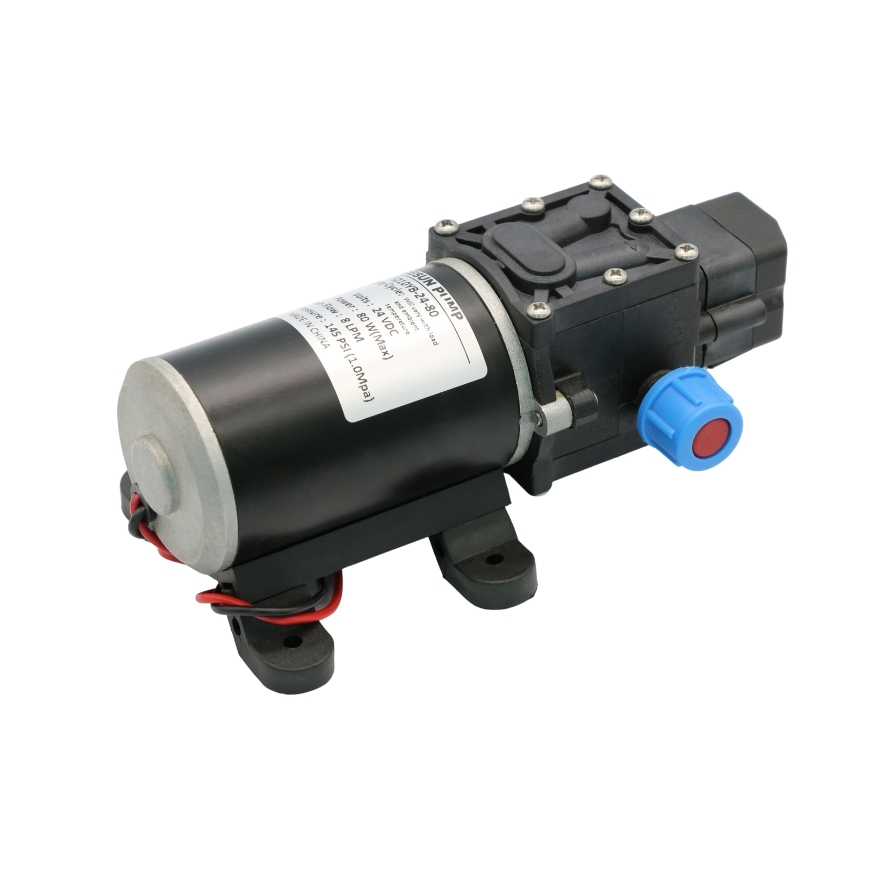

12V/24V high pressure automatic pressure car wash water pump
Type:Diaphragm pump
Open flow:6L/MIN
Max power:80W
Customization:Customized logo/packaging/Graphic(Min. Order: 1000 Pieces)
Shipping:Support Express · Sea freight · Land freight · Air freight
Introduce

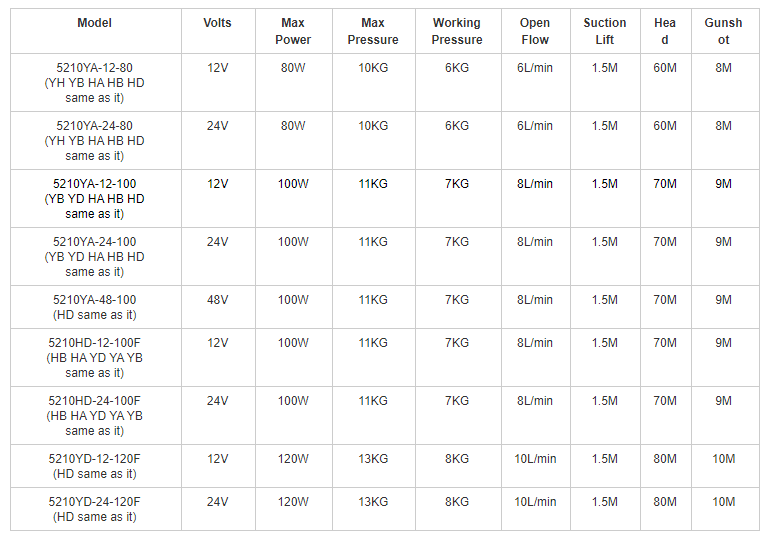

Specification
Application
TYPE Y INTELLIGENT PUMP HEAD
Features:
When the water pump outlet is closed or blocked,the pipeline pressure increases to the set value,the power supply will be automatically cut off to stop the motor；
The pressure reduces while reopening the water outlet,then the pressure switch will automatically turn on the power supply,and the motor rerun.
Application scope:
Car washer, solar energy automatic water,water system automatic control or other fluid automatic control auxiliary equipment,etc...
- Warranty:1 year
- Customized support:OEM,ODM
- Brand Name:Desun
- Model Number:5210YB-12-80,5210YB-24-80,
- Place of Origin:Guangdong, China
- Application:Other,Automotive Industry,Family Homes,Industrial Utilities,Irrigation and Agriculture,Metal and Equipment Manufacturers,Washing and Cleaning,Water Distribution,Water Treatment Solutions
- Horsepower:100w
- Power Source:Electric
- Pressure:145psi
- Structure:Diaphragm Pump
- Cable Length:30cm
- Outlet Size:30mm
- Voltage:12v/24v
- Power:80W
- Product name:Water pump
- Feature:High Efficiency High Pressure
- Lifetime:2000HOURS
- Workig temp.:Less than 60℃
- Suction lift:1.5M
- Weight:1.06Kg
- Sample:Available
- Flow:6l/min
- Certification:CE,RoHS
Mainly used for High-pressure fog-making, long – distance or mountain road trucks brake water cooling,pumping wine,milk,soy milk,drinking,cooking oil,and other liquids,Pumping gasoline,diesel,viscous liquids;Spray irrigation and water spraying,cleaning car,air contioner,vacuum cleaner,water purifier,etc…
We supply Full Customization Service,please contact us for the details.
