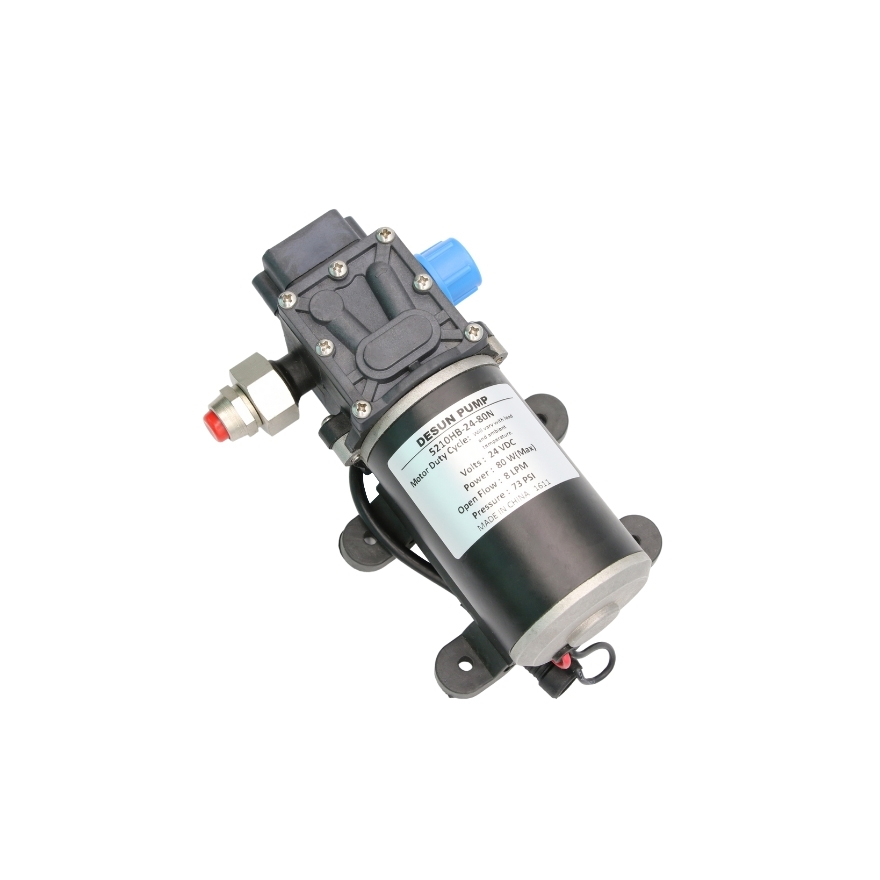

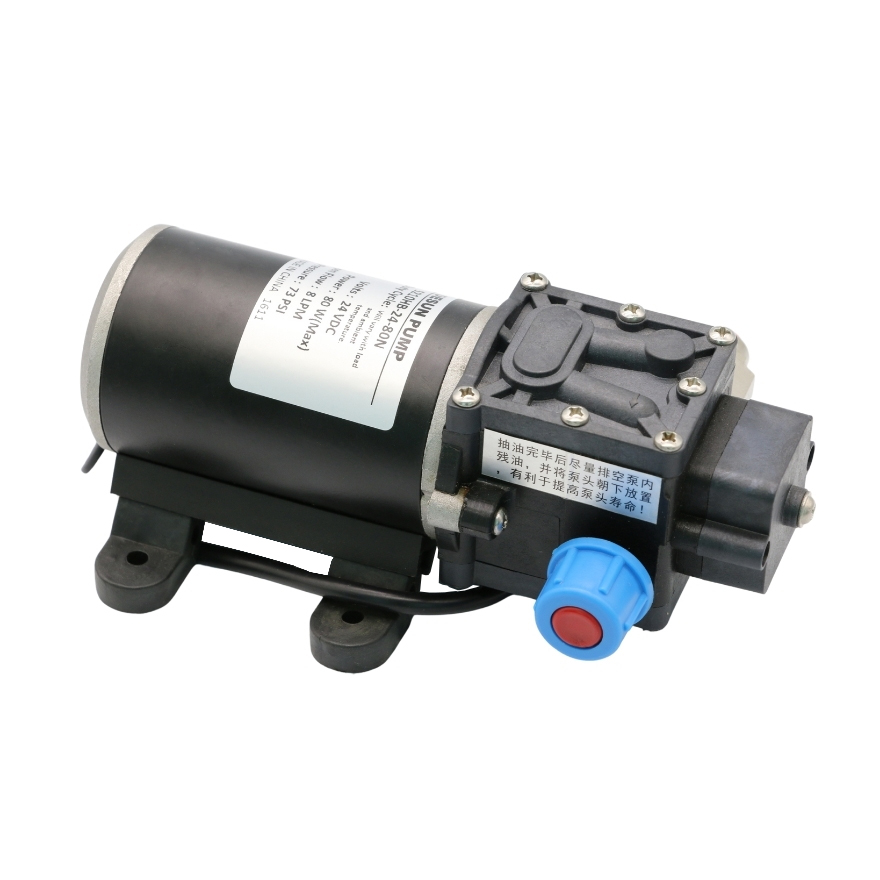

12V/24V small DC electric fuel pump for Gasoline/diesel
- When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the power supply will be automatically cut off to stop the motor；
- The pressure reduces while reopening the water outlet, then the pressure switch will automatically turn on the power supply, and the motor rerun.
Introduce
Specification
Application
|
Model
|
Volts
|
Max Power
|
Open Flow
|
Suction Lift
|
Main Application
|
|
5210HB-12-80N
|
12V-24V
|
80W
|
8L/min
|
1.5M
|
Gasoline, diesel, kerosene, and weakly viscous liquids
|
- Warranty:1 year
- Customized support:OEM, ODM
- Brand Name:Desun
- Model Number:5210HB-12-80N/5210HB-24-80N
- Place of Origin:Guangdong, China
- Application:Other, Automotive Industry, Biofuel Industry, Machining, Marine
- Horsepower:Desun standard
- Power Source:Electric
- Pressure:Other
- Structure:Diaphragm Pump
- Cable Length:30cm
- Outlet Size:M18
- Voltage:12V/24V
- Power:80W
- Product name:Oil Pump
- Standard or Nonstandard:Standard
- Long life:5 years
- Workig temp.:Less than 60℃
- Suction lift:1.5M
- Weight:1.06Kg
- Liquid:Corrosive Liquid
- Drive mode:DC electric source,Battery.
- Sample:Available
- Certification:ce
