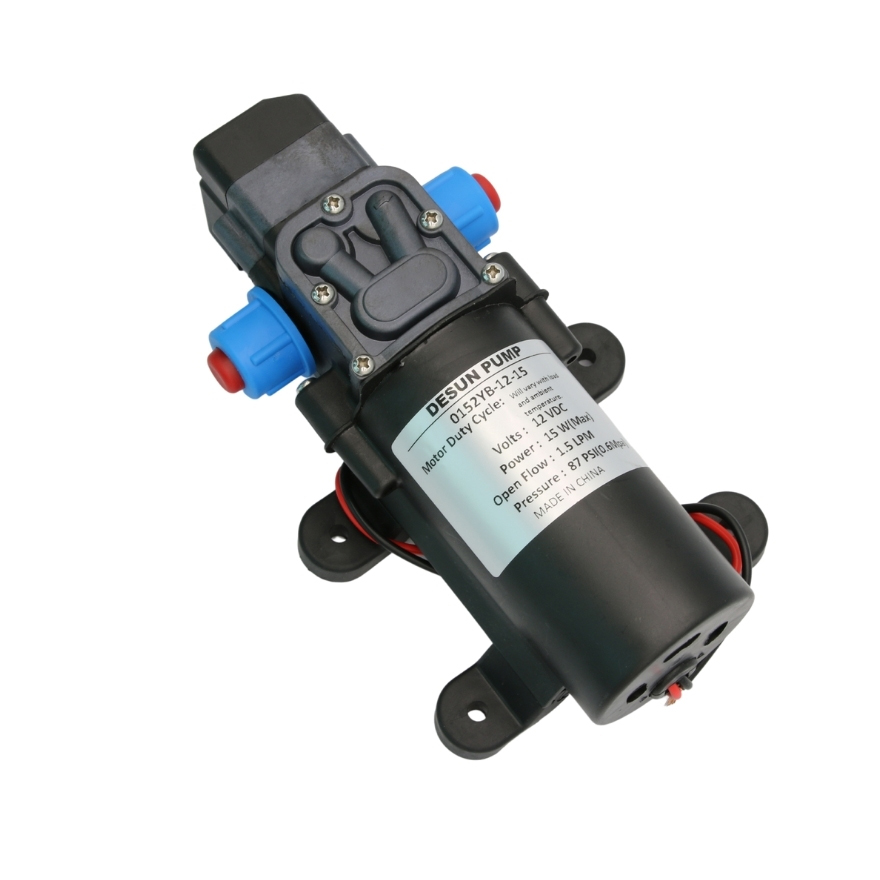

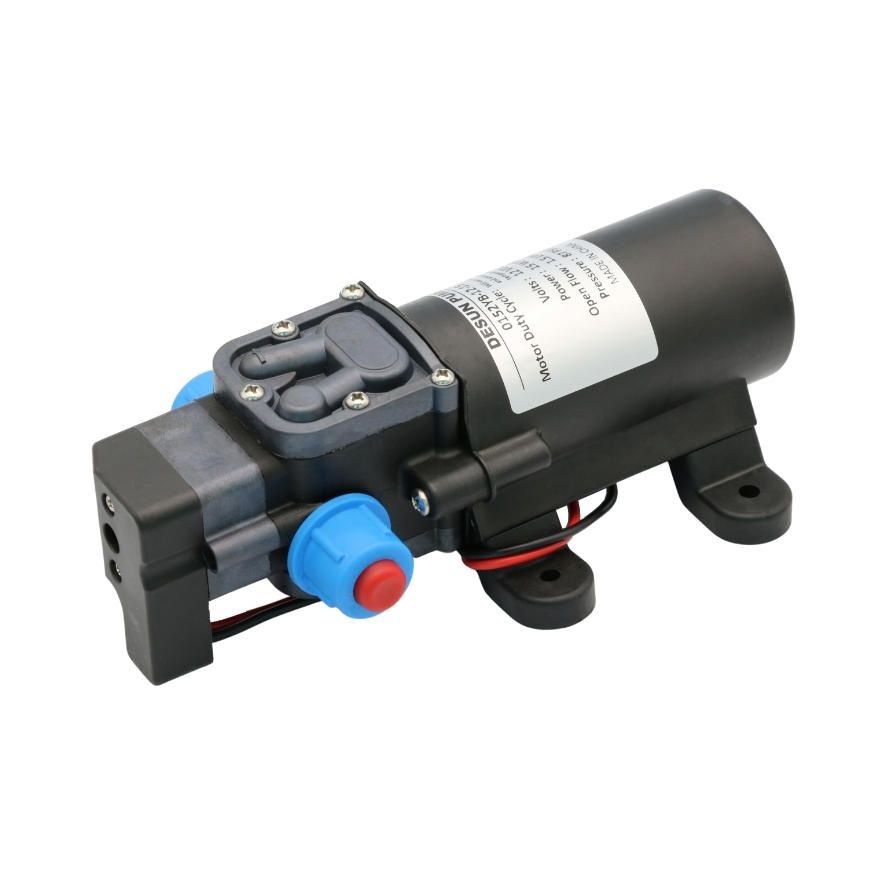

12V-30W 3L/min micro self-priming water pump
- Type:Diaphragam pump
- Maximum Flow Rate:3L/MIN
- Samples:Air pump
- Customization:Customized logo/packaging/Graphic(Min.Order:10oo Pieces)
- Shipping:Support Express-Sea freight-Land freight-Air freight
Introduce

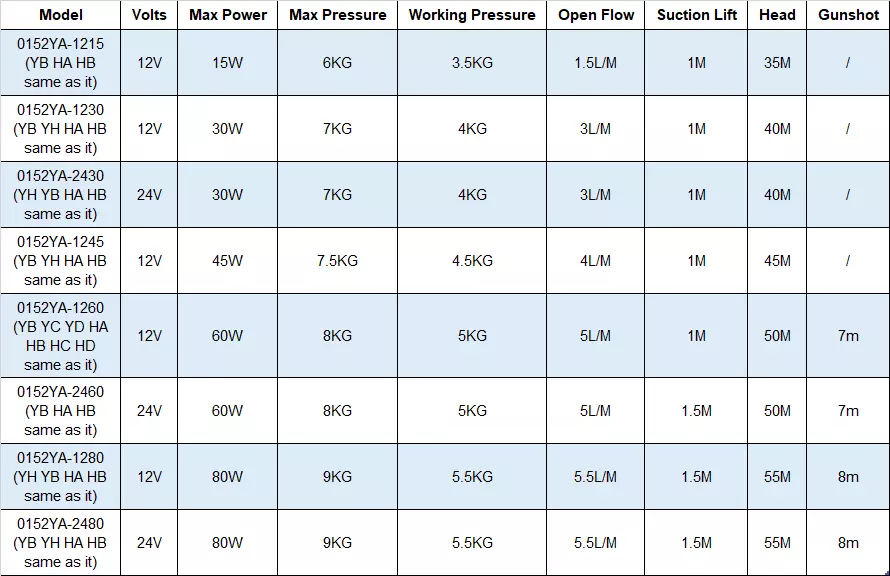

Specification
Application
Features:
When the water pump outlet is closed or blocked,the pipeline pressure increases to the set value,the power supply will be automatically cut off to stop the motor；
The pressure reduces while reopening the water outlet,then the pressure switch will automatically turn on the power supply,and the motor rerun.
Application scope:
Car washer,solar energy automatic water,water system automatic control or other fluid automatic control auxiliary equipment,etc...
- Warranty:1 year
- Customized support:OEM, ODM
- Brand Name:Desun
- Model Number:0152YB-12-30/0152YB-24-30
- Place of Origin:Guangdong, China
- Application:Other, Automotive Industry, Commercial Buildings, Developing World Water Solutions, Family Homes, Industrial Utilities, Irrigation and Agriculture, Washing and Cleaning, Water Distribution, Water Treatment Solutions
- Horsepower:Desun standard
- Power Source:Electric
- Pressure:High Pressure
- Structure:Diaphragm Pump
- Outlet Size:30cm
- Voltage:12V/24V
- Power:30W
- Theory:Micro Diaphragm Pumps
- Long life:2000 hours
- Workig temp.:100degC
- Max.Pressure:101PSI
- Suction lift:1.5m
- Weight:0.7KG
- Duty work:Work a whole day continously
- Usage:Liquid Transfer
- Certification:CE,RoHS
