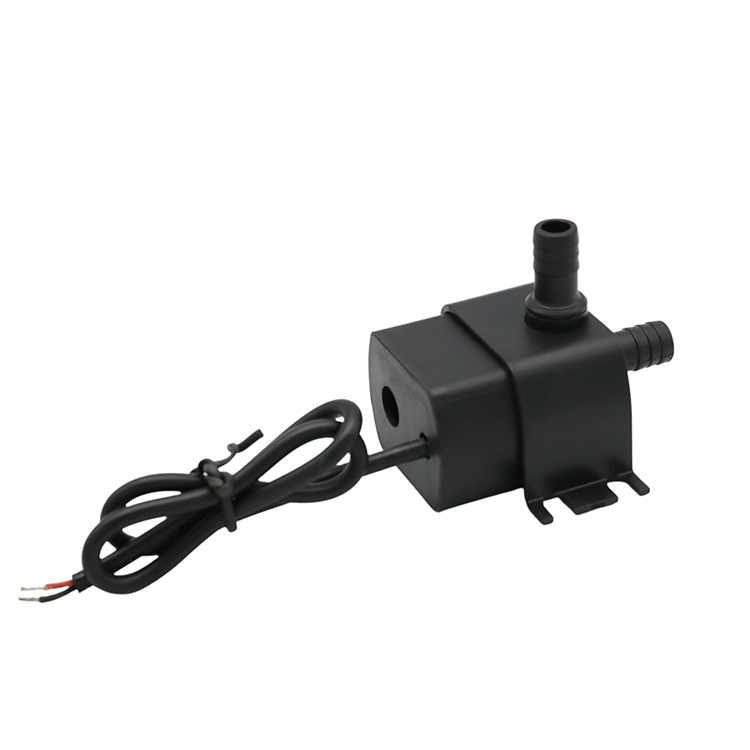

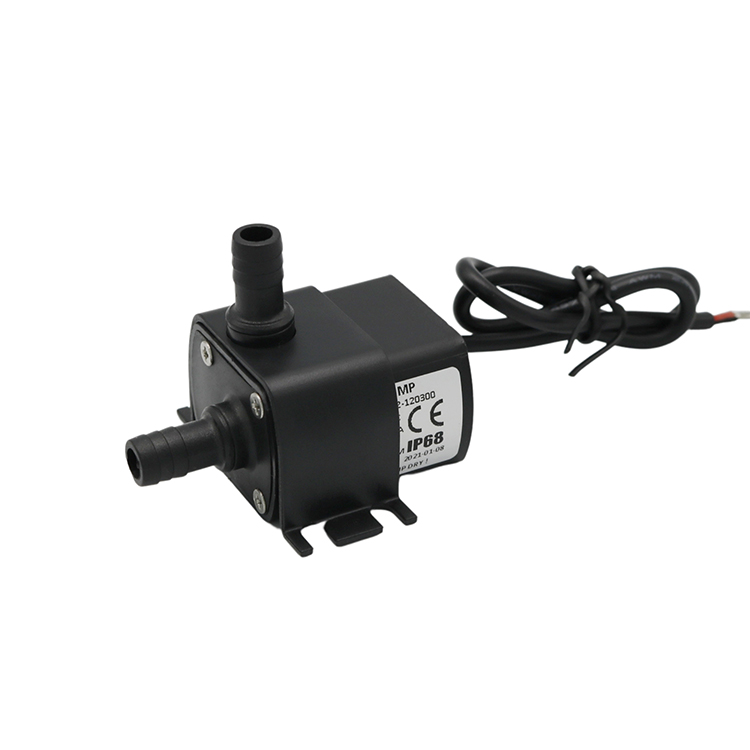

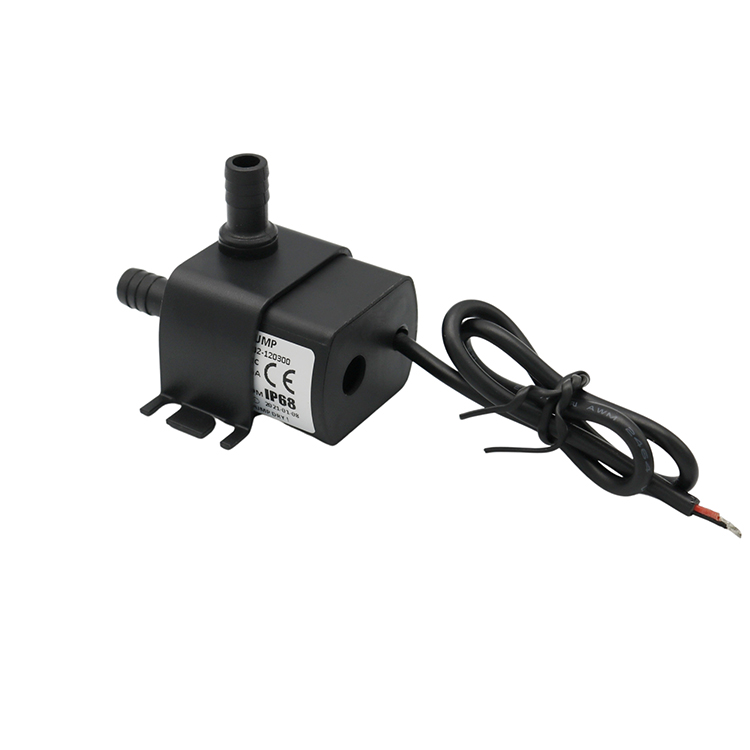

12V Brushless dc Electric Water Circulating Pump
- Small size,lightweight,easy to install;
- Epoxy potting,IP68 waterproof rating;
- Brushless motor,long life span;
- Durable permanent magnetic rotor and high density(stainless steel zirconia)optional shaft.
Introduce
Specification
Application
Product name:Water pump
Model:DS3003
Working voltage:4~ 12V
Max. flowrate:4L/min
Max. head:3M
Working temp:≤70 ℃
Material:ABS
Water proof level:IP68
Noise:≤35dB
Lifetime:20000H
Inlet diameter:10.6mm
Outlet diameter:10.6mm
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
More technical parameters
|
Model
|
Volts(V)
|
Amps(A)
|
Flow(LPM)
|
Head(M)
|
Power(W)
|
|
DS3003-0406
|
4.5
|
0.1
|
1.6
|
0.6
|
0.45
|
|
DS3003-0507
|
5
|
0.11
|
1.8
|
0.7
|
0.55
|
|
DS3003-0609
|
6
|
0.11
|
2.0
|
0.9
|
0.66
|
|
DS3003-0913
|
9
|
0.14
|
2.7
|
1.3
|
1.26
|
|
DS3003-1230
|
12
|
0.35
|
4
|
3
|
4.8
|
The technical parameters above are only a few for your reference. You can tell us what you use for, then we’ll offer you suitable pumps.

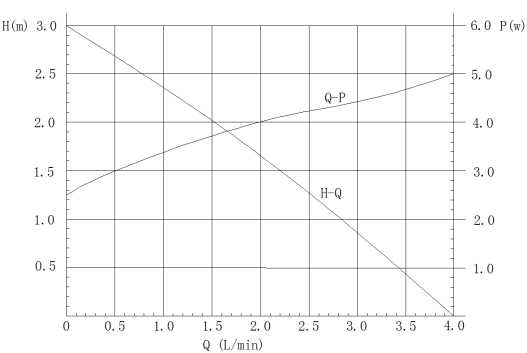

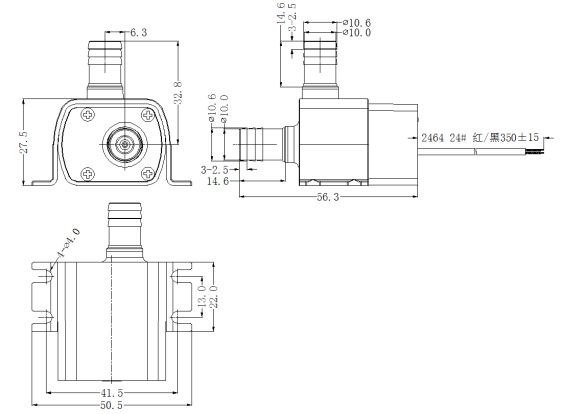

Dimensional drawing and working curve diagram
