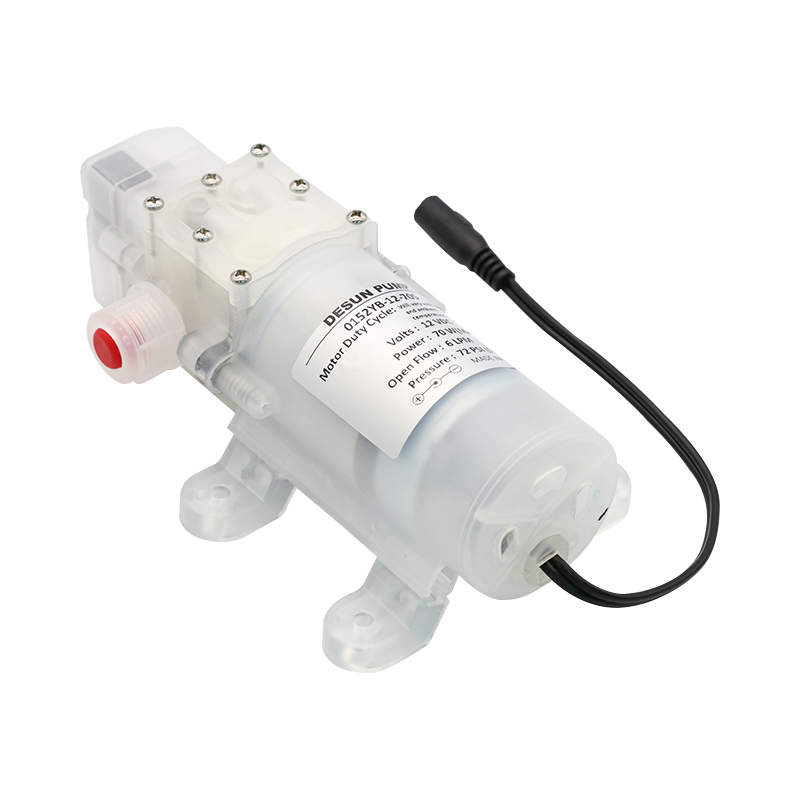

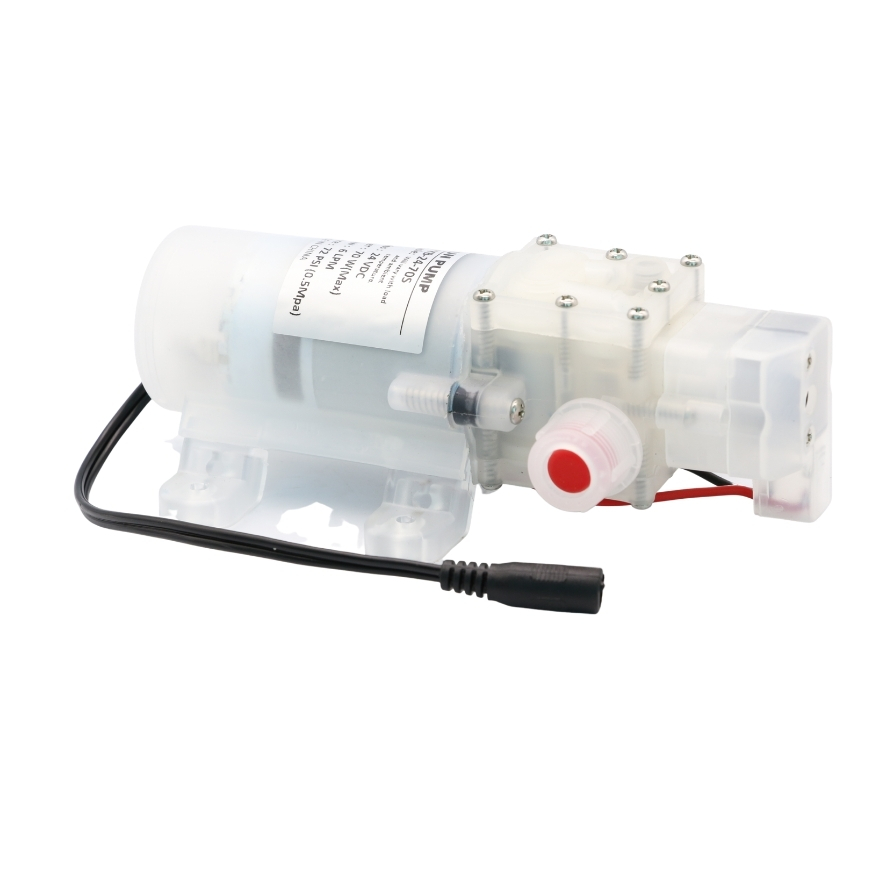

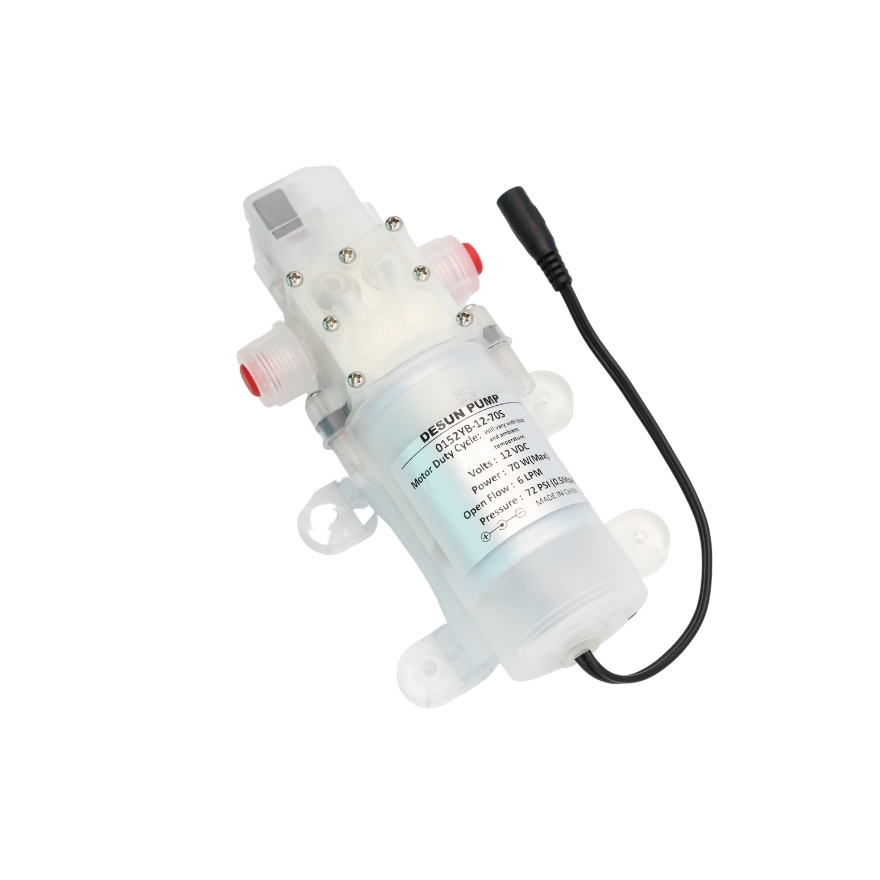

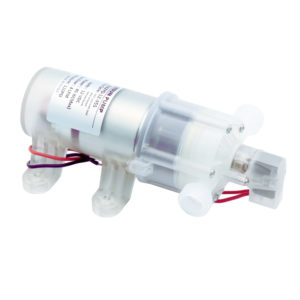

12V Self-priming Mini Booster DC Diaphragm Food-grade Water Pump
- When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the power supply will be automatically cut off to stop the motor；
-
The pressure reduces while reopening the water outlet, then the pressure switch will automatically turn on the power supply, and the motor rerun. coffee machine, water dispenser,juice machine etc…
Introduce
Specification
Application
|
Model
|
Voltage(V)
|
Max.Power(W)
|
Open Flow(L/Min)
|
Max. Pressure(Psi)
|
|
0152YB-1270S
|
12V
|
70W
|
6L/MIN
|
5Kg
|
- Warranty:1 year
- Customized support:OEM, ODM
- Brand Name:DESUN
- Model Number:0152YB-12-70S&0152YB-24-70S
- Place of Origin:Guangdong, China
- Application:Automotive Industry, Developing World Water Solutions, Family Homes, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Mining industry, temperature control, Washing and Cleaning, Water Distribution, Water Treatment Solutions
- Horsepower:Desun standard
- Power Source:Electric
- Pressure:35Psi
- Structure:Diaphragm Pump
- Cable Length:30CM
- Voltage:12V, 12vdc/24vdc
- Power:70w
- Product Name:Food grade Diaphragm Pump
- Working pressure:35Psi
- Suction lift:1.5m
- Pipe lift:20m
- Flow rate:1.5L/MIN
- working temperature:100degC
- Certification:ce
- Application:Automotive Industry, Developing World Water Solutions, Family Homes, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Mining industry, temperature control, Washing and Cleaning, Water Distribution, Water Treatment Solutions
