145PSI Booster Diaphragm Water Pump

  • Type:Diaphragam pump
  • Maximum Flow Rate:1.5L/MIN
  • Samples:Air pump:1.5L/MIN
  • Customization:Customized logo/packaging/Graphic(Min.Order: 10oo Pieces)
  • Shipping:Support Express -Sea freight – Land freight – Air freight
Introduce
Specification
Application

Features:
When the water pump outlet is closed or blocked,the pipeline pressure increases to the set value,the power supply will be automatically cut off to stop the motor;
The pressure reduces while reopening the water outlet,then the pressure switch will automatically turn on the power supply,and the motor rerun.
Application scope:
Car washer,solar energy automatic water,water system automatic control or other fluid automatic control auxiliary equipment,etc...

Warranty:1 year
Customized support:OEM, ODM
Brand Name:Desun
Model Number:0152HB-12-15P
Place of Origin:Guangdong, China
Application:Other,Developing World Water Solutions,District Energy,Family Homes,Industrial Utilities,Irrigation and Agriculture,Washing and Cleaning,Water Distribution,Water Treatment Solutions
Power Source:Electric
Pressure:8KG
Structure:Diaphragm Pump
Outlet Size:B-TYPE
Voltage:12V
Power:15W
Product name:Water pump
Working Temp.:up to 100 Degreec
suction lift:1M
Duty work:Work a whole day continously
Lifetime:2000hours
Feature:High Efficiency High Pressure
Max pressure:145PSI
Max Flow:1L/MIN
Pipe lift:80m
Certification:CE,RoHS

145PSI High Pressure Booster Diaphragm Water Pump application

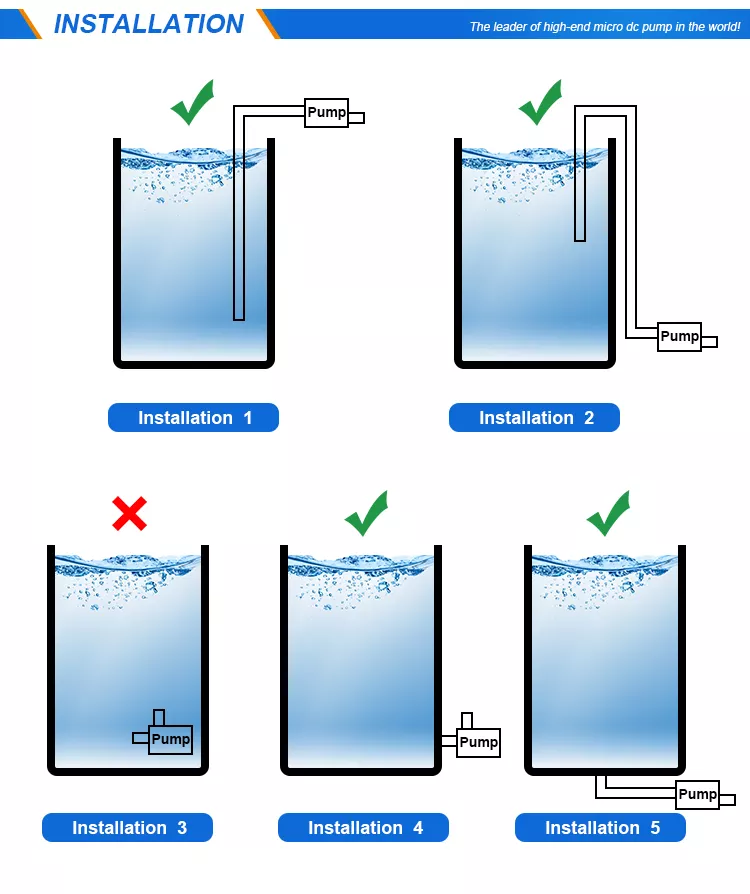

145PSI High Pressure Booster Diaphragm Water Pump installation
