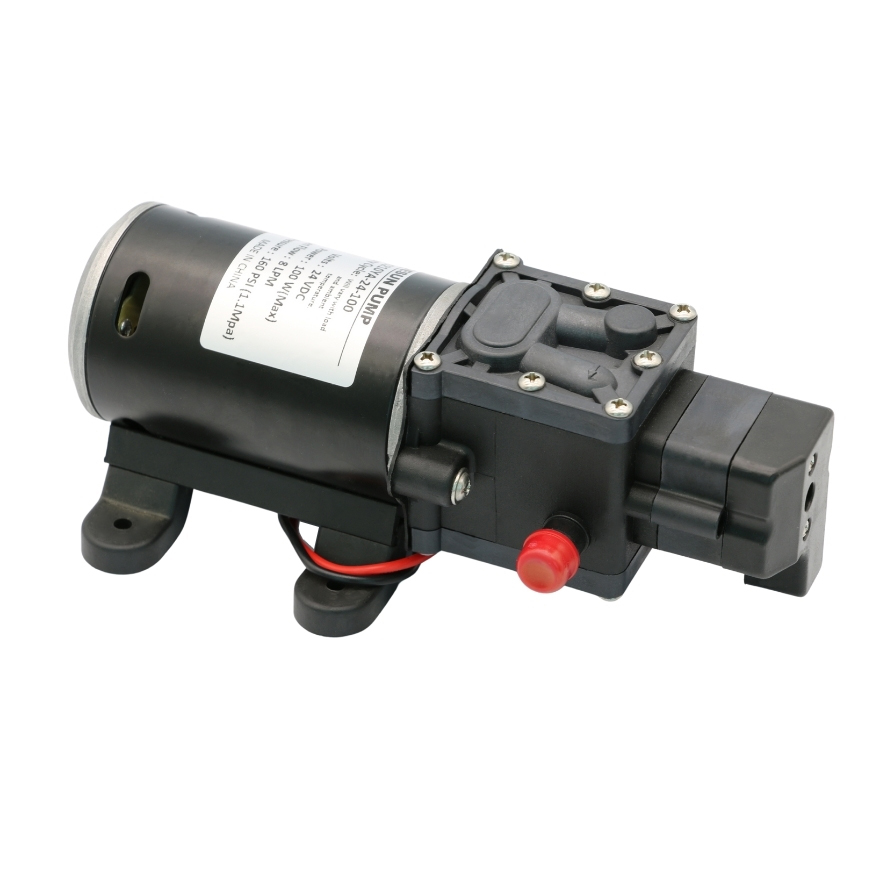

160PSI 8L/min 12V24V mini electric high pressure water pump
Type:Diaphragm pump
Open flow:8L/MIN
Max power:100W
Customization:Customized logo/packaging/Graphic(Min. Order: 1000 Pieces)
Shipping:Support Express · Sea freight · Land freight · Air freight
Introduce

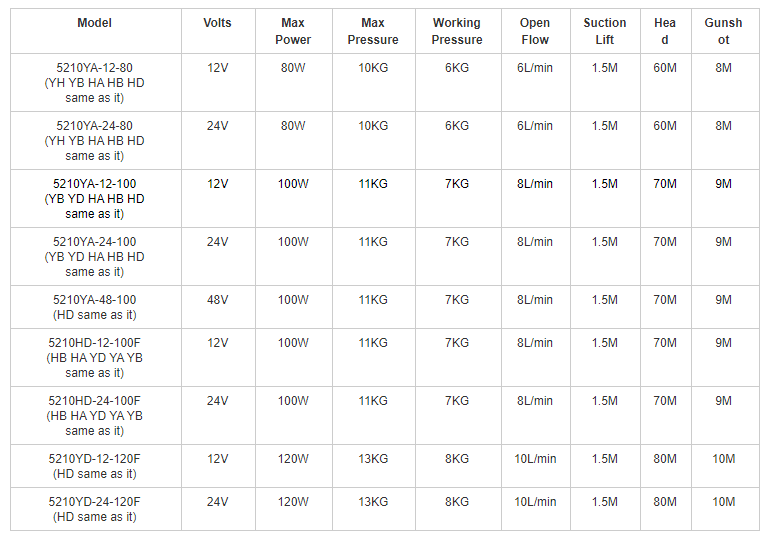

Specification
Application
TYPE Y INTELLIGENT PUMP HEAD
Features:
When the water pump outlet is closed or blocked,the pipeline pressure increases to the set value,the power supply will be automatically cut off to stop the motor；
The pressure reduces while reopening the water outlet,then the pressure switch will automatically turn on the power supply,and the motor rerun.
Application scope:
Car washer,solar energy automatic water,water system automatic control or other fluid automatic control auxiliary equipment,etc...
- Warranty:1 year
- Customized support:OEM,ODM
- Brand Name:Desun
- Model Number:5210YA-12-100,5210YA-24-100
- Place of Origin:Guangdong,China
- Application:Other,Automotive Industry,Family Homes,Industrial Utilities,Irrigation and Agriculture,Washing and Cleaning,Water Distribution,Water Treatment Solutions,Car washer,garden watering,home cleaning
- Horsepower:100w
- Power Source:Electric
- Pressure:160psi
- Structure:Diaphragm Pump
- Cable Length:30cm
- Outlet Size:10mm
- Voltage:12v/24v
- Power:100w
- Product name:DC Water Pump
- Lifetime:2000HOURS
- Workig temp.:less than 60℃
- Weight:1.06Kg
- Suction lift:1.5M
- Energy:DC electric source,Battery.
- Sample:Available
- Certification:RoHS,ce
TYPE H REFLUX PUMP HEAD
Features: When the water pump outlet is closed or blocked,the pipeline pressure increases to the set value,the reflux valve is opened,the water flow circulates in the pump cavity,and the motor will be continually running.Therefore,the water spray hole size requirements are not high,with strong adaptability.
Application scope:High-pressure spraying equipment,agricultural spraying,and so on need high-pressure fog application occasions.
