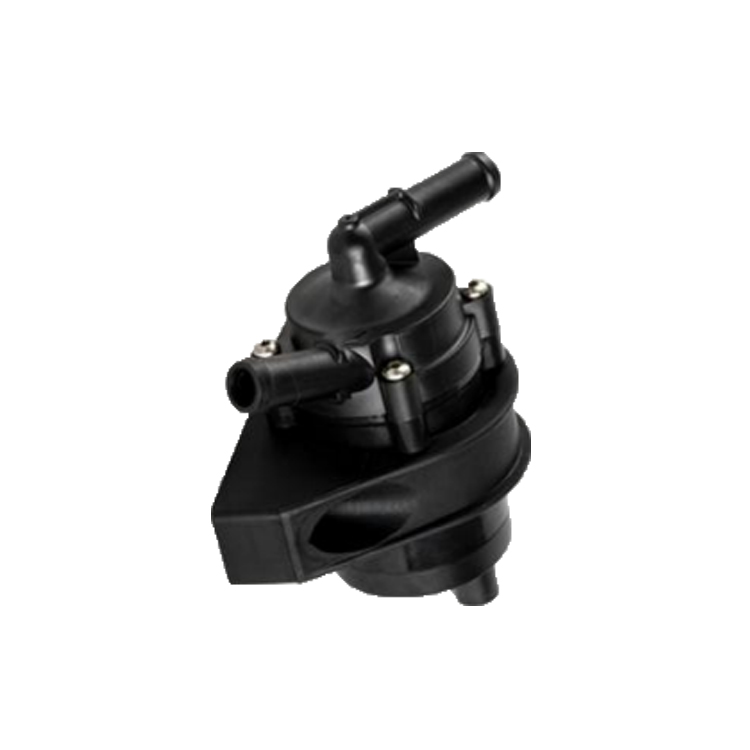

18W low noise dc water pump automotive electric water pump
- Working medium: antifreeze
- Ambient temperature: -40℃~+150℃
- Medium temperature: -40℃~+125℃,
- Rated voltage: DC12.5V Voltage range: DC8V~DC16V
- Weight: 330g
- Life: ≥20000h
- Protection level: IP67
- Protection function: overheat protection
Introduce
Specification
Application
Features
1 This is mainly used for turbocharger cooling
2 This water pump has small power and long life
3 The DC brushless motor has good reliability, high efficiency and energy saving, and low noise
4 control mode: ON / OFF
5 Over-temperature protection: When the water pump exceeds the operation range, the water pump returns to normal operation when the temperature returns to the appropriate operation range
6 reverse connection protection: positive and negative pole connection reverse water pump will automatically power off protection
2 This water pump has small power and long life
3 The DC brushless motor has good reliability, high efficiency and energy saving, and low noise
4 control mode: ON / OFF
5 Over-temperature protection: When the water pump exceeds the operation range, the water pump returns to normal operation when the temperature returns to the appropriate operation range
6 reverse connection protection: positive and negative pole connection reverse water pump will automatically power off protection
More technical parameters
|
Model
|
Volts
(V)
|
Flow
(LPM)
|
Head
(M)
|
Power
(W)
|
inlet/outlet (mm)
|
|
DSP33-2XX
|
12.5V
|
7
|
1.5
|
18
|
12
|
The technical parameters above are only a few for your reference. You can tell us what you use for, then we’ll offer you suitable pumps.

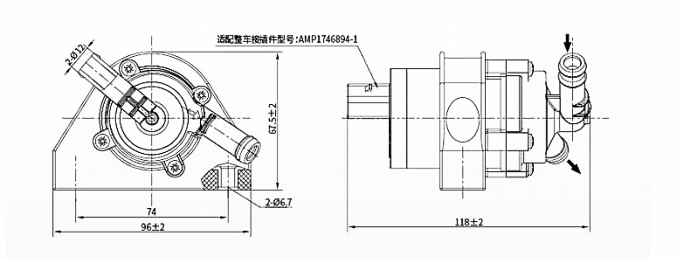

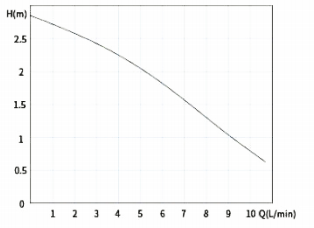

Dimensional drawing and working curve diagram
mainly used for turbocharger cooling
