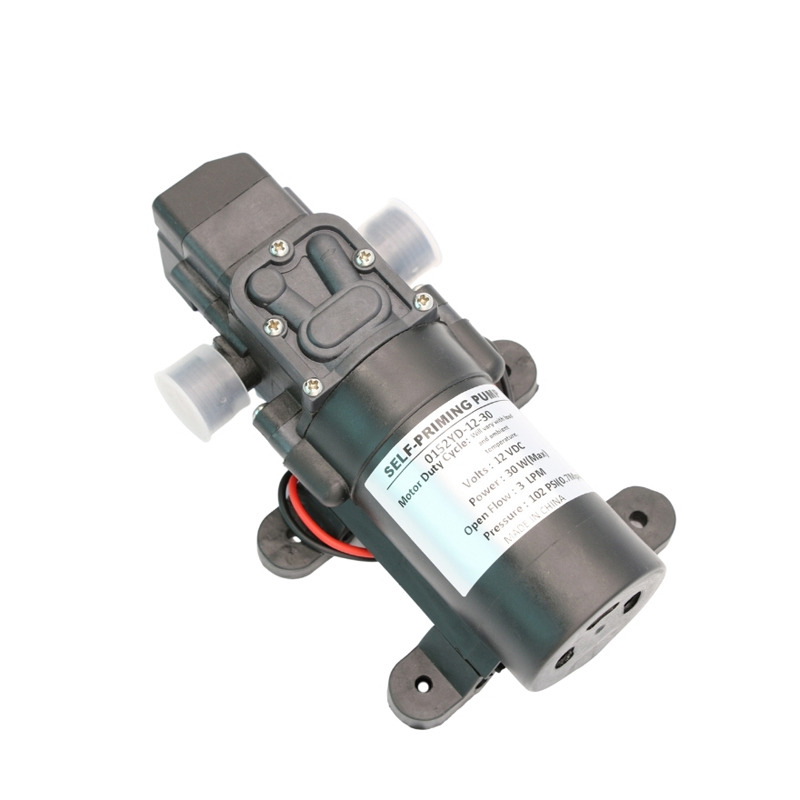

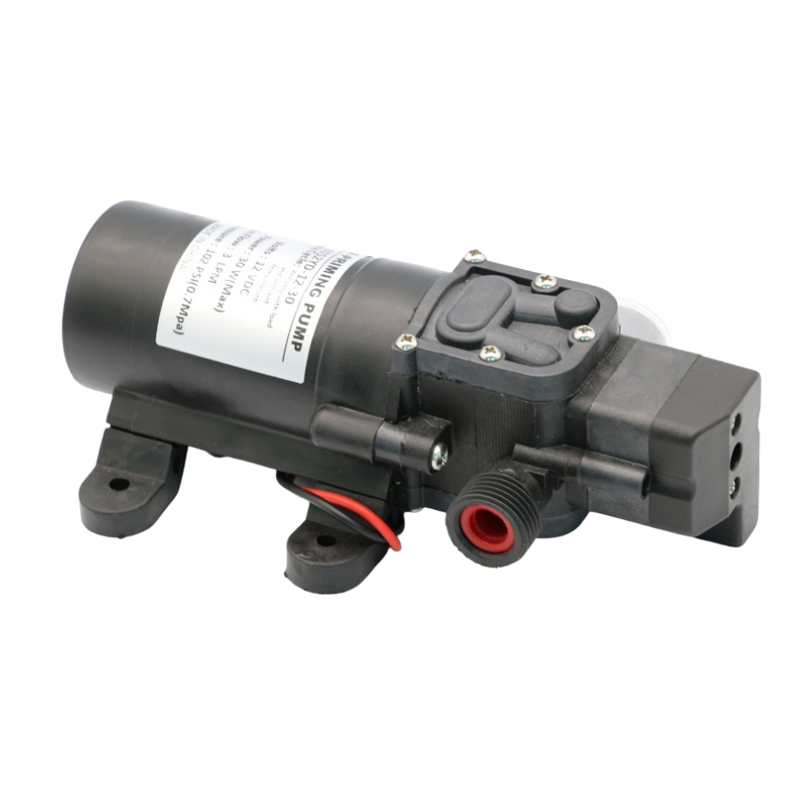

30W 3L/MIN small cheap dc electric diaphragm pump
Type:Diaphragm pump
Open flow:3L/MIN
Max power:30W
Customization:Customized logo/packaging/Graphic(Min. Order: 1000 Pieces)
Shipping:Support Express · Sea freight · Land freight · Air freight
Introduce

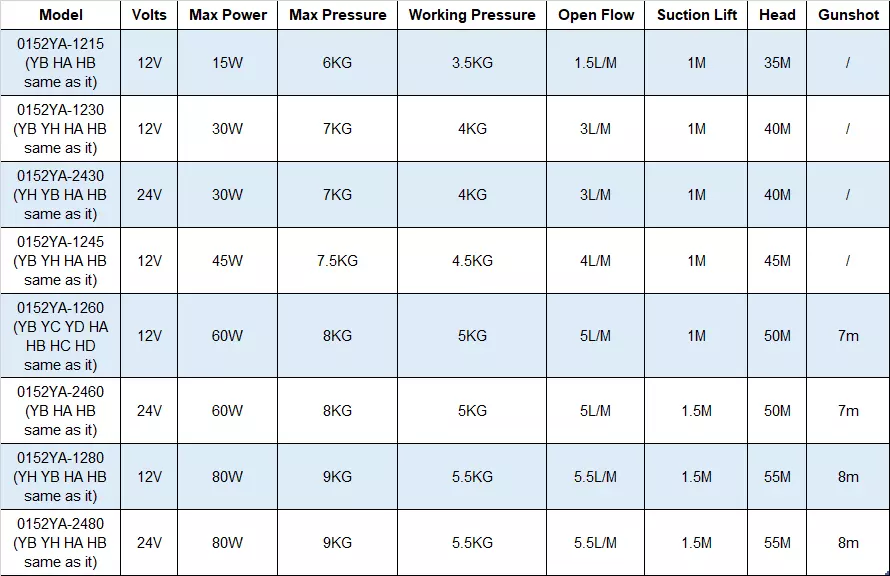

Specification
Application
Features:
When the water pump outlet is closed or blocked,the pipeline pressure increases to the set value,the power supply will be automatically cut off to stop the motor；
The pressure reduces while reopening the water outlet,then the pressure switch will automatically turn on the power supply,and the motor rerun.
Application scope:
Car washer,solar energy automatic water,water system automatic control or other fluid automatic control auxiliary equipment,etc...
- Warranty:1 year
- Customized support:OEM,ODM
- Brand Name:Desun
- Model Number:0152YD-12-30/0152YD-24-30
- Place of Origin:Guangdong,China
- Application:Other,Automotive Industry,Biofuel Industry,Commercial Buildings,Developing World Water Solutions,District Energy,Family Homes,HVAC OEM,Industrial Boilers,Industrial Utilities,Irrigation and Agriculture, Machining,Marine,Metal and Equipment Manufacturers,Mining industry,Raw Water Intake,temperature control,Washing and Cleaning,Wastewater Transport and Flood Control,wastewater treatment,Water Distribution,Water Treatment Solutions
- Horsepower:Desun standard
- Power Source:Electric
- Pressure:High Pressure,101PSI
- Structure:Diaphragm Pump
- Cable Length:30CM

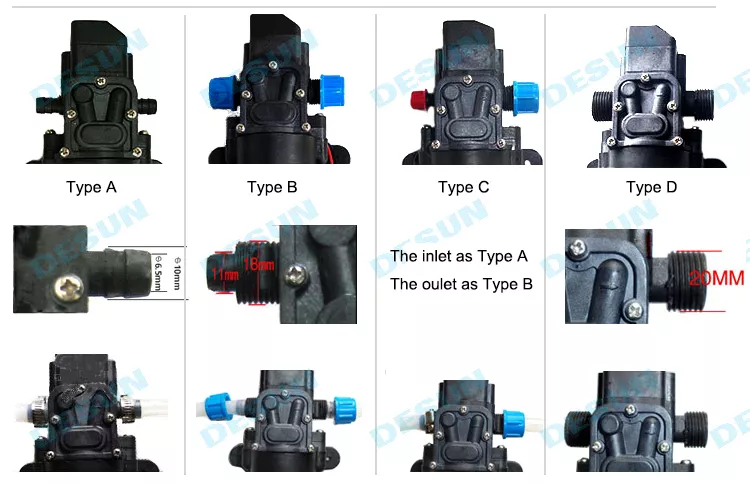

- Outlet Size:1/2″ THREAD
- Voltage:12V/24V
- Power:30W
- Product name:Micro Diaphragm Pumps
- Long life:2000HOURS
- Workig temp.:Less than 100 degC
- Suction lift:1.5M
- Duty work:Work a whole day continously
- Certification:CE,RoHS
