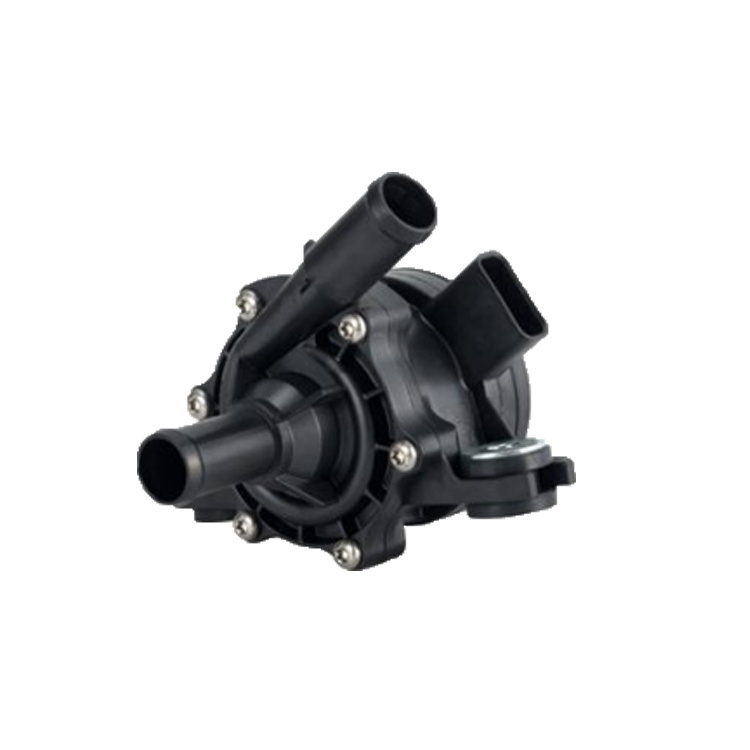

30W DC brushless electric auto water pump
- Mainly used for cooling of automotive turbochargers and intercoolers
- The brushless DC motor has good reliability,high efficiency and energy saving,low noise and long life
- Soft start protection:small starting current
- Overvoltage/undervoltage protection:When the voltage exceeds the available range,the pump will stop running
- Locked-rotor protection:When the pump is stuck due to foreign matter,the pump will stop running.
- Reverse connection protection:when the positive and negative poles are connected reversely,the pump will automatically cut off the power for protection
Introduce
Specification
Application
Technical parameters
Working medium:antifreeze
Ambient temperature:-40℃~+100℃
Medium temperature:-40℃~+100℃,the limit temperature is 110℃
Rated voltage: DC12V
Voltage range:DC8V-16V
Weight:370g
Life: ≥12000h
Protection level:IP67
Protection function:overvoltage/undervoltage,locked rotor,reverse connection,overcurrent,idling
Related performance parameters
|
Model
|
Power
(W)
|
Flow
(LPH)
|
Head
(M)
|
Inlet
(mm)
|
Outlet
(mm)
|
|
DSP93-3
|
30
|
600
|
4 |
17
|
17
|
The technical parameters above are only a few for your reference.You can tell us what you use for,then we’ll offer you suitable pumps.

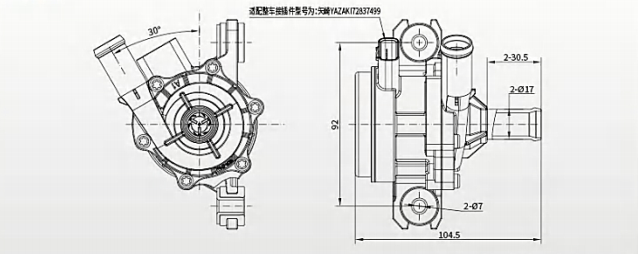

Dimensional drawing and working curve diagram

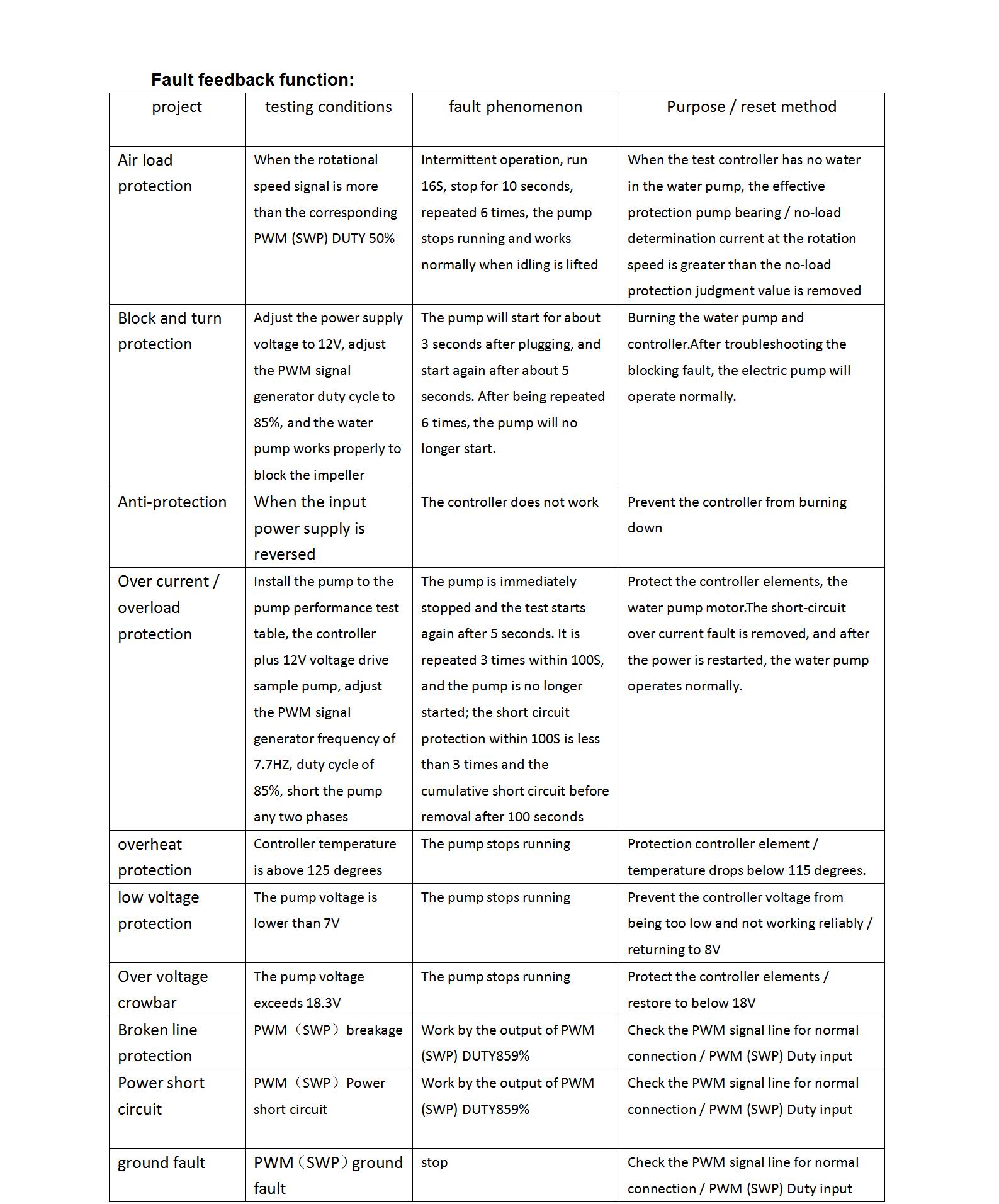

Fault feedback function

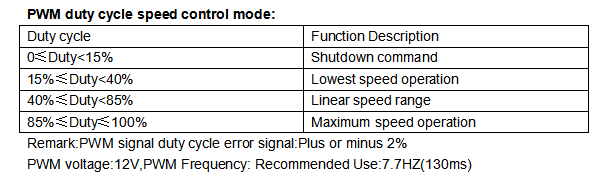

PWM speed control function
Mainly used for cooling of automotive turbochargers and intercoolers
