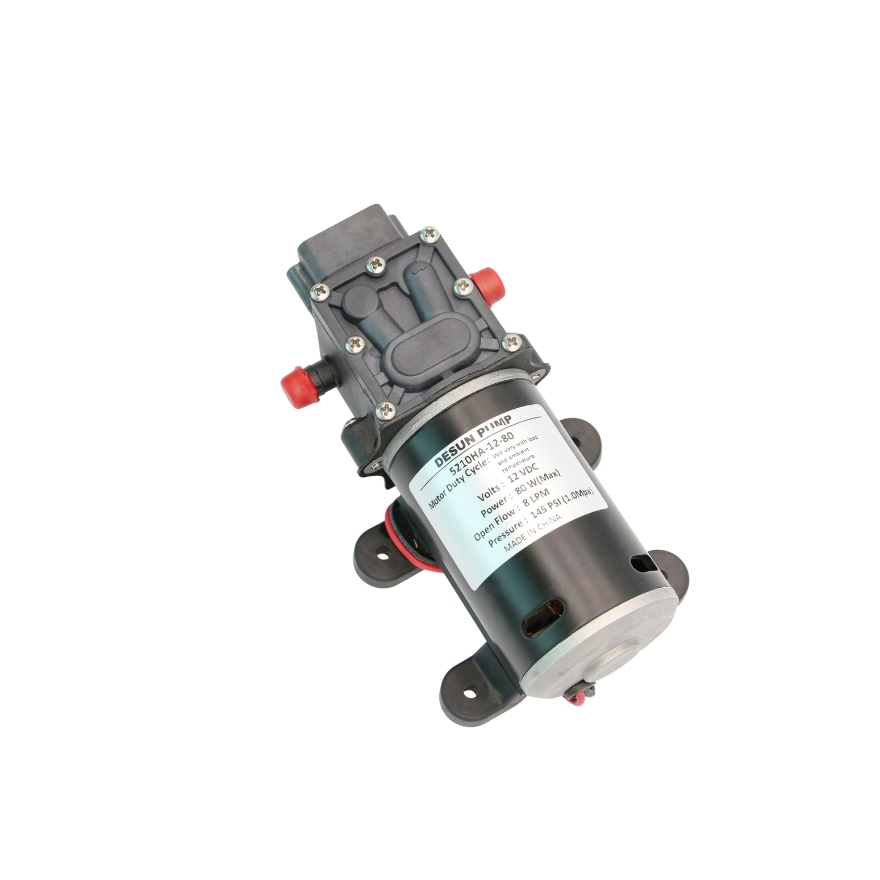

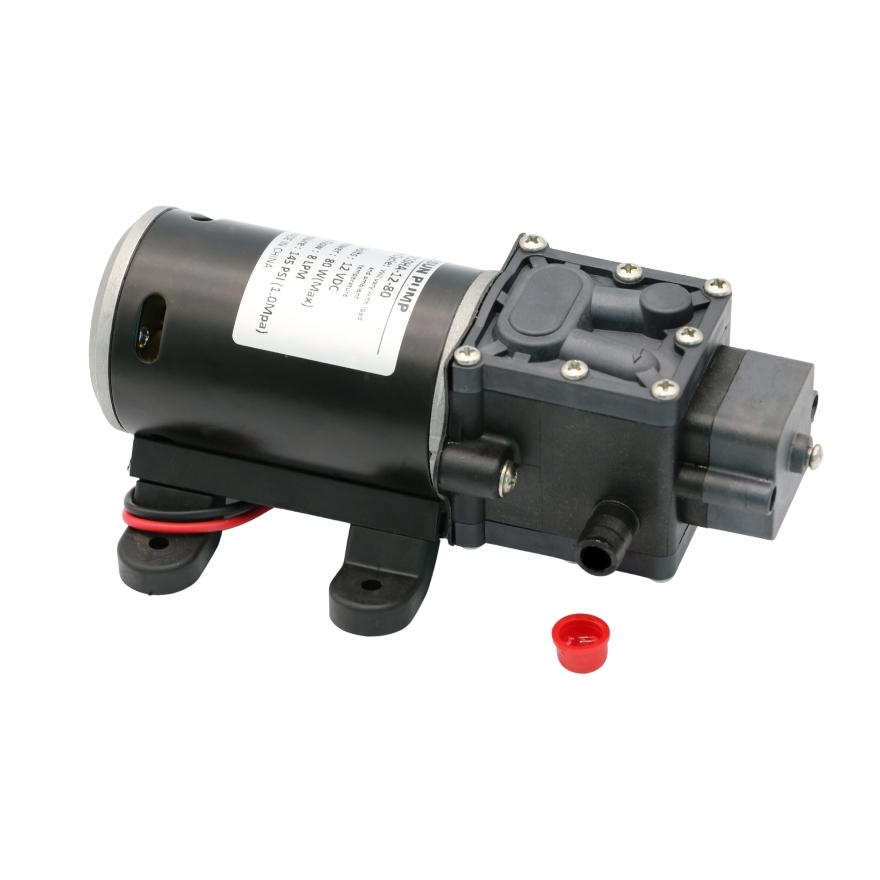

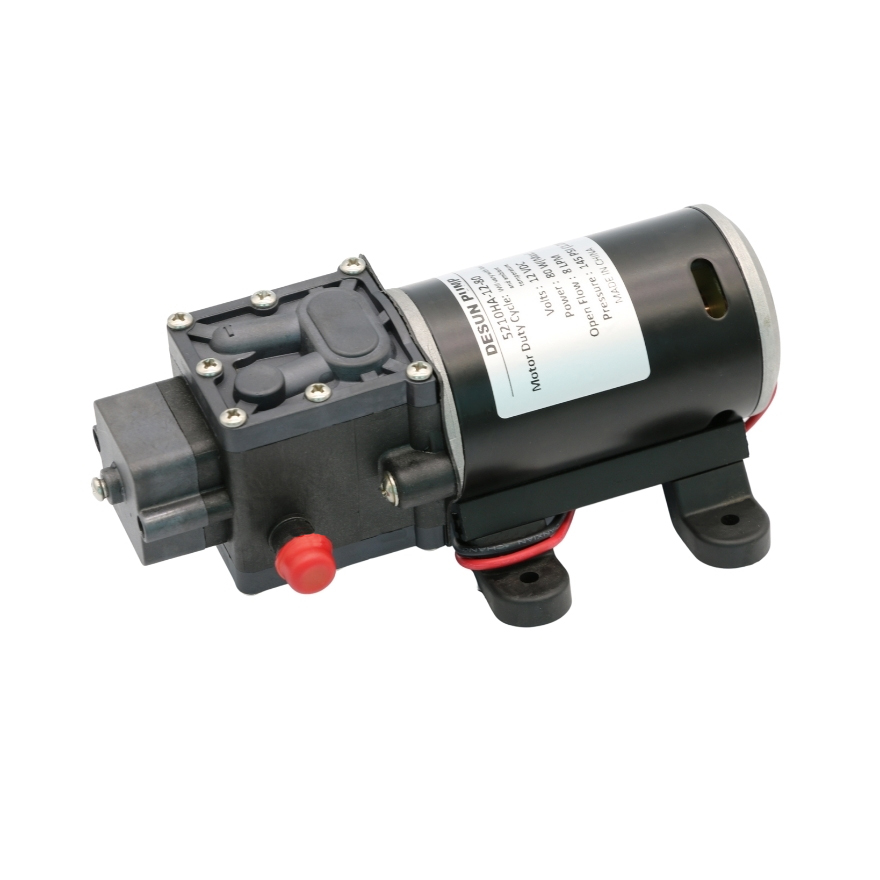

6LPM High pressure DC electric diaphragm pump
Type:Diaphragam pump
Maximum Flow Rate:6L/MIN
Samples:Air pump:6L/MIN
Customization:Customized logo/packaging/Graphic(Min.Order: 10oo Pieces)
Shipping:Support Express-Sea freight-Land freight-Air freight
Introduce
Specification
Application
Features: When the water pump outlet is closed or blocked, the pipeline pressure increases to the set value, the reflux valve is opened, the water flow circulates in the pump cavity, and the motor will be continually running. Therefore, the water spray hole size requirements are not high, with strong adaptability.
Application scope: High-pressure spraying equipment, agricultural spraying, and so on need high-pressure fog application occasions.

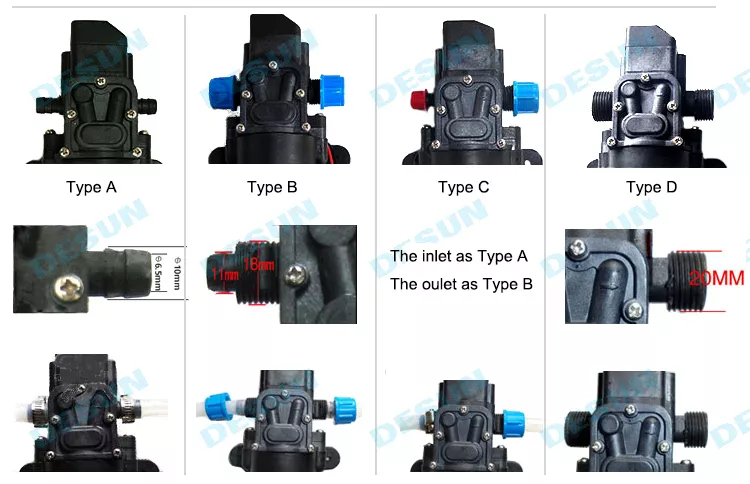

The pump's head type and the interface can be freely replaced, please contact us for the details.
- Warranty:1 year
- Customized support:OEM, ODM
- Brand Name:Desun
- Model Number:5210HA-12-80, 5210HA-24-80
- Place of Origin:Guangdong, China
- Application:Other, Automotive Industry, Commercial Buildings, Family Homes, Industrial Utilities, Irrigation and Agriculture, Water Distribution, Water Treatment Solutions, Household cleaning pump, etc…
- Horsepower:80W
- Power Source:Electric
- Pressure:High Pressure, 145psi
- Structure:Diaphragm Pump
- Cable Length:30CM
- Voltage:12V/24V
- Power:80W
- Lifetime:2000HOURS
- Working tem.:≤60℃
- Suction lift:1.5M
- Weight:1.06Kg
- Duty work:Work a whole day continously
- Energy:DC electric source,Battery.
- Certification:CE,RoHS
Mainly used for High – pressure fog – making, long – distance or mountain road trucks brake water cooling, pumping wine, milk, soy milk, drinking, cooking oil, and other liquids, Pumping gasoline, diesel, viscous liquids; Spray irrigation and water spraying, cleaning car, air contioner, vacuum cleaner， water purifier, etc…
We supply Full Customization Service, please contact us for the details.
