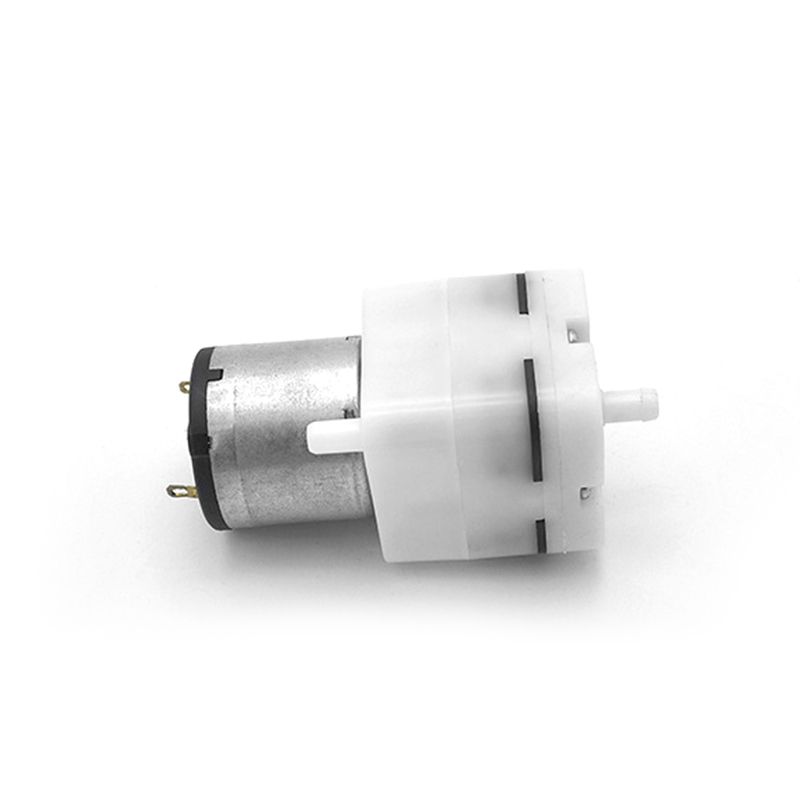

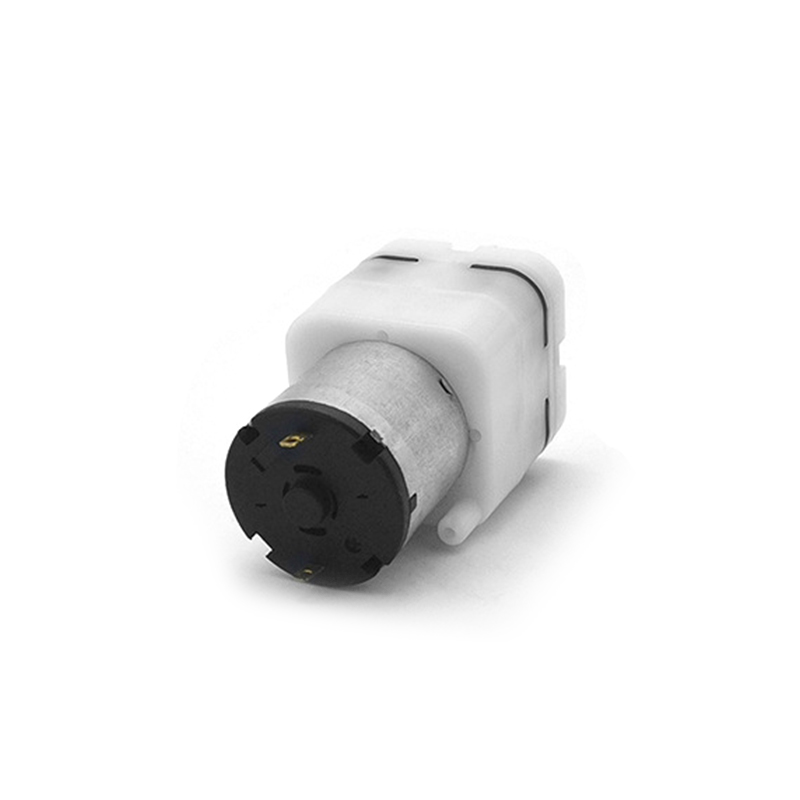

6v 12v Diaphragm Vacuum Pumps Portable Electric Mini Air Pump
- Life:Expected life span is over 500 Hours.
- 2. One Year warranty.
- 3. Duty work:The pump can sustain heavy-duty work for a whole day.Continuous operation.
- 4. Working conditions:Applying to indoor and outdoor under temperature 45 deg C.
- 5. Working temperature:5~45°C .
- 6. One week for samples,two week for bulk order.
- 7. Factory price+high quality+good after-sales service
Introduce
Specification
Application
- Model Number:DSP528-XB
- Power Source:Electric
- Pressure:Low Pressure
- Structure:Vacuum Pump
- Outlet Size:6.1mm
- Voltage:3.7V/4.5V/6V/12V/24V
- Power:7.2W
- Product name:Vacuum Pump
- Lifetime:>= 500 Hours
- Noise:≤65dB (30cm away)
- Duty work:Work a whole day continously
- Charateristic:Light weight,no spark,etc.
- Vacuum flow:5 - 10 LPM
- Maximum Vacuum:=< - 55Kpa (-450mmHg)
- Rated voltage:3.7V/4.5V/6V/12V/24V
- Maximum Pressure:>=100 Kpa (750mmHg)
Related Parameters (The technical specification only for reference, it can be customized)
|
Voltage(V)
|
Power
|
Rated Current
|
tap O.D.
|
Vacuum flow
|
Maximum Vacuum
|
Maximum Pressure
|
|
DC 3.7V
|
7.2 W
|
≤ 2000mA
|
Dia 6.1mm
|
5.0 – 10.0 LPM
|
≤ -55 Kpa
|
≥ 60 Kpa
|
|
DC 4.5V
|
7.2 W
|
≤ 1600mA
|
Dia 6.1mm
|
5.0 – 10.0 LPM
|
≤ -55 Kpa
|
≥ 60 Kpa
|
|
DC 6V
|
7.2 W
|
≤ 1200mA
|
Dia 6.1mm
|
5.0 – 10.0 LPM
|
≤ -55 Kpa
|
≥ 60 Kpa
|
|
DC 12V
|
7.2 W
|
≤ 600mA
|
Dia 6.1mm
|
5.0 – 10.0 LPM
|
≤ -55 Kpa
|
≥ 60 Kpa
|
|
DC 24V
|
7.2 W
|
≤ 300mA
|
Dia 6.1mm
|
5.0 – 10.0 LPM
|
≤ -55 Kpa
|
≥ 60 Kpa
|
Application :
1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots,vacuum cleaners, smart home systems.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY,etc.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY,etc.
We supply Full Customization Service, please contact us for the details.
