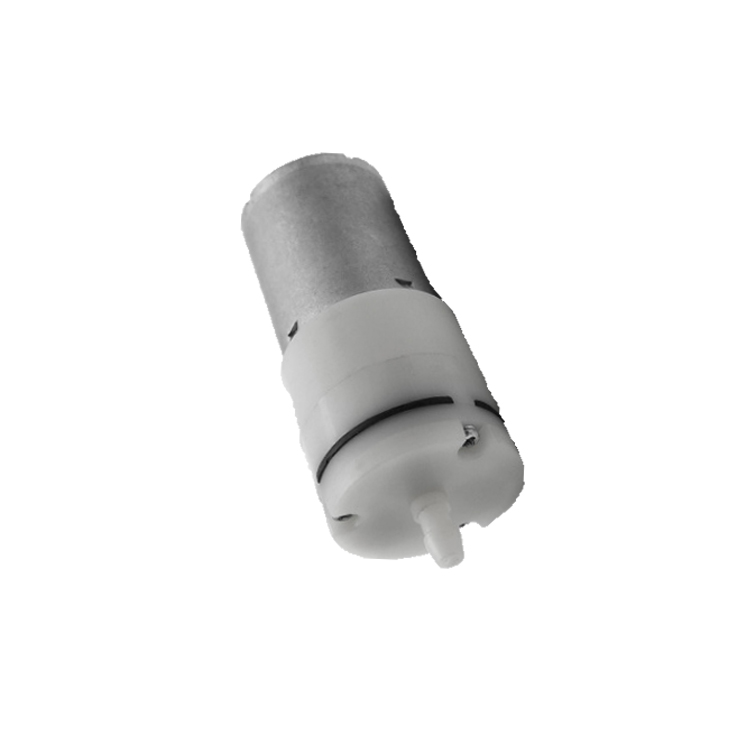

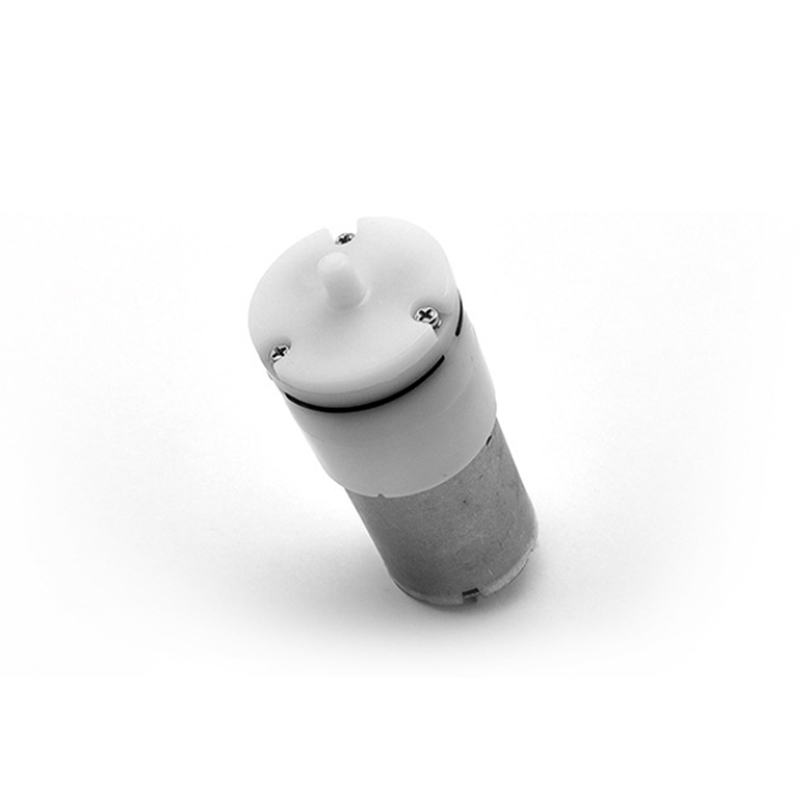

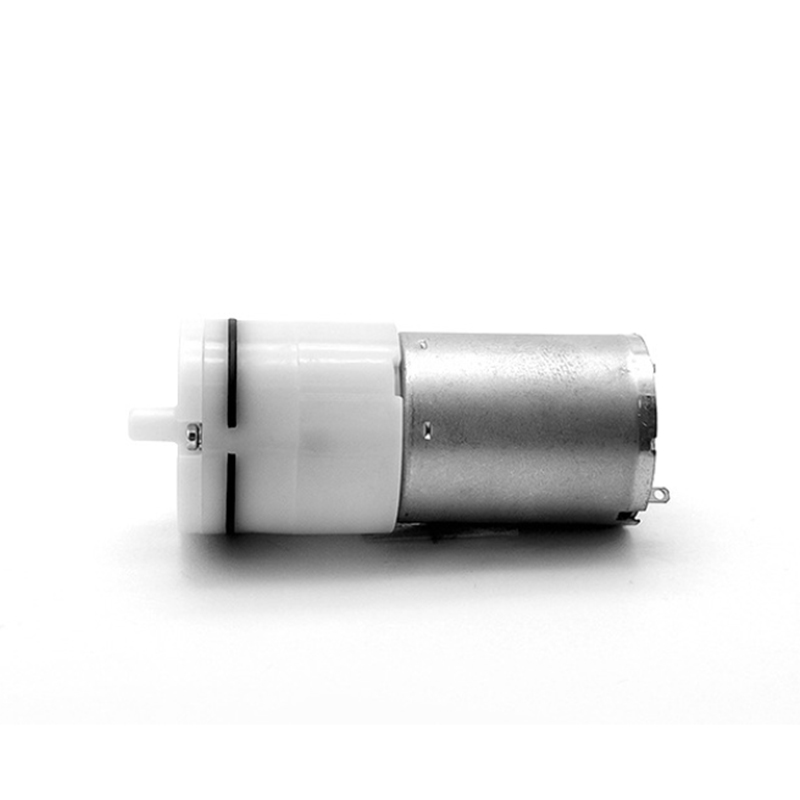

6V 9V Water Dispensers Diaphragm DC Miniature Air Pump
-
Type:Circulating Pumps,Air pump
- Samples:Air pump
- Customization:Customized logo/packaging/Graphic(Min. Order: 1000 Pieces)
- Shipping:Support Express · Sea freight · Land freight · Air freight
Introduce
Specification
Application
Features
- Life: Expected life span is over 50,000 times.
- One Year warranty.
- Duty work:The pump can sustain heavy-duty work for a whole day. Continuous operation.
- Working conditions:Applying to indoor and outdoor under temperature 45 deg C.
- Working temperature:5~45°C.
- One week for samples,two weeks for bulk order.
- Factory price+high quality+good after-sales service.
Related Parameters (The technical specification only for reference, it can be customized)
Model Number:DSP370-XD
|
Voltage(V)
|
Power
|
Rated Current
|
Air tap O.D.
|
Air flow
|
Maximum Pressure
|
|
DC3V
|
2.4W
|
≤ 800mA
|
Dia 5.6mm
|
0.5-2.5 LPM
|
≥60KPa
|
|
DC 6V
|
2.4W
|
≤ 400mA
|
Dia 5.6mm
|
0.5-2.5 LPM
|
≥60KPa
|
|
DC 9V
|
2.4W
|
≤ 260mA
|
Dia 5.6mm
|
0.5-2.5 LPM
|
≥60KPa
|
|
DC 12V
|
2.4W
|
≤ 200mA
|
Dia 5.6mm
|
0.5-2.5 LPM
|
≥60KPa
|
|
DC 24V
|
2.4W
|
≤ 100mA
|
Dia 5.6mm
|
0.5-2.5 LPM
|
≥60KPa
|
Application:
- Household applications:white goods,small appliances,fans,electric screens,automatic window opening,floor cleaning robots,vacuum cleaners,smart home systems.
- Medical applications:medical pumps,sphygmomanometers,gurgical tools,medical agitators,centrifuges.
- Power tools:air pump,water pump,vacuum pump,oxygen generator,electric drill,electric screwdriver.Commercial equipment:printers,copiers,shredders,projectors,scanners,cash registers,vending machines.Personal care:hair
- dryer,electric shaver,beauty product,hair curler,steam hair straightener (water jet straight hai outlet).
- Health field:massager,adult toy.
- Security field:surveillance system,camera,safe.
- Industrial applications:robotic arms,printing equipment, automation equipment.
- Other applications:electronic door locks,smart switches,robots,toys,smart cars,boats,intelligent wear,electronics,DIY,etc.
- The application scene pictures are just for your reference. We supply Full Customization Service, please contact us for the details.
