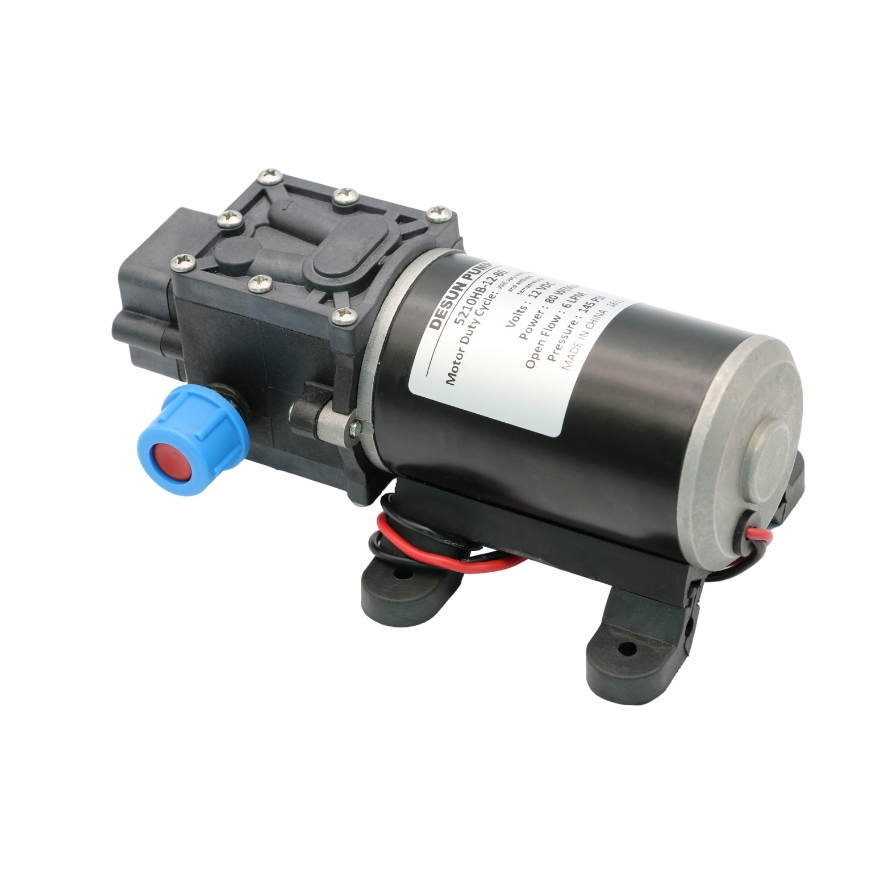

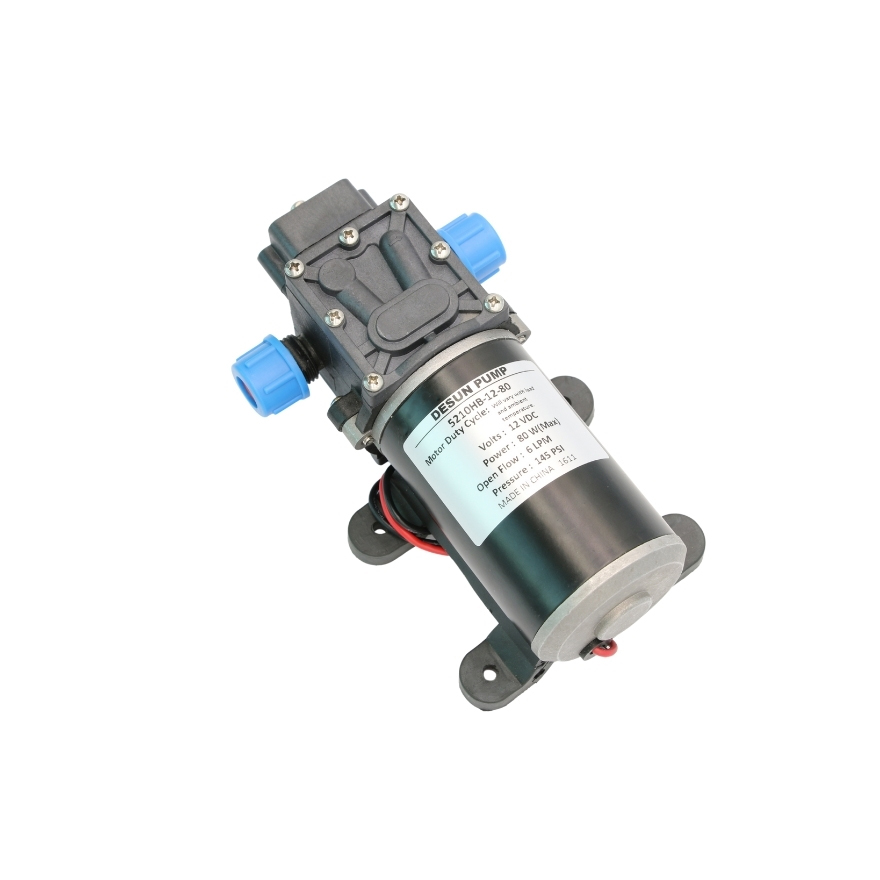

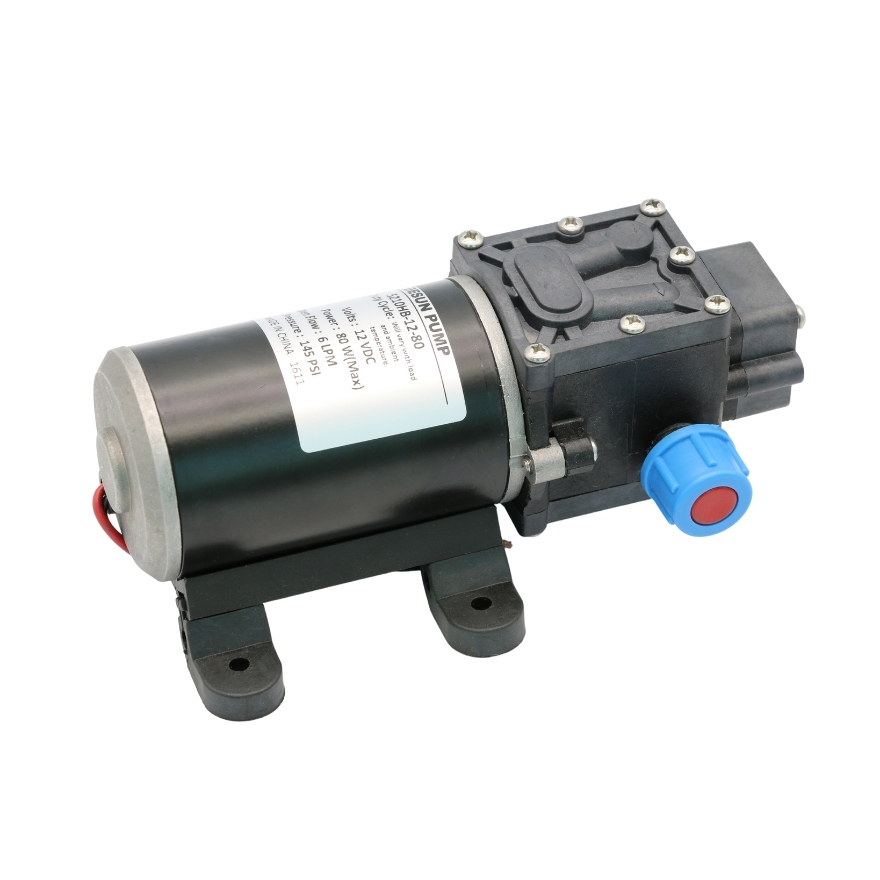

80W 6L High pressure micro dc self-priming diaphragm pump
Type:Diaphragm pump
Open flow:6L/MIN
Max power:80W
Customization:Customized logo/packaging/Graphic(Min. Order: 1000 Pieces)
Shipping:Support Express · Sea freight · Land freight · Air freight
TYPE H REFLUX PUMP HEAD
Features: When the water pump outlet is closed or blocked,the pipeline pressure increases to the set value,the reflux valve is opened,the water flow circulates in the pump cavity,and the motor will be continually running.Therefore,the water spray hole size requirements are not high,with strong adaptability.
Application scope:High-pressure spraying equipment,agricultural spraying,and so on need high-pressure fog application occasions.
- Warranty:1 year
- Customized support:OEM,ODM
- Brand Name:Desun
- Model Number:5210HB-12-80, 5210HB-24-80
- Place of Origin:Guangdong, China
- Application:Other,Family Homes,Industrial Utilities,Irrigation and Agriculture,Machining,Water Distribution,Water Treatment Solutions
- Horsepower:80w
- Power Source:Electric
- Pressure:145psi
- Structure:Diaphragm Pump
- Cable Length:30cm
- Outlet Size:M18
- Voltage:12V/24V
- Power:80W
- Product name:Micro dc electric water pump
- Theory:Diaphragm Pumps
- Standard or Nonstandard:Standard
- Lifetime:2000HOURS
- Workig temp.:less than 60℃
- Suction lift:1.5M
- Weight:1.06kg
- Heavy duty work:Work a whole day continously
- Certification:CE,RoHS
Mainly used for High-pressure fog-making, long – distance or mountain road trucks brake water cooling,pumping wine,milk,soy milk,drinking,cooking oil,and other liquids,Pumping gasoline,diesel,viscous liquids;Spray irrigation and water spraying,cleaning car,air contioner,vacuum cleaner,water purifier,etc…
We supply Full Customization Service,please contact us for the details.
