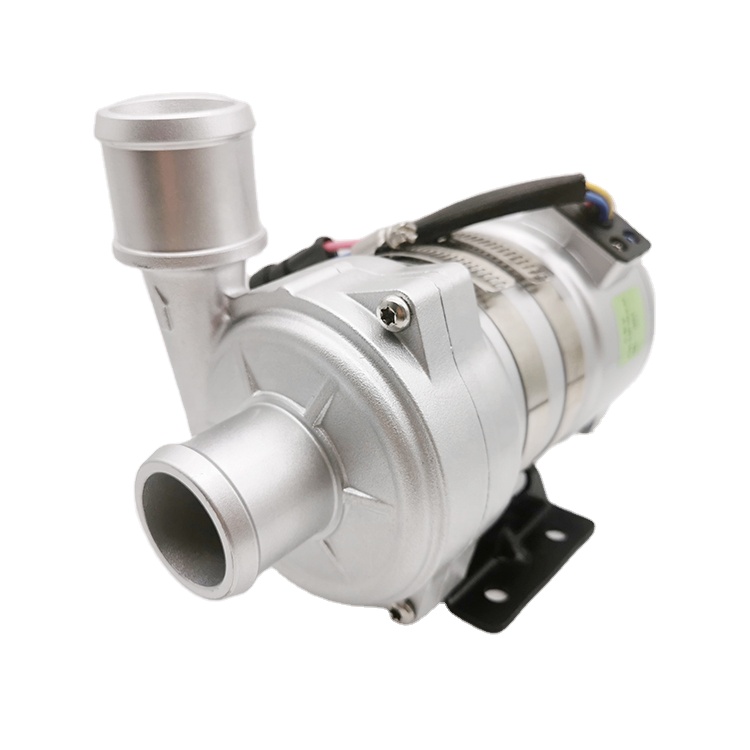

Brushless dc large flow Electronic auto Water Pump
- Working medium: antifreeze
- Ambient temperature: -40℃~+85℃
- Medium temperature: -40℃~+85℃, the limit temperature is 105℃
- Rated voltage: DC24V
- Voltage range: DC18V~DC32V
- Weight: 2kg (without base)
- Life: ≥20000h
- Protection level: IP68
- Protection function: overvoltage/undervoltage, locked rotor, reverse connection, overcurrent, idling
Introduce
Specification
Application
- Mainly used in the cooling system of new energy vehicles
- This water pump has a large flow rate, which is especially suitable for cooling systems with large flow requirements
- The brushless DC motor has good reliability, high efficiency and energy saving, low noise and long life
- Soft start protection: small starting curren
- Overvoltage/undervoltage protection: When the voltage exceeds the available range,the pump will stop running, and when the voltage returns to the proper voltage range, the pump will resume normal operation.
- Locked-rotor protection: When the pump is stuck due to foreign matter, the pump will stop running. After the foreign matter is removed, the pump will resume normal operation.
- Reverse connection protection: when the positive and negative poles are connected reversely, the pump will automatically cut off the power for protection
Related performance parameters
|
Model
|
Power
(W)
|
Flow
(LPH)
|
Head
(M)
|
Inlet
(mm)
|
Outlet
(mm)
|
|
DSP43-3XX
|
250
|
6000
|
8
|
38
|
38
|
|
200
|
6000
|
6
|
38
|
38
|
|
|
130
|
5000
|
5
|
38
|
38
|
The technical parameters above are only a few for your reference. You can tell us what you use for, then we’ll offer you suitable pumps.

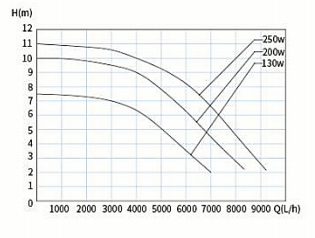

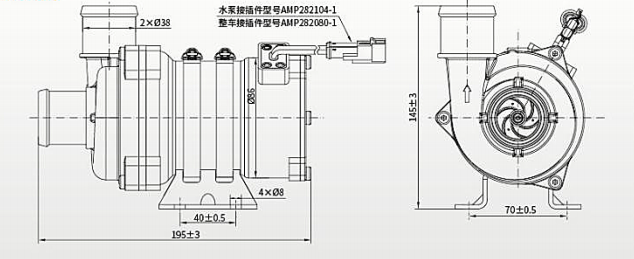

Dimensional drawing and working curve diagram
Mainly used in the cooling system of new energy vehicles
