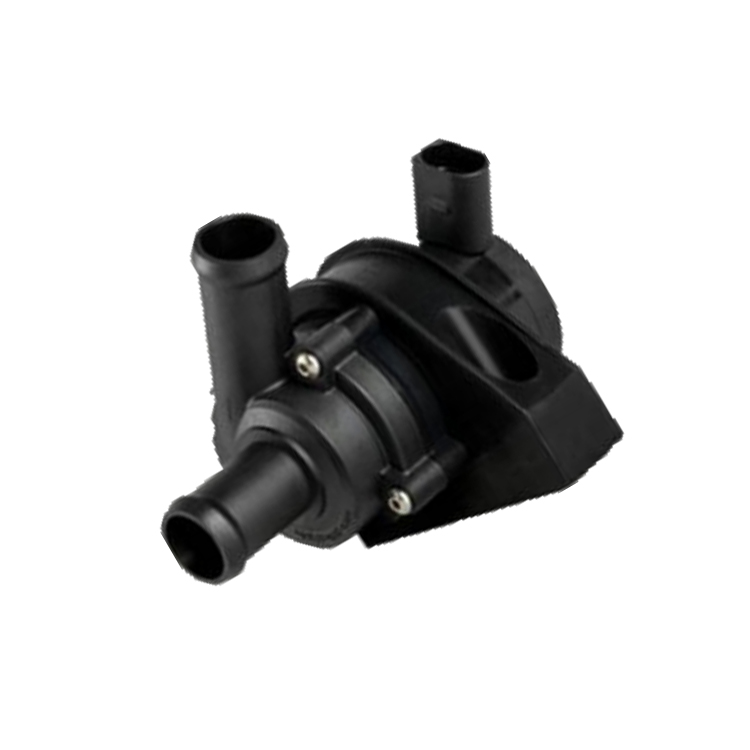

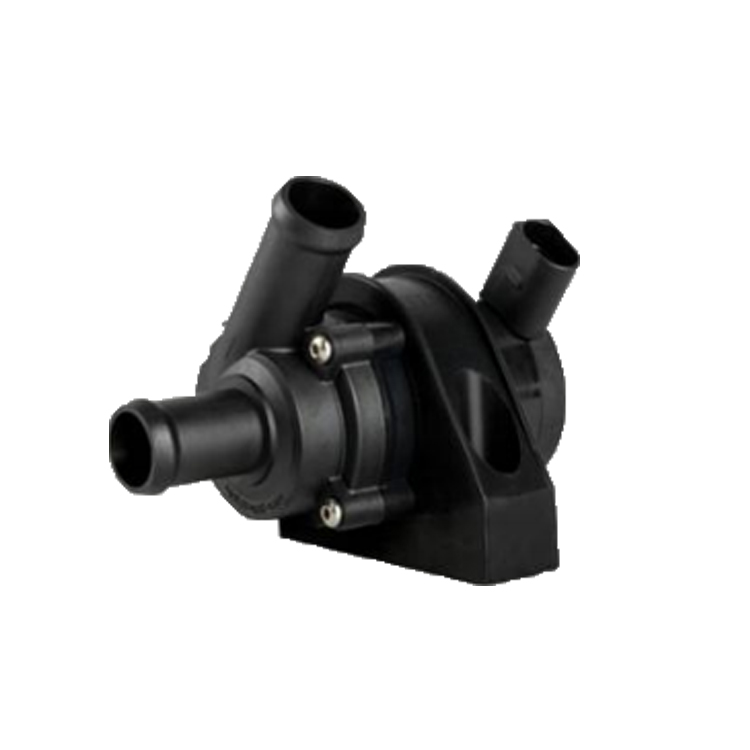

Brushless motor 12.5V 18W auto water pump electric pump
- Working medium:antifreeze
- Ambient temperature:-40℃~+150℃
- Medium temperature:-40℃~+125℃,
- Rated voltage: DC12.5V Voltage range:DC8V~DC16V
- Weight:330g
- Life:≥20000h
- Protection level:IP67
- Protection function:overheat protection
Introduce
Specification
Application
Features
1 This is mainly used for turbocharger cooling
2 This water pump has small power and long life
3 The DC brushless motor has good reliability,high efficiency and energy saving, and low noise
4 control mode:ON / OFF
5 Over-temperature protection:When the water pump exceeds the operation range,the water pump returns to normal operation when the temperature returns to the appropriate operation range
6 reverse connection protection:positive and negative pole connection reverse water pump will automatically power off protection
2 This water pump has small power and long life
3 The DC brushless motor has good reliability,high efficiency and energy saving, and low noise
4 control mode:ON / OFF
5 Over-temperature protection:When the water pump exceeds the operation range,the water pump returns to normal operation when the temperature returns to the appropriate operation range
6 reverse connection protection:positive and negative pole connection reverse water pump will automatically power off protection
More technical parameters
|
Model
|
Volts
(V)
|
Flow
(LPM)
|
Head
(M)
|
Power
(W)
|
inlet/outlet (mm)
|
|
DSP33-1XX
|
12.5V
|
7
|
1.5
|
18
|
12
|
The technical parameters above are only a few for your reference.You can tell us what you use for,then we’ll offer you suitable pumps.

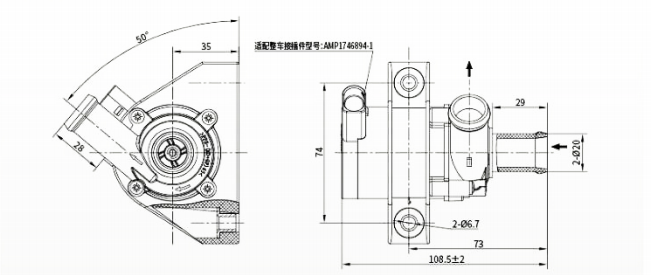

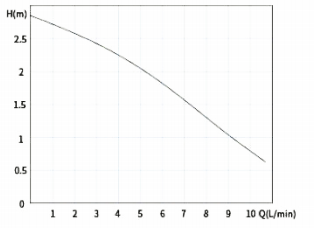

Dimensional drawing and working curve diagram
mainly used for turbocharger cooling
