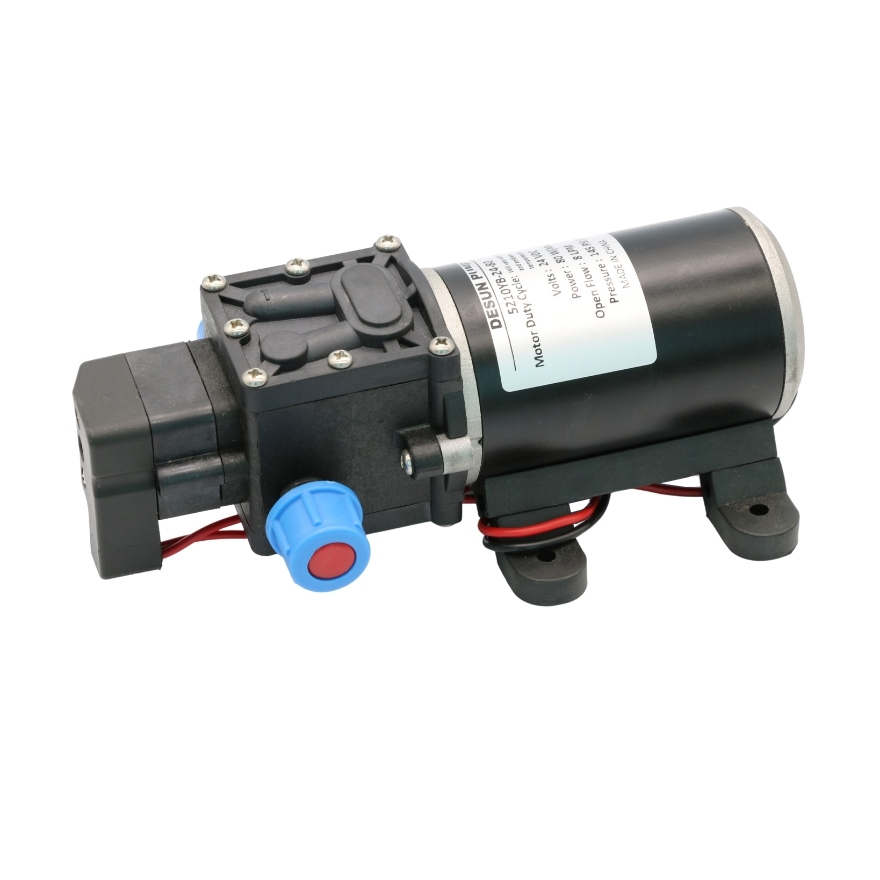

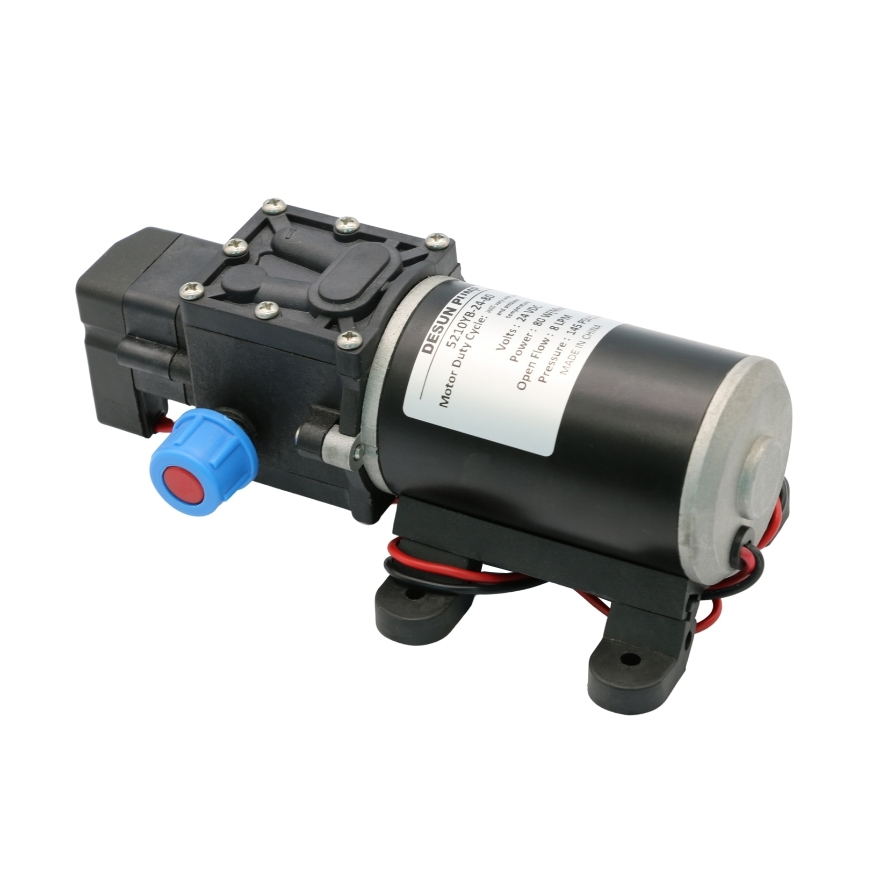

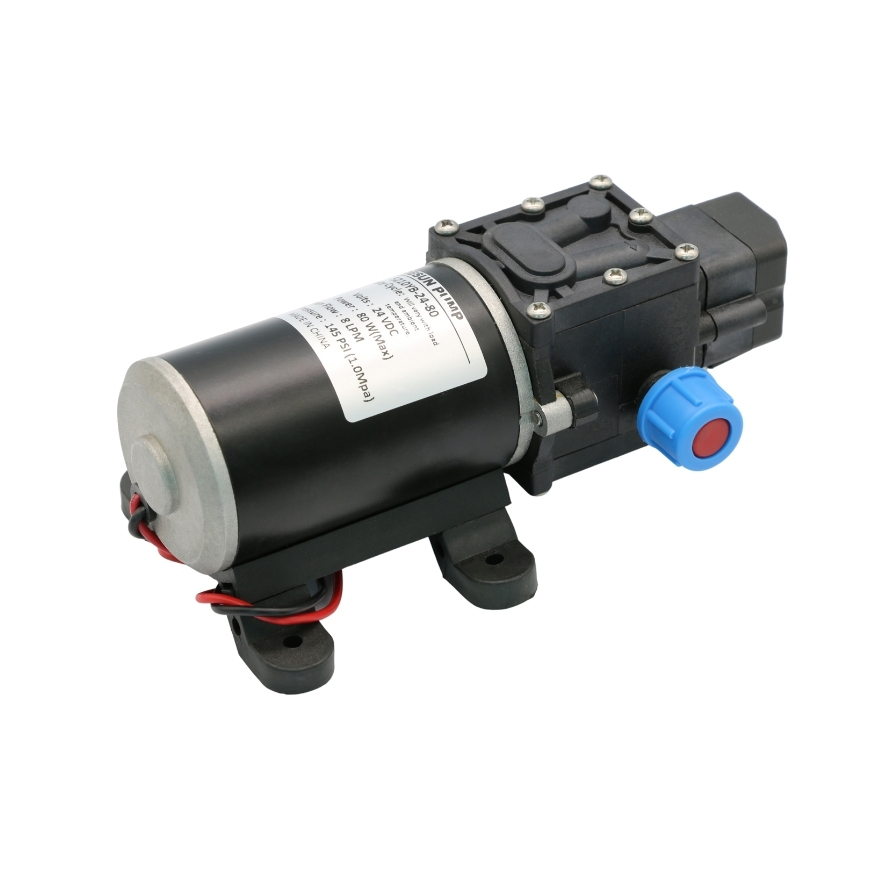

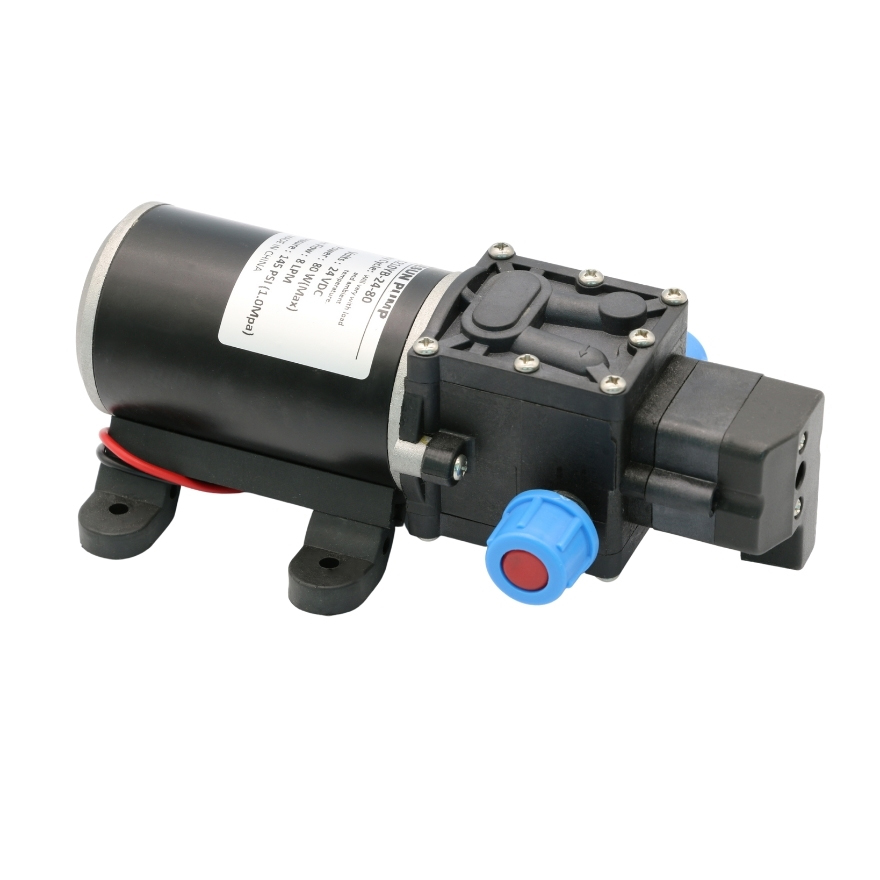

Car washing pump 12V 24V Mini electric high pressure
- Type:DIAPHRAGM PUMPS
- Maximum Head:60M
- Maximum Flow Rate:8L/min
- Samples:DIAPHRAGM PUMPS, 60M, 8L/min
- Customization:Customized logo/packaging/Graphic(Min. Order: 1000 Pieces)
- Shipping:Support Express · Sea freight · Land freight · Air freigh.
Car washer,solar energy automatic water,water system automatic control or other fluid automatic control auxiliary equipment,etc...
RELATED MODELS TECHNICAL PARAMETERS
|
Model
|
Volts
|
Max Power
|
Max Pressure
|
Working Pressure
|
Open Flow
|
Suction Lift
|
Head
|
Gunshot
|
|
5210YA-12-80
(YH YB HA HB HD
same as it)
|
12V
|
80W
|
10KG
|
6KG
|
6L/min
|
1.5M
|
60M
|
8M
|
|
5210YA-24-80
(YH YB HA HB HD
same as it)
|
24V
|
80W
|
10KG
|
6KG
|
6L/min
|
1.5M
|
60M
|
8M
|
|
5210YA-12-100
(YB YD HA HB HD
same as it)
|
12V
|
100W
|
11KG
|
7KG
|
8L/min
|
1.5M
|
70M
|
9M
|
|
5210YA-24-100
(YB YD HA HB HD
same as it)
|
24V
|
100W
|
11KG
|
7KG
|
8L/min
|
1.5M
|
70M
|
9M
|
|
5210YA-48-100
(HD same as it)
|
48V
|
100W
|
11KG
|
7KG
|
8L/min
|
1.5M
|
70M
|
9M
|
|
5210HD-12-100F
(HB HA YD YA YB
same as it)
|
12V
|
100W
|
11KG
|
7KG
|
8L/min
|
1.5M
|
70M
|
9M
|
|
5210HD-24-100F
(HB HA YD YA YB
same as it)
|
24V
|
100W
|
11KG
|
7KG
|
8L/min
|
1.5M
|
70M
|
9M
|
|
5210YD-12-120F
(HD same as it)
|
12V
|
120W
|
13KG
|
8KG
|
10L/min
|
1.5M
|
80M
|
10M
|
|
5210YD-24-120F
(HD same as it)
|
24V
|
120W
|
13KG
|
8KG
|
10L/min
|
1.5M
|
80M
|
10M
|
* The technical parameters above are only a few for your reference.
* All models can be equipped with adapters.* All models can be powered by solar power, DC power, solar panels, batteries, etc.
ATTENTION
* Do not use water or dirty water (silt in dirty water will cause irreversible damage to the pump).
* Non-submersible pumps are not waterproof. Do not spray water directly at the pump. It is strictly forbidden to soak the pump in water. Dry the pump body after use.
* Non-submersible pumps are not waterproof and cannot be used in a damp place for a long time.
* Do not disassemble the water pump or adjust the pump pressure setting screw by yourself (adjusting the pressure setting screw without authorization may be fatal to the pump).
* It is strictly forbidden to use this machine without the filter,and the density of the filter should be above 80 mesh (impurities will cause damage to the pump).
* The diameter of the spray hole must meet the specified value,otherwise, the water pump will be damaged.
* Please confirm the power supply before use,the power supply parameters must be consistent with the pump input parameters.
The pictures of application scope are only for reference
Mainly used for High – pressure fog – making,long-distance or mountain road trucks breakwater cooling,pumping wine,milk,soy milk,drinking,cooking oil,and other liquids,Pumping gasoline,diesel, viscous liquids;Spray irrigation and water spraying,cleaning the car,air conditioner,vacuum cleaner,water purifier,etc…
