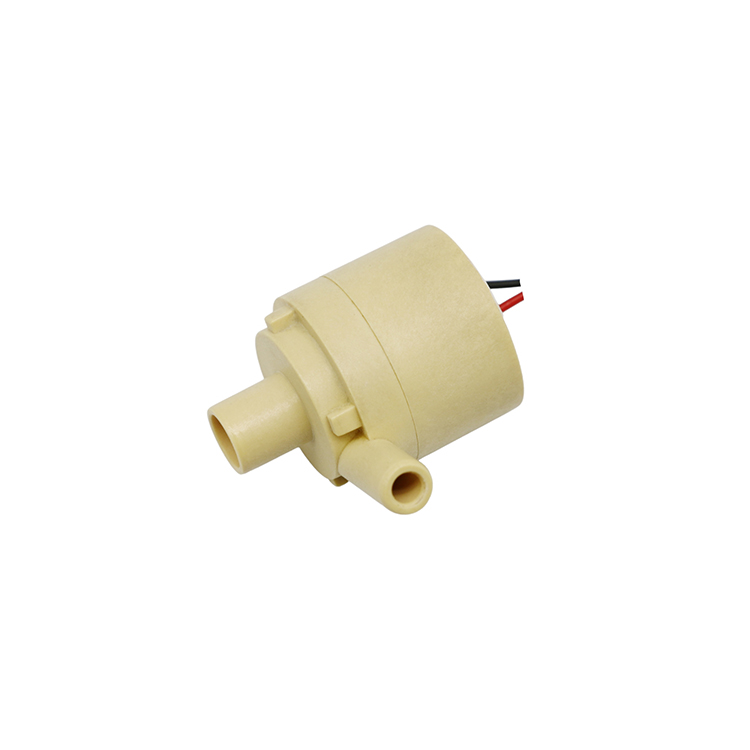

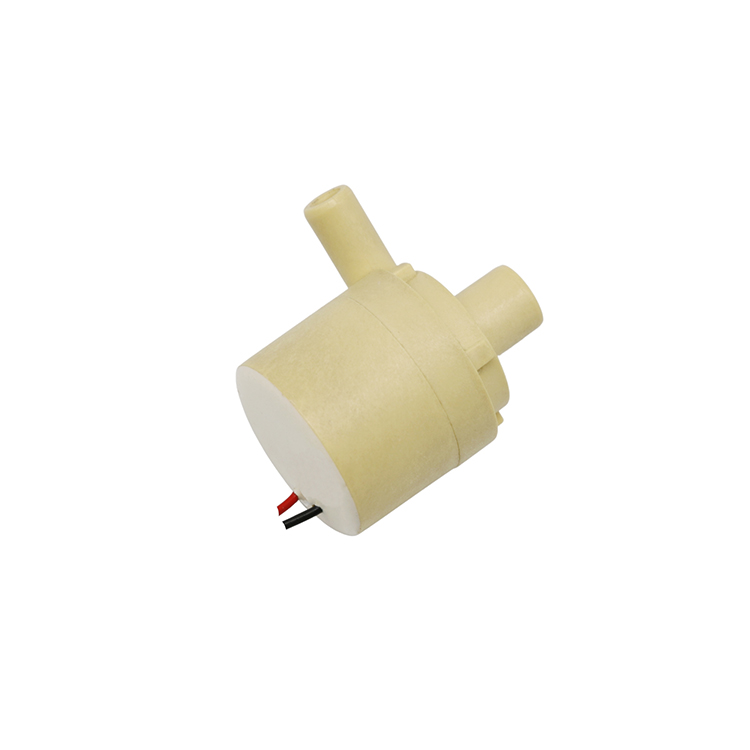

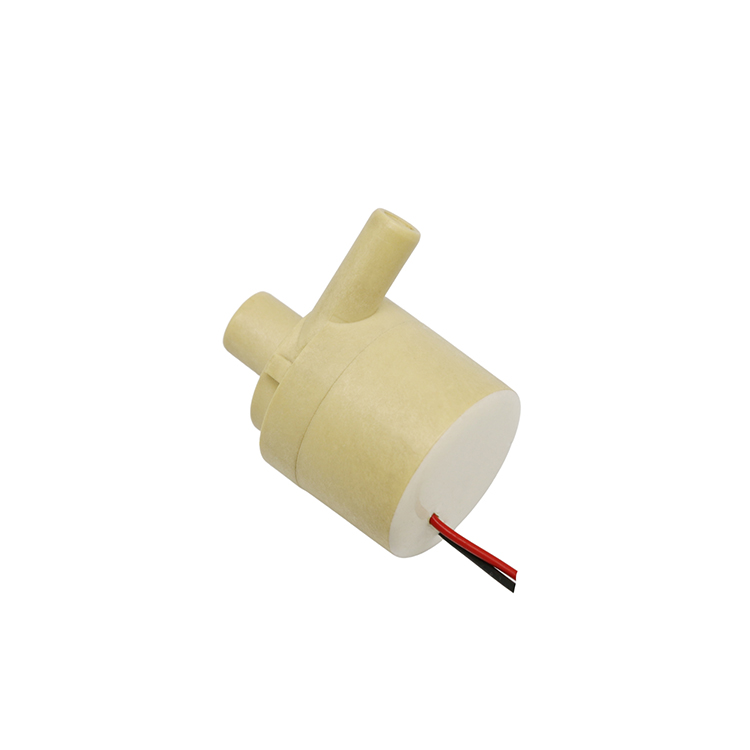

CE RoHS Wholesales 12V dc Brushless Food-grade Water Pump
- Small size,lightweight,easy to install;
- Epoxy potting,IP68 waterproof rating;
- Brushless motor,long life span;
- Durable permanent magnetic rotor and high density(stainless steel zirconia)optional shaft.
- Food grade standard
Introduce
Specification
Application
|
Product name
|
Food grade water pump
|
|
Model
|
DS2501HF
|
|
Working voltage
|
3 ~ 12V
|
|
Max. flowrate
|
2L/min
|
|
Max. head
|
2M
|
|
Working temp.
|
≤100 ℃
|
|
Material
|
PPE
|
|
Water proof level
|
IP68
|
|
Noise
|
≤30dB
|
|
Lifetime
|
20000H
|
|
Inlet diameter
|
9.7mm
|
|
Outlet diameter
|
7mm
|
Customizable Functions
1. 0~5V speed control;
2. FG motor speed feedback wire;
3. PWM adjustable;
4. Can work in water and out of water;
5. High temperature customized;
6. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
|
Model
|
Volts(V)
|
Amps(A)
|
Flow(LPM)
|
Head(M)
|
Power(W)
|
|
DS2501HF-0310
|
3
|
0.07
|
0.9
|
1
|
0.17
|
|
DS2501HF-0510
|
5
|
0.12
|
1.1
|
1
|
0.6
|
|
DS2501HF-0610
|
6
|
0.15
|
1.3
|
1
|
0.9
|
|
DS2501HF-0917
|
9
|
0.23
|
1.7
|
1.7
|
2.07
|
|
DS2501HF-1220
|
12
|
0.34
|
2
|
2
|
3.8
|
The technical parameters above are only a few for your reference.You can tell us what you use for,then we’ll offer you suitable pumps.

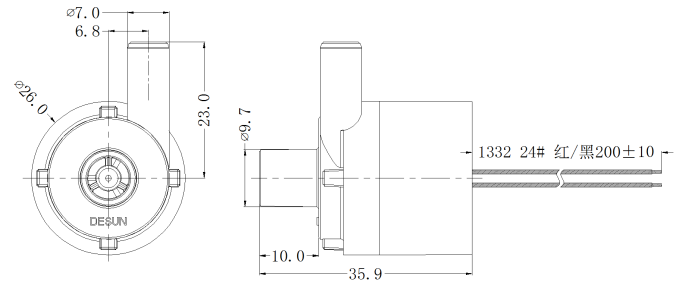

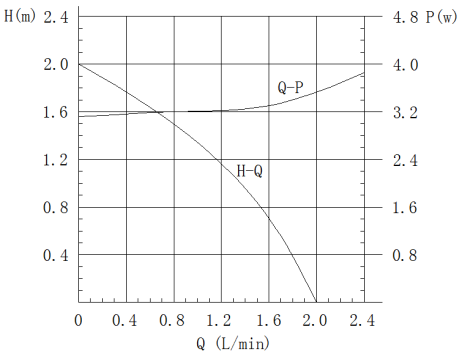

Dimensional drawing and working curve diagram
