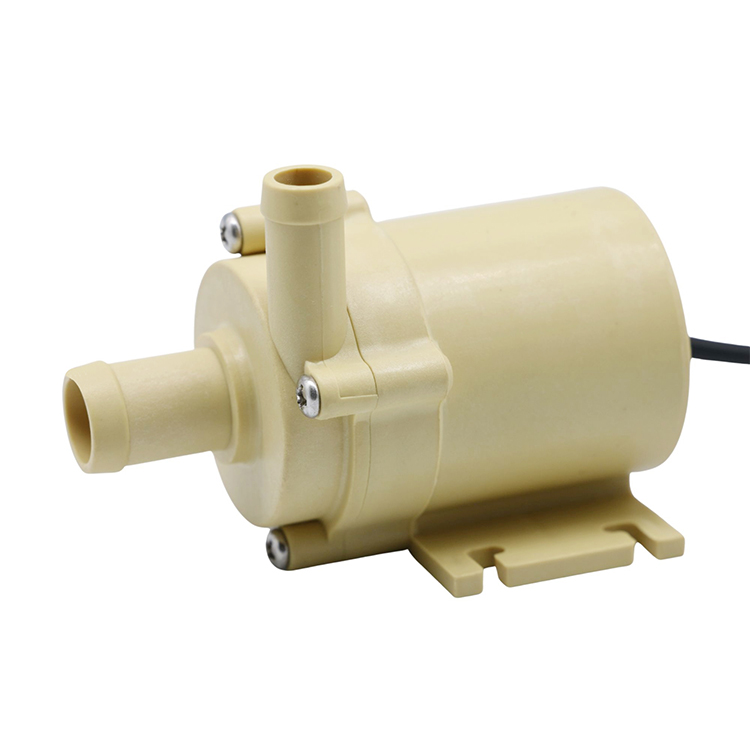

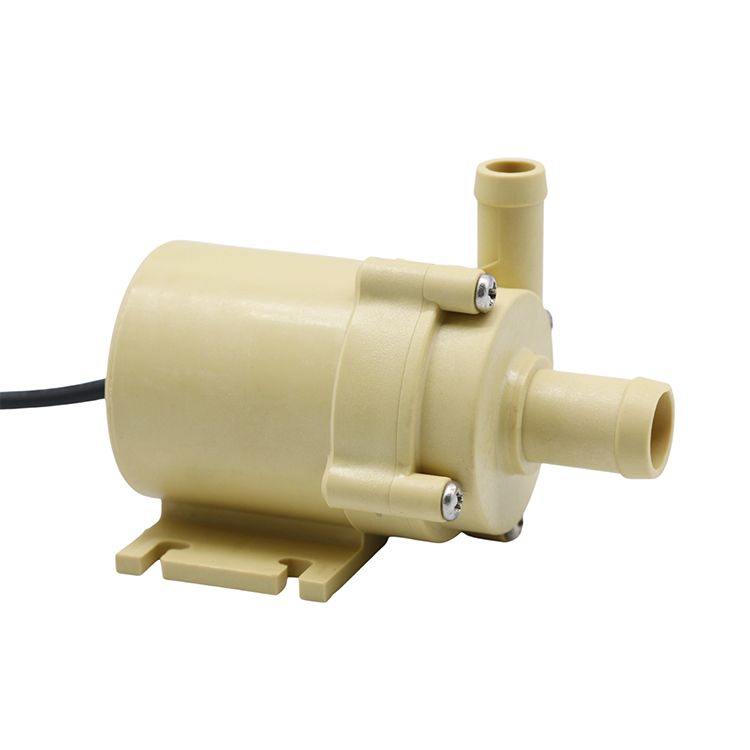

China Factory DC brushless Water Pump For Drinking Dispenser
- Small size,lightweight,easy to install;
- Epoxy potting,IP68 waterproof rating;
- Brushless motor,long life span;
- Durable permanent magnetic rotor and high density(stainless steel zirconia)optional shaft.
Introduce
Specification
Application
|
Product name
|
Water pump
|
|
Model
|
DS3501HF
|
|
Working voltage
|
12/24V（DC）
|
|
Max. flowrate
|
9L/min
|
|
Max. head
|
5M
|
|
Working temp.
|
≤100 ℃
|
|
Material
|
PPE
|
|
Water proof level
|
IP68
|
|
Noise
|
≤35dB
|
|
Lifetime
|
20000H
|
|
Inlet diameter
|
14mm
|
|
Outlet diameter
|
10.5mm
|
Customizable Functions
1. 0~5V speed control;
2. FG motor speed feedback wire;
3. PWM adjustable;
4. Can work in water and out of water;
5. High temperature customized;
6. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Related models technical parameters
|
Model
|
Volts
(V)
|
Amps
(A)
|
Flow
(LPM)
|
Head(M)
|
Power
(W)
|
|
DS3501HF-1250
|
12
|
1
|
9
|
5
|
12
|
|
DS3501HF-2450
|
24
|
0.5
|
9
|
5
|
12
|

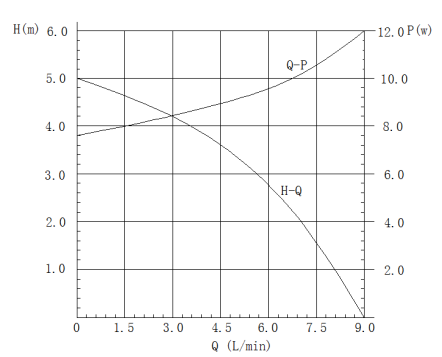

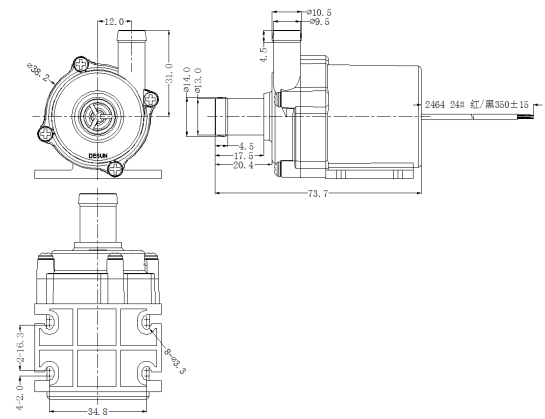

Dimensional drawing and working curve diagram
