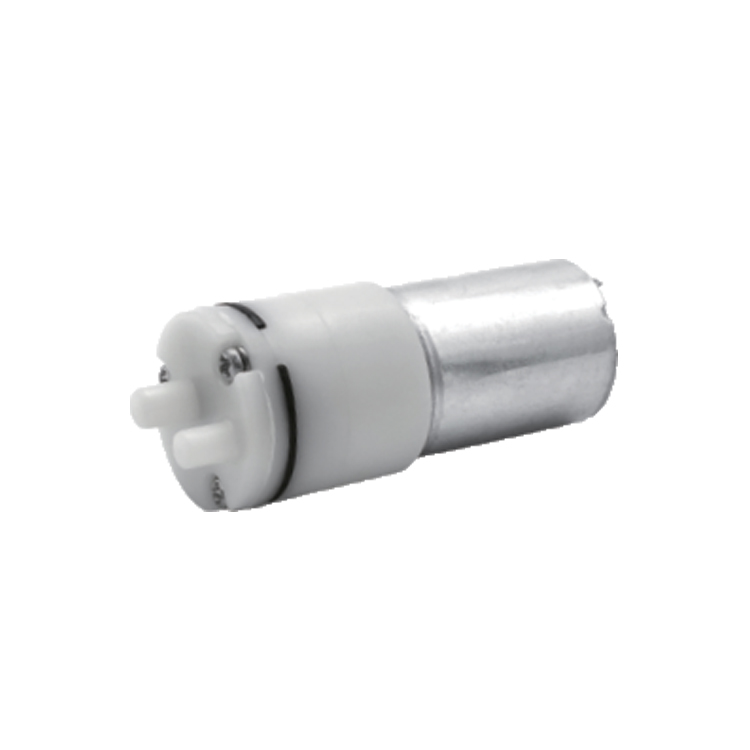

DC Mini pump 3V~6V Micro Diaphragm Vacuum Pump
- Life:Expected life span is 100hours.
- One Year warranty.
- Duty work:The pump can sustain heavy-duty work for a whole day.Continuous operation.
- Working conditions:Applying to indoor and outdoor under temperature 45 deg C.
- Working temperature:5~45°C .
- One week for samples,two week for bulk order.
- Factory price+high quality+good after-sales service
Introduce
Specification
Application
- Model Number:DSP130-XZ
- Horsepower:Desun Standard
- Power Source:Electric
- Pressure:Low Pressure
- Structure:Peristaltic Pump
- Cable Length:Desun Standard
- Outlet Size:3.5mm
- Voltage:3V/3.7V/4.5V/6V
- Power:1.66w/1.6W
- Product name:vacuum pump
- Lifetime:>=100hours
- Noise:≤65dB (30cm away)
- Max vacuum:<=-58Kpa(-420mmHg)
- vacuum flow:0.5-1.0LPM
- Weight:25g
Related model technical parameters
|
Voltage(V)
|
Power
|
Rated Current
|
tap O.D.
|
Vacuum flow
|
Maximum Pressure
|
|
DC 3V
|
1.66W
|
≤ 550mA
|
Dia 3.5mm
|
0.5 – 1.0 LPM
|
≤ -58 Kpa
|
|
DC 3.7V
|
1.66W
|
≤ 450mA
|
Dia 3.5mm
|
0.5 – 1.0 LPM
|
≤ -58 Kpa
|
|
DC 4.5V
|
1.6W
|
≤ 350mA
|
Dia 3.5mm
|
0.5 – 1.0 LPM
|
≤ -58 Kpa
|
|
DC 6V
|
1.6W
|
≤ 270mA
|
Dia 3.5mm
|
0.5 – 1.0 LPM
|
≤ -58 Kpa
|
Application :
1. Household applications:white goods,small appliances,fans,electric screens,automatic window opening,floor cleaning robots,vacuum cleaners,smart home systems.
2. Medical applications:medical pumps, sphygmomanometers,surgical tools,medical agitators,centrifuges.
3. Power tools:air pump,water pump,vacuum pump,oxygen generator,electric drill,electric screwdriver.
4. Commercial equipment:printers,copiers,shredders,projectors,scanners,cash registers,vending machines.
5. Personal care:hair dryer,electric shaver,beauty product,hair curler,steam hair straightener (water jet straight hair outlet).
6. Health field:massager,adult toy.
7. Security field:surveillance system,camera,safe.
8. Industrial applications:robotic arms,printing equipment, automation equipment.
9. Other applications:electronic door locks,smart switches,robots,toys,smart cars,boats,intelligent wear,electronics,DIY,etc.
The application scene pictures are just for your reference.We supply Full Customization Service,please contact us for the details.
1. Household applications:white goods,small appliances,fans,electric screens,automatic window opening,floor cleaning robots,vacuum cleaners,smart home systems.
2. Medical applications:medical pumps, sphygmomanometers,surgical tools,medical agitators,centrifuges.
3. Power tools:air pump,water pump,vacuum pump,oxygen generator,electric drill,electric screwdriver.
4. Commercial equipment:printers,copiers,shredders,projectors,scanners,cash registers,vending machines.
5. Personal care:hair dryer,electric shaver,beauty product,hair curler,steam hair straightener (water jet straight hair outlet).
6. Health field:massager,adult toy.
7. Security field:surveillance system,camera,safe.
8. Industrial applications:robotic arms,printing equipment, automation equipment.
9. Other applications:electronic door locks,smart switches,robots,toys,smart cars,boats,intelligent wear,electronics,DIY,etc.
The application scene pictures are just for your reference.We supply Full Customization Service,please contact us for the details.
