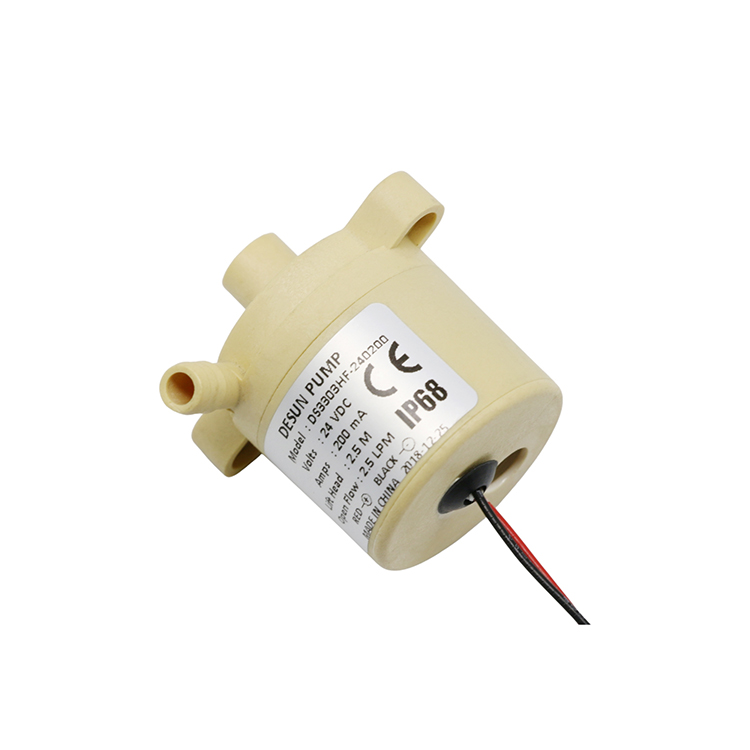

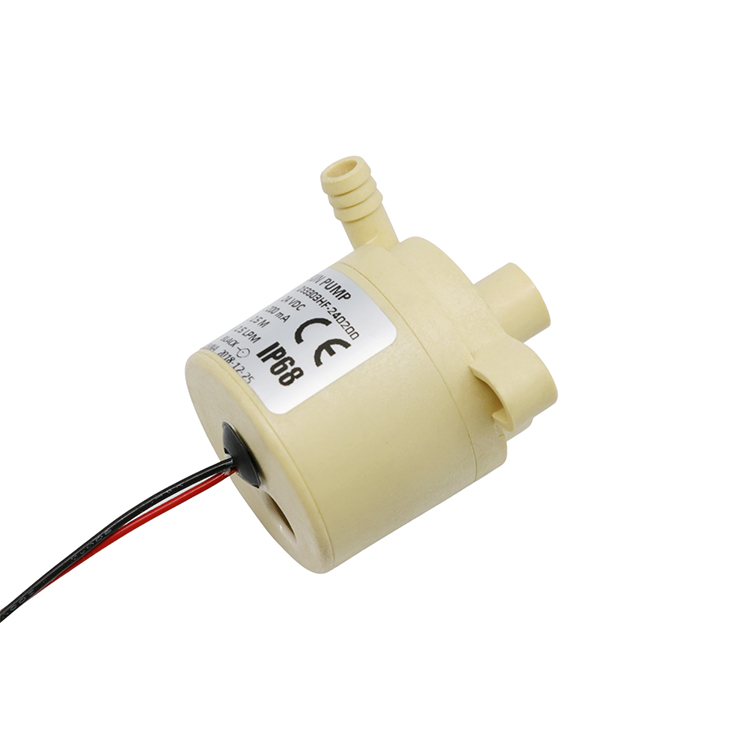

Food grade Coffee Machine 12v dc Water Pump
- Small size,lightweight,easy to install;
- Epoxy potting,IP68 waterproof rating;
- Brushless motor,long life span;
- Durable permanent magnetic rotor and high density(stainless steel zirconia)optional shaft.
Introduce
Specification
Application
Product name:Water pump
Model:DS3303HF
Working voltage:12/24V（DC）
Max. flowrate:3L/min
Max. head:4M
Working temp:≤100 ℃
Material:PPE
Water proof level:IP68
Noise:≤35dB
Lifetime:20000H
Inlet diameter:9.8mm
Outlet diameter:6.8mm
Customizable Functions
1. 0~5V speed control;
2. FG motor speed feedback wire;
3. PWM adjustable;
4. Can work in water and out of water;
5. High temperature customized;
6. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Related models technical parameters
|
Model
|
Volts
(V)
|
Amps
(A)
|
Flow
(LPM)
|
Head(M)
|
Power
(W)
|
|
DS3303HF-0515
|
5
|
0.5
|
1.5
|
1.5
|
2.5
|
|
DS3303HF-0625
|
6
|
0.5
|
2
|
2.5
|
3
|
|
DS3303HF-0930
|
9
|
0.5
|
2.5
|
3
|
4.5
|
|
DS3303HF-1235
|
12
|
0.6
|
3
|
3.5
|
6.6
|
|
DS3303HF-2435
|
24
|
0.2
|
3
|
4
|
7.68
|

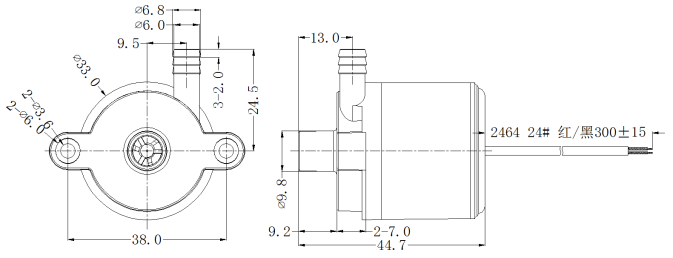

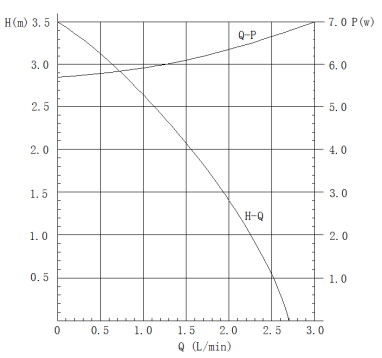

Dimensional drawing and working curve diagram
