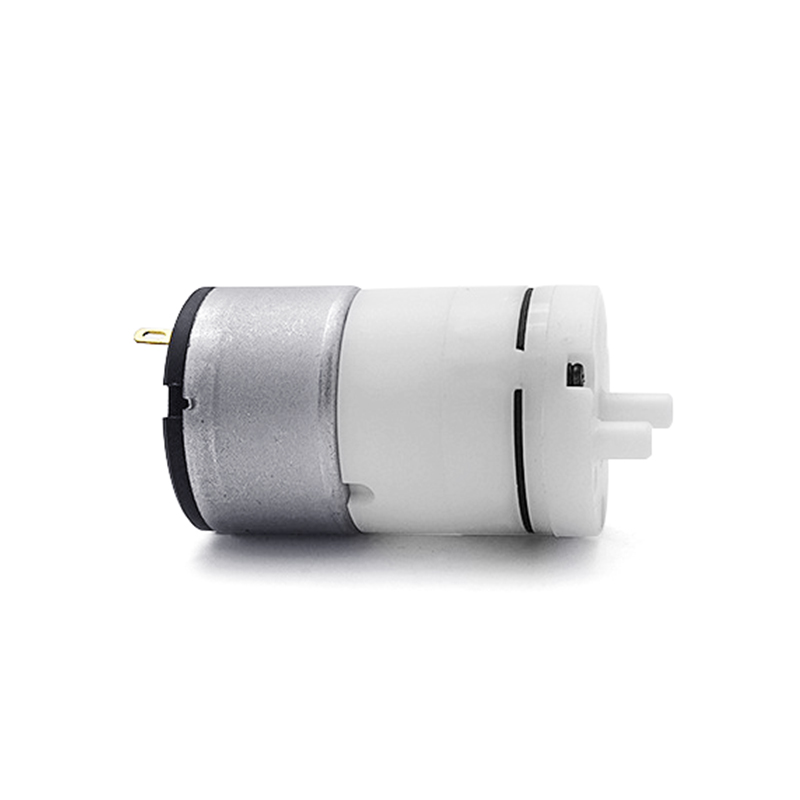

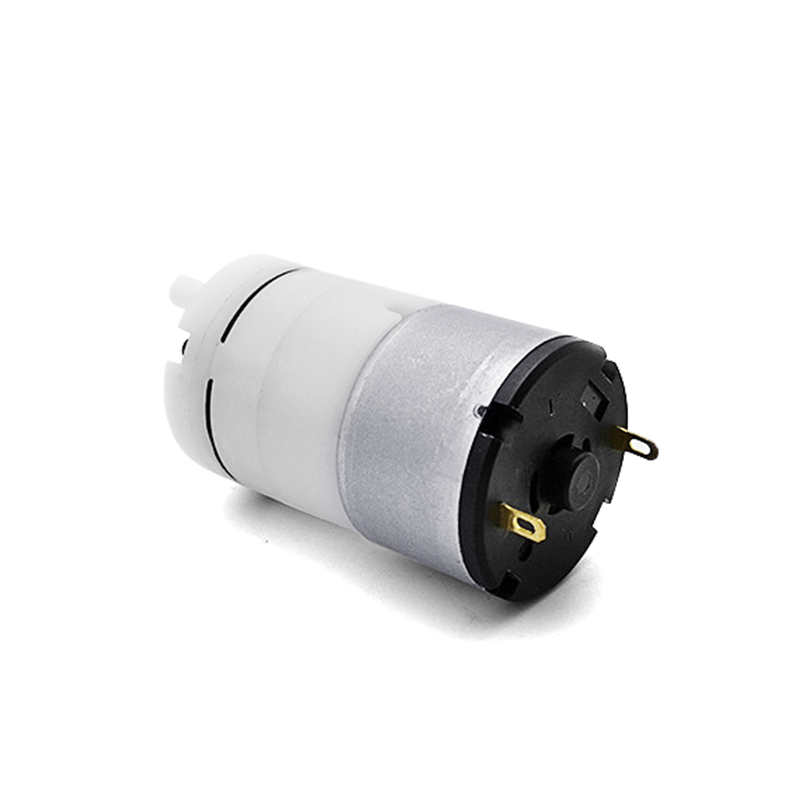

Food-grade Mini Diaphragm Vacuum /Electric Air Suction Pump
- Life:Expected life span is over 500 Hours.
- One Year warranty.
- Duty work:The pump can sustain heavy-duty work for a whole day.Continuous operation.
- Working conditions: Applying to indoor and outdoor under temperature 45 deg C.
- Working temperature:5~45°C .
- One week for samples,two week for bulk order.
- Factory price+high quality+good after-sales service
Introduce
Specification
Application
- Model Number:DSP520-XZ
- Place of Origin:Guangdong, China
- Application:Drinking water treatment, Family Homes, Food and Beverage Industry, Industrial Utilities, Water Distribution, Water Treatment Solutions, Raw Water Intake, Washing and Cleaning, wastewater treatment, Other
- Power Source:Electric
- Pressure:Low Pressure
- Structure:Vacuum Pump
- Outlet Size:4.5mm
- Voltage:3.7V/4.5V/6V/12V/24V
- Power:3.0W
- Product name:Vacuum Pump
- Lifetime:>= 500 Hours
- Noise:≤65dB (30cm away)
- Duty work:Work a whole day continously
- Charateristic:Light weight,no spark,etc.
- Vacuum flow:1.5 - 4.5 LPM
- Maximum Pressure:=< -60Kpa (-450mmHg)
- Rated voltage:3.7V/4.5V/6V/12V/24V
Related Parameters (The technical specification only for reference, it can be customized)
|
Voltage(V)
|
Power
|
Rated Current
|
tap O.D.
|
Vacuum flow
|
Maximum Pressure
|
|
DC 3.7V
|
3.0 W
|
≤ 800mA
|
Dia 4.5mm
|
1.5 – 4.5 LPM
|
≤ -60 Kpa
|
|
DC 4.5V
|
3.0 W
|
≤ 660mA
|
Dia 4.5mm
|
1.5 – 4.5 LPM
|
≤ -60 Kpa
|
|
DC 6V
|
3.0 W
|
≤ 500mA
|
Dia 4.5mm
|
1.5 – 4.5 LPM
|
≤ -60 Kpa
|
|
DC 12V
|
3.0 W
|
≤ 250mA
|
Dia 4.5mm
|
1.5 – 4.5 LPM
|
≤ -60 Kpa
|
|
DC 24V
|
3.0 W
|
≤ 125mA
|
Dia 4.5mm
|
1.5 – 4.5 LPM
|
≤ -60 Kpa
|
Application :
1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots,vacuum cleaners, smart home systems.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY,etc.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY,etc.
We supply Full Customization Service, please contact us for the details.
