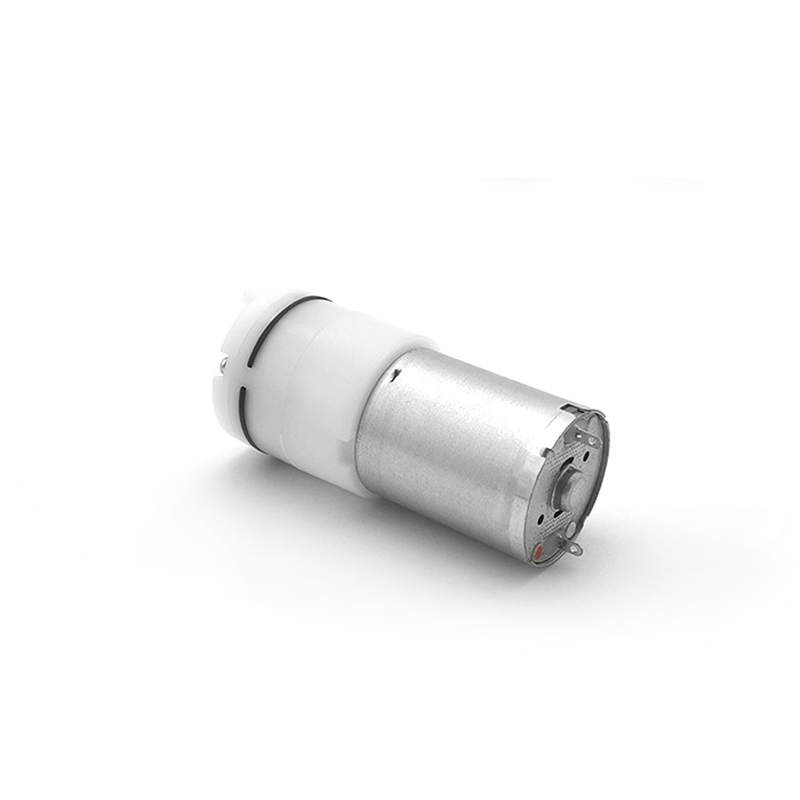

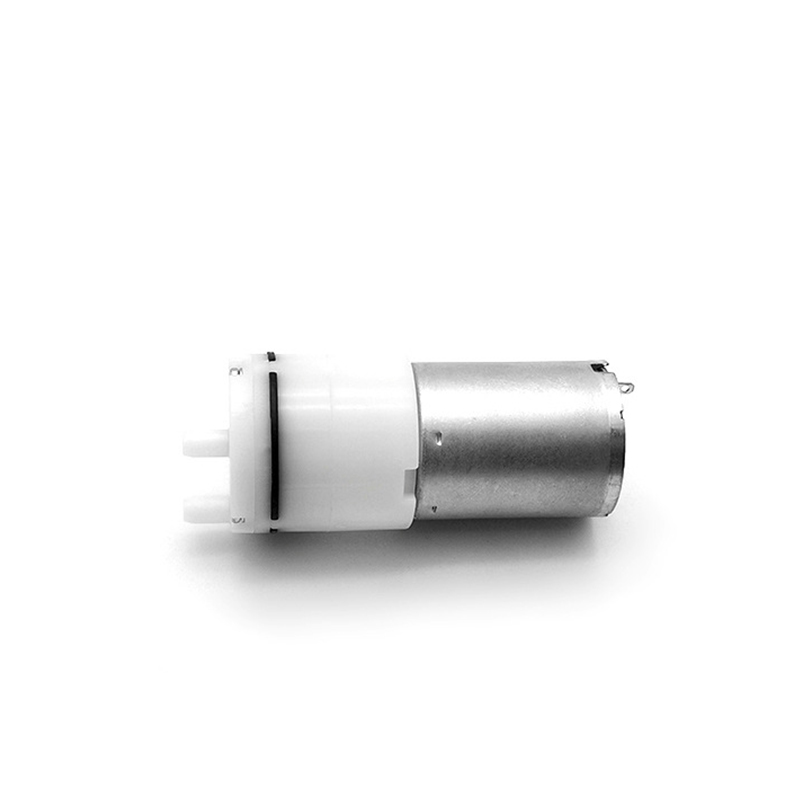

Household Appliances 6V 12V Micro Diaphragm Vacuum Pump
- Life:Expected life span is over 500 Hours.
- One Year warranty.
- Duty work:The pump can sustain heavy-duty work for a whole day.Continuous operation.
- Working conditions:Applying to indoor and outdoor under temperature 45 deg C.
- Working temperature:5~45°C .
- One week for samples,two week for bulk order.
- Factory price+high quality+good after-sales service
Introduce
Specification
Application
- Model Number:DSP370-XZB
- Power Source:Electric
- Pressure:Low Pressure
- Structure:Vacuum Pump
- Outlet Size:4.0mm
- Voltage:3V/3.7V/4.5V/6V/12V
- Power:1.5W
- Product name:Vacuum Pump
- Lifetime:>= 500 Hours
- Noise:≤65dB (30cm away)
- Duty work:Work a whole day continously
- Charateristic:Light weight,no spark,etc.
- Vacuum flow:>=3 LPM
- Maximum Pressure:=< -60Kpa (-450mmHg)
- Rated voltage:3V/3.7V/4.5V/6V/12V
Related Parameters (The technical specification only for reference, it can be customized)
|
Voltage(V)
|
Power
|
Rated Current
|
tap O.D.
|
Vacuum flow
|
Maximum Pressure
|
|
DC 3V
|
1.5W
|
≤ 500mA
|
Dia 4.0mm
|
>=3 LPM
|
≤ -60 Kpa
|
|
DC 3.7V
|
1.5W
|
≤ 400mA
|
Dia 4.0mm
|
>=3 LPM
|
≤ -60 Kpa
|
|
DC 4.5V
|
1.5W
|
≤ 330mA
|
Dia 4.0mm
|
>=3 LPM
|
≤ -60 Kpa
|
|
DC 6V
|
1.5W
|
≤ 250mA
|
Dia 4.0mm
|
>=3 LPM
|
≤ -60 Kpa
|
|
DC 12V
|
1.5W
|
≤ 125mA
|
Dia 4.0mm
|
>=3 LPM
|
≤ -60 Kpa
|
Application :
1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots,vacuum cleaners, smart home systems.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY,etc.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY,etc.
We supply Full Customization Service, please contact us for the details.
