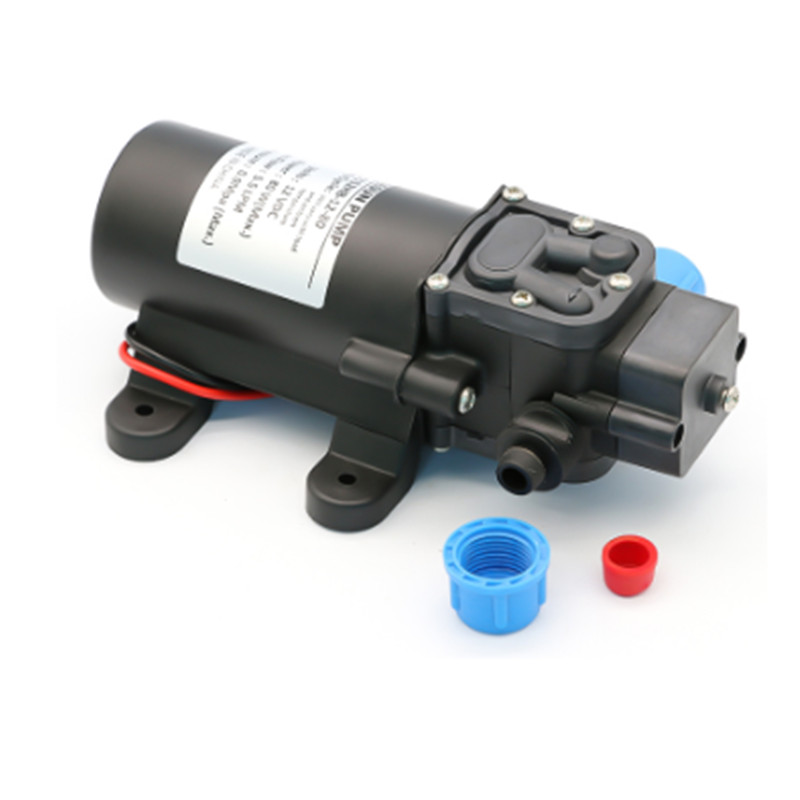

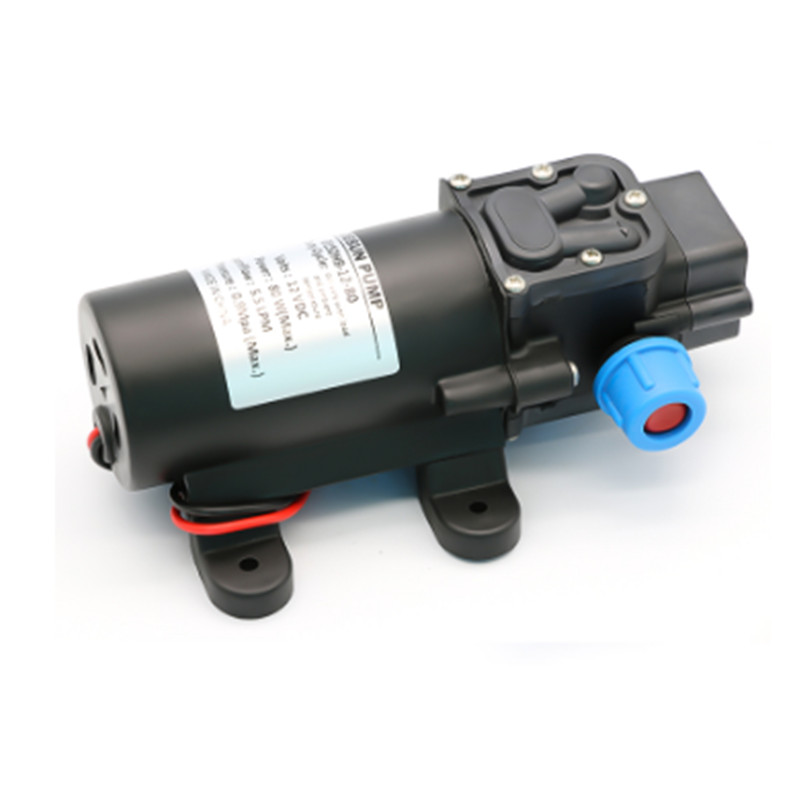

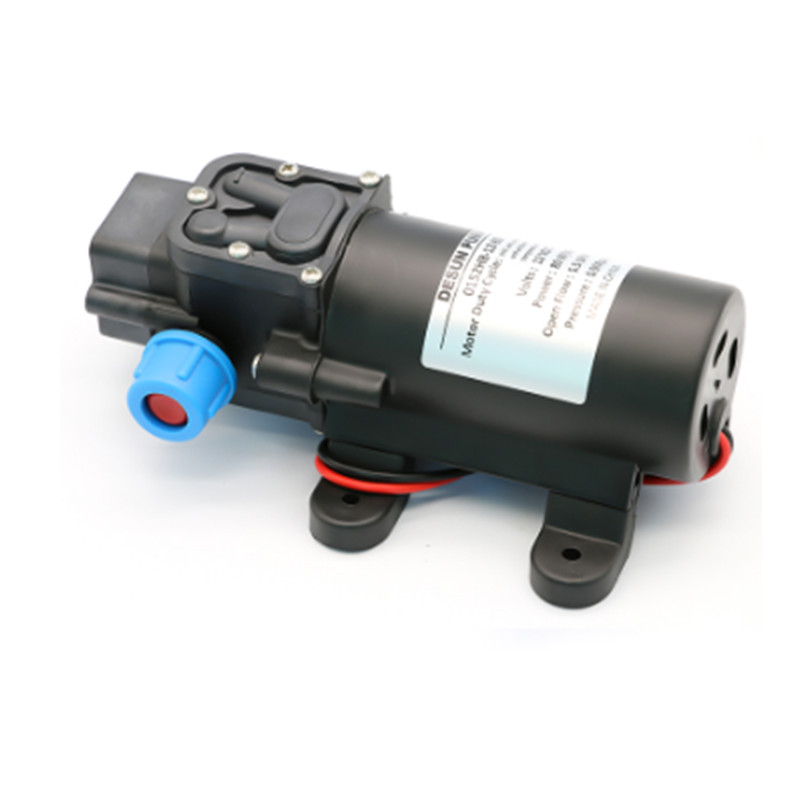

High quality 12V 80W mini electrical diaphragm water pump
Type:Diaphragm pump
Open flow:5.5L/MIN
Max power:80W
Customization:Customized logo/packaging/Graphic(Min.Order:1000 Pieces)
Shipping:Support Express · Sea freight · Land freight · Air freight
Introduce
Specification
Application
|
Volt
|
12V
|
|
Max Power
|
80W
|
|
Max Pressure
|
9KG
|
|
Working Pressure
|
5.5KG
|
|
Open flow
|
5.5L/min
|
|
Suction Lift
|
1.5m
|
|
Pipe Lift
|
55m
|
|
Gunshot
|
8m
|
Features: When the water pump outlet is closed or blocked,the pipeline pressure increases to the set value,the reflux valve is opened,the water flow circulates in the pump cavity,and the motor will be continually running.Therefore, the water spray hole size requirements are not high,with strong adaptability.
Application scope: High-pressure spraying equipment,agricultural spraying,and so on need high-pressure fog application occasions.
- Warranty:1 year
- Customized support:OEM,ODM
- Brand Name:DESUN
- Model Number:0152HB-12-80,0152HB-24-80
- Place of Origin:Guangdong,China
- Application:Other,Family Homes,Irrigation and Agriculture,Mining industry,Washing and Cleaning,Water Distribution,Water Treatment Solutions
- Horsepower:DESUN standard
- Power Source:Electric
- Pressure:0.9bar
- Structure:Diaphragm Pump
- Cable Length:DESUN standard
- Outlet Size:DESUN standard
- Voltage:12V
- Power:80w
- Theory:Diaphragm pump
- Max pressure:9KG
- Max working pressure:5.5KG
- Gunshot:8m
- Suction lift:1.5m
- Sample:Available
- Certification:RoHS,ce
Mainly used for High-pressure fog-making,long-distance or mountain road trucks brake water cooling,pumping wine,milk,soy milk,drinking,cooking oil,and other liquids,Pumping gasoline,diesel,viscous liquids;Spray irrigation and water spraying,cleaning car,air contioner,vacuum cleaner,water purifier,etc…
We supply Full Customization Service,please contact us for the details.
