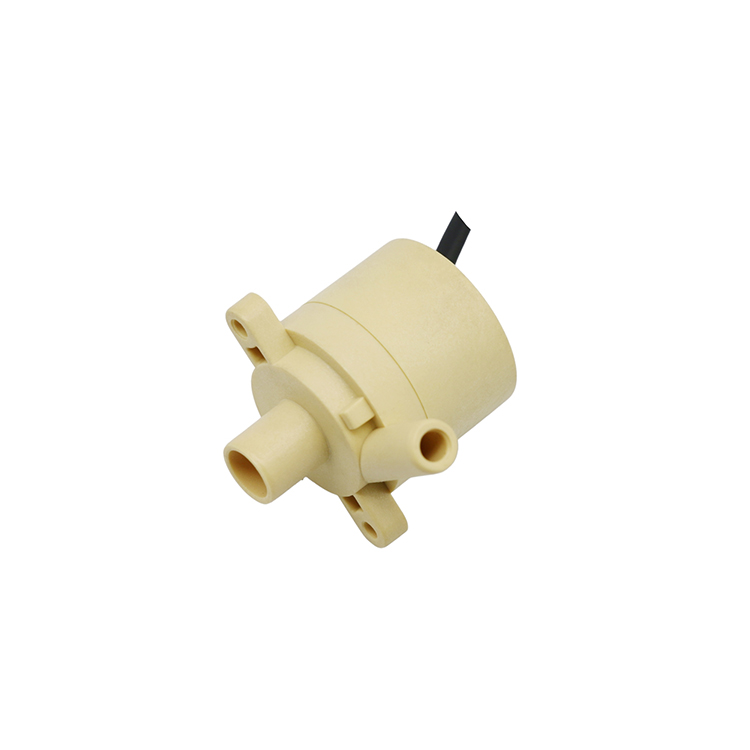

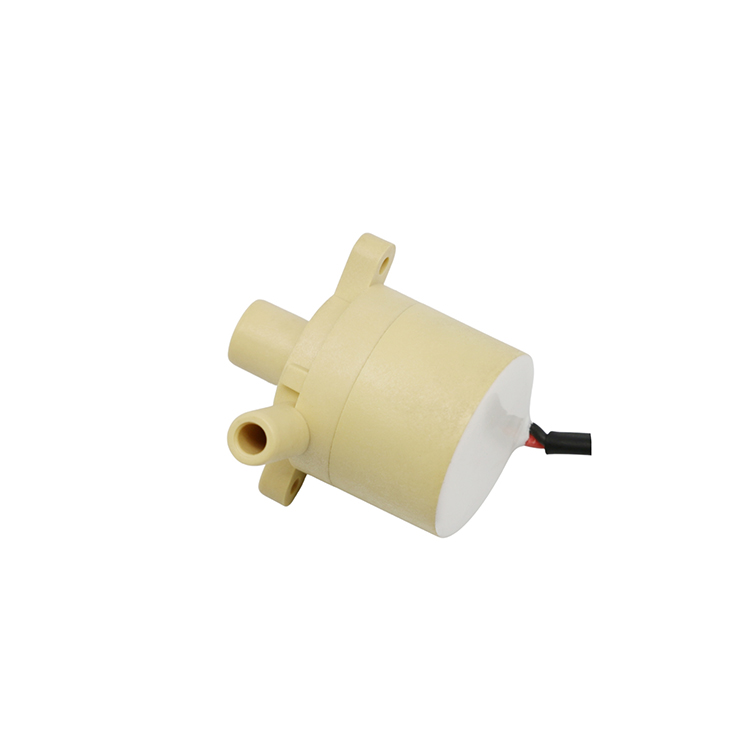

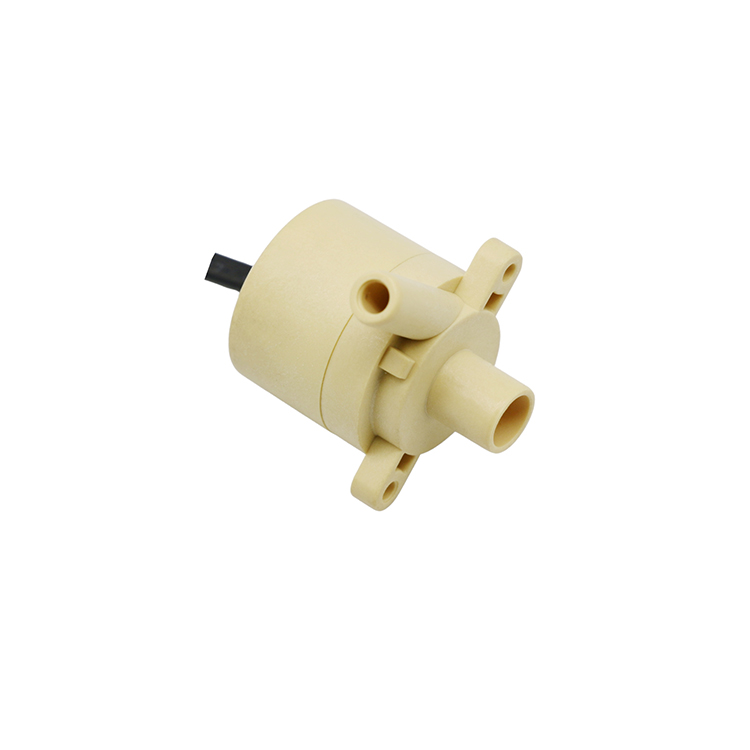

High Quality Pump Manufacturer Mini Circulating Water Pump
- Small size,lightweight,easy to install;
- Epoxy potting,IP68 waterproof rating;
- Brushless motor,long life span;
- Durable permanent magnetic rotor and high density(stainless steel zirconia)optional shaft.
Introduce
Specification
Application
|
Product name
|
Water pump
|
|
Model
|
DS2503HF
|
|
Working voltage
|
3~12V（DC）
|
|
Max. flowrate
|
2L/min
|
|
Max. head
|
2M
|
|
Working temp.
|
≤100 ℃
|
|
Material
|
PPE
|
|
Water proof level
|
IP68
|
|
Noise
|
≤30dB
|
|
Lifetime
|
20000H
|
|
Inlet diameter
|
9.7mm
|
|
Outlet diameter
|
7mmHigh Quality Pump Manufacturer Mini Circulating Water Pump
|
Customizable Functions
1. 0~5V speed control;
2. FG motor speed feedback wire;
3. PWM adjustable;
4. Can work in water and out of water;
5. High temperature customized;
6. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
More technical parameters
|
Model
|
Volts(V)
|
Amps(A)
|
Flow(LPM)
|
Head(M)
|
Power(W)
|
|
DS2503HF-0310
|
3
|
0.07
|
0.9
|
1
|
0.17
|
|
DS2503HF-0510
|
5
|
0.12
|
1.1
|
1
|
0.6
|
|
DS2503HF-0610
|
6
|
0.15
|
1.3
|
1
|
0.9
|
|
DS2503HF-0917
|
9
|
0.23
|
1.7
|
1.7
|
2.07
|
|
DS2503HF-1220
|
12
|
0.34
|
2
|
2
|
3.8
|
The technical parameters above are only a few for your reference.You can tell us what you use for,then we’ll offer you suitable pumps.

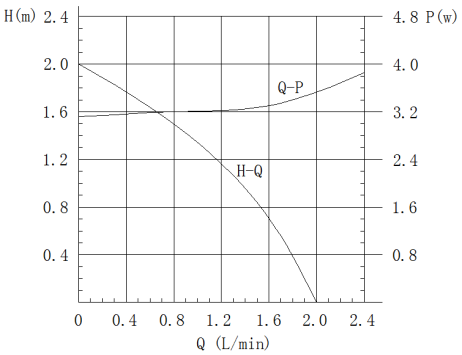

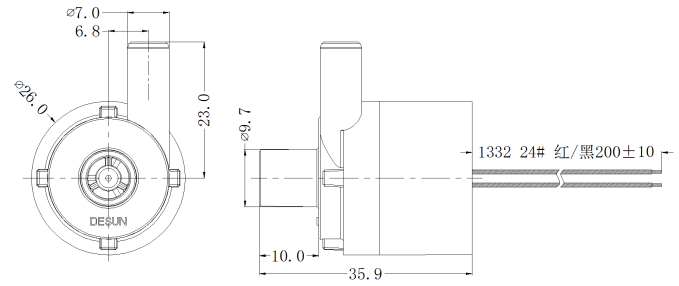

Dimensional drawing and working curve diagram
Widely used for Medical equipment,Beauty equipment,Juice machine,milk machine,hot water bottle,water dispenser,coffee machine,etc…
