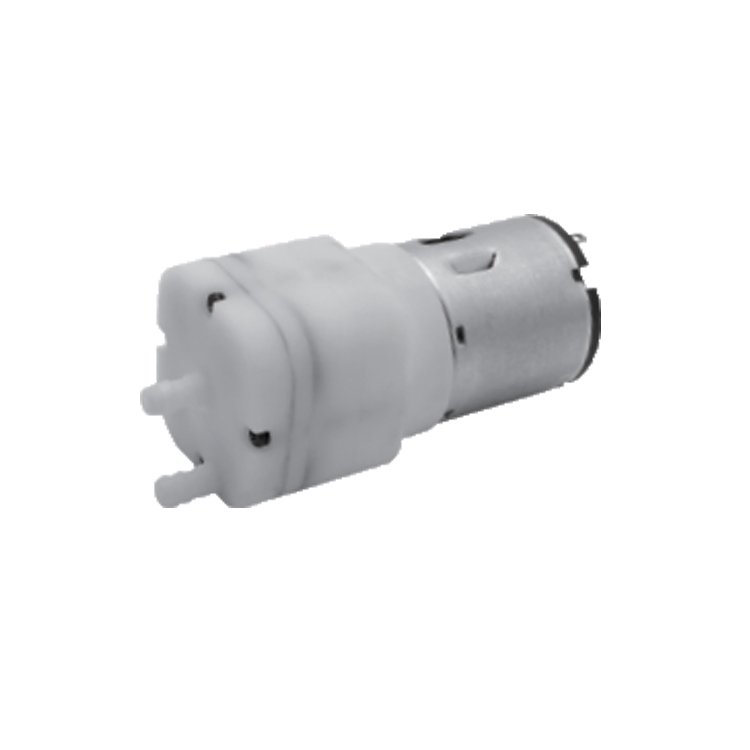

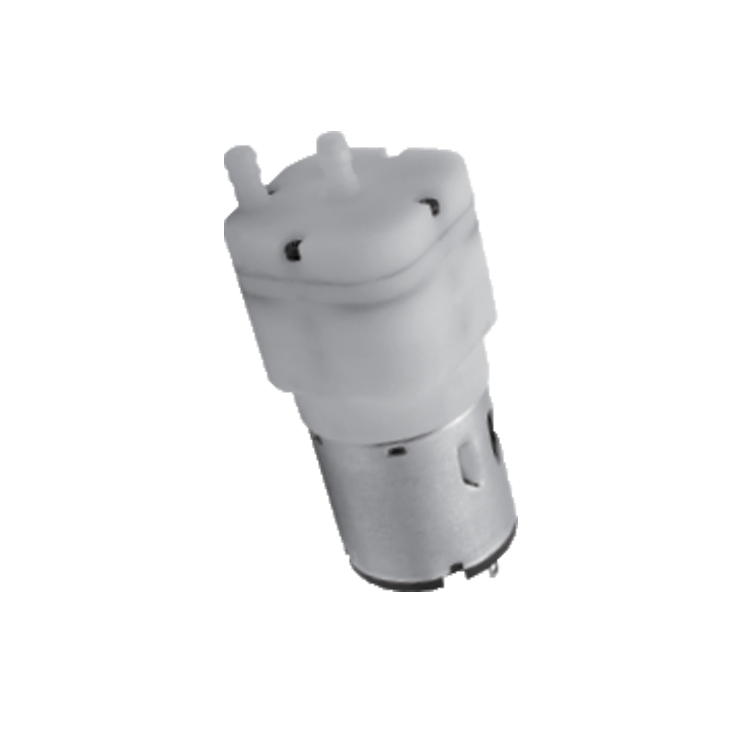

high quality pump mini vacuum pump electric air pump
- Life:Expected life span is 500hours.
- One Year warranty.
- Duty work:The pump can sustain heavy-duty work for a whole day.Continuous operation.
- Working conditions:Applying to indoor and outdoor under temperature 45 deg C.
- Working temperature:5~45°C .
- One week for samples,two week for bulk order.
- Factory price+high quality+good after-sales service
Introduce
Specification
Application
- Model Number:DSP3035-XA
- Power Source:Electric
- Pressure:Low Pressure
- Outlet Size:5.0mm
- Voltage:3.7V/4.5V/6V/12V/24V
- Power:6W
- Product name:vacuum pump
- Lifetime:>=500hours
- Noise:≤65dB (30cm away)
- Max vacuum:<=-60Kpa(-450mmHg)
- Max pressure:>=100Kpa(750mmHg)
- vacuum flow:3.5-8LPM
- Weight:85g
Related model technical parameters
|
Voltage(V)
|
Power
|
Rated Current
|
tap O.D.
|
Vacuum flow
|
Maximum Pressure
|
|
DC 3.7V
|
6W
|
≤ 1600mA
|
Dia 5.0mm
|
3.5- 8.0LPM
|
≤ -60 Kpa
|
|
DC 4.5V
|
6W
|
≤ 1300mA
|
Dia 5.0mm
|
3.5- 8.0LPM
|
≤ -60 Kpa
|
|
DC 6V
|
6W
|
≤ 1000mA
|
Dia 5.0mm
|
3.5- 8.0LPM
|
≤ -60 Kpa
|
|
DC 12V
|
6W
|
≤ 500mA
|
Dia 5.0mm
|
3.5- 8.0LPM
|
≤ -60 Kpa
|
|
DC 24V
|
6W
|
≤ 250mA
|
Dia 5.0mm
|
3.5- 8.0LPM
|
≤ -60 Kpa
|
Application :
1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots,vacuum cleaners, smart home systems.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY,
etc.
The application scene pictures are just for your reference. We supply Full Customization Service, please contact us for the details.
