High Temperature DC Brushless Electric Submersible Water Food Pump for Drinking
- Brushless motor,long life span;Expected life span is about 20000 hours.
- Low noise:≤40dB, far from 1meter distance.
- Duty work:The pump can sustain heavy-duty work for a whole day. Continuous operation.
- Small size,lightweight,easy to install；
- Epoxy potting,IP68 waterproof rating；
- Reliable Performance:Works quietly;Energy saving;High efficiency;Environment protection;
- Durable permanent magnetic rotor and high density(stainless steel or zirconia)optional shaft；
Introduce
Specification
Application
|
Product name
|
Water pump
|
|
Model
|
DS4505HF
|
|
Working voltage
|
12/24V(DC)
|
|
Max. flowrate
|
20L/min
|
|
Max. head
|
4M
|
|
Working temp.
|
≤100℃
|
|
Material
|
PPE
|
|
Water proof level
|
IP68
|
|
Noise
|
≤40dB
|
|
Lifetime
|
20000H
|
|
Inlet diameter
|
G1/2
|
|
Outlet diameter
|
G1/2
|
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Related model technical parameters
|
Model
|
Volts
(V)
|
Amps
(A)
|
Flow
(LPM)
|
Head
(M)
|
Power
(W)
|
|
DS4505HF-1245
|
12
|
2.2
|
20
|
4
|
26.4
|
|
DS4505HF-2450
|
24
|
1.3
|
20
|
4
|
24
|
The technical parameters above are only a few for your reference.You can tell us what you use for,then we’ll offer you suitable pumps.

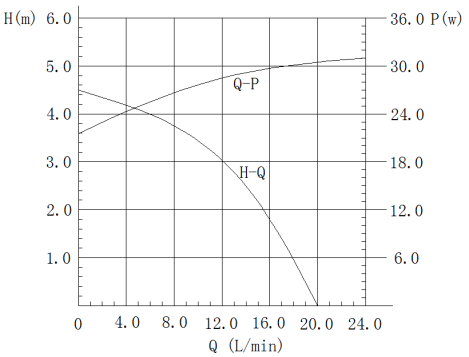

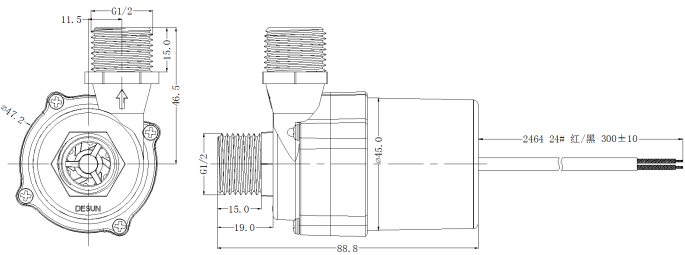

Dimensional drawing and working curve diagram
