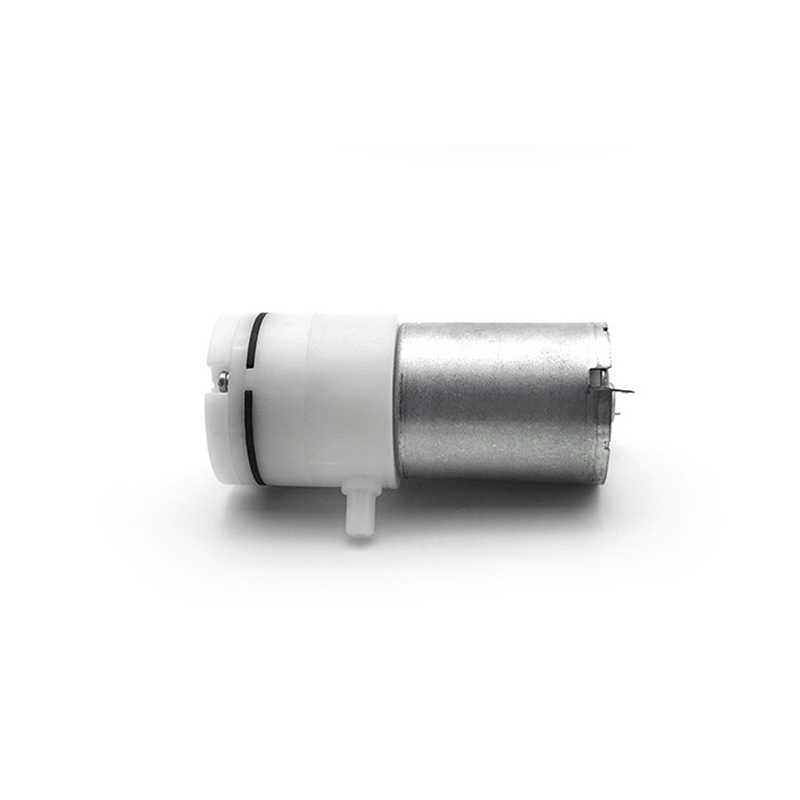

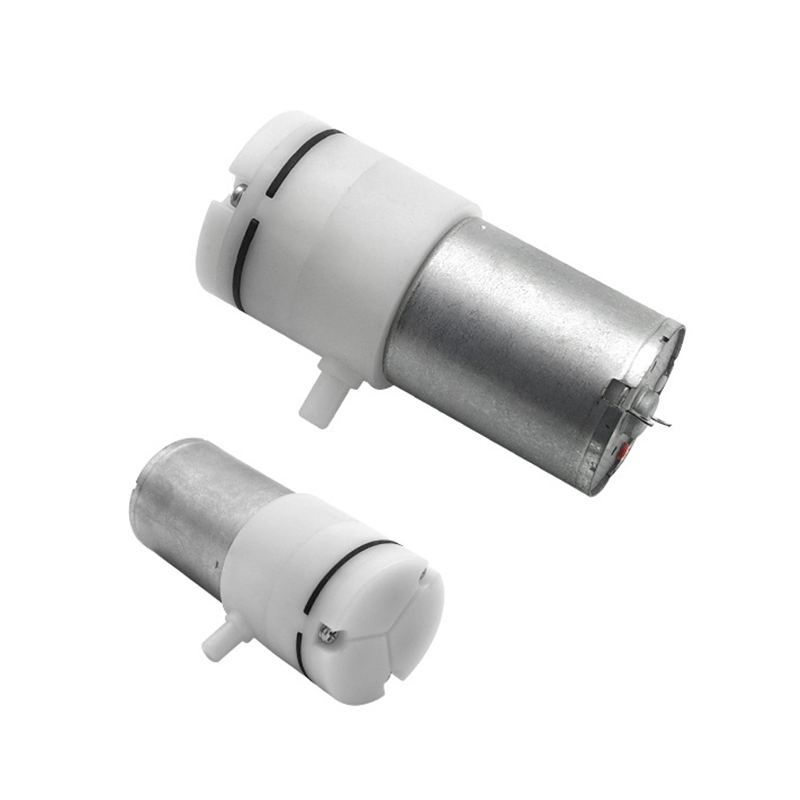

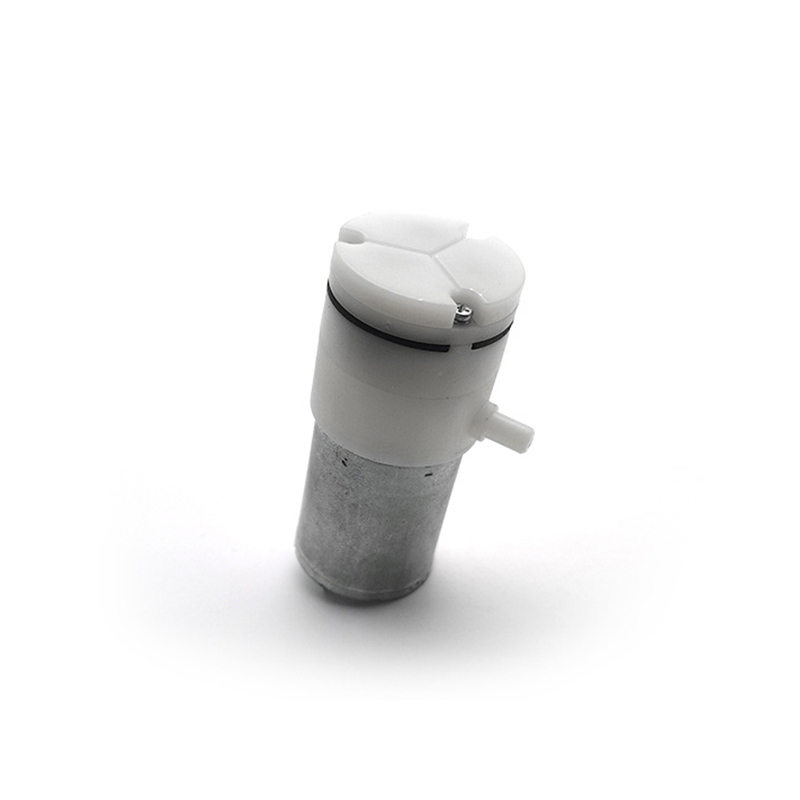

Hot sale 3V 6V Diaphragm Vacuum Pumps mini Air Pump
Type:Vacuum Pump
Samples:Vacuum Pump
Customization:Customized logo/packaging/Graphic(Min. Order:1000 Pieces)
Shipping:Support Express·Sea freight·Land freight·Air freight
Features
- Life:Expected life span is over 500 hours.
- One Year warranty.
- Duty work:The pump can sustain heavy-duty work for a whole day.Continuous operation.
- Working conditions:Applying to indoor and outdoor under temperature 45 deg C.
- Working temperature:5~45°C.
- One week for samples,two weeks for bulk order.
- Factory price+high quality+ good after-sales service.
Related Parameters (The technical specification only for reference, it can be customized)
|
Voltage(V)
|
Power
|
Rated Current
|
tap O.D.
|
Vacuum flow
|
Maximum Pressure
|
|
DC 3V
|
1.8W
|
≤ 600mA
|
Dia 4.2mm
|
1.0 – 3.5 LPM
|
≤ -60 Kpa
|
|
DC 3.7V
|
1.8W
|
≤ 500mA
|
Dia 4.2mm
|
1.0 – 3.5 LPM
|
≤ -60 Kpa
|
|
DC 4.5V
|
1.8W
|
≤ 400mA
|
Dia 4.2mm
|
1.0 – 3.5 LPM
|
≤ -60 Kpa
|
|
DC 6V
|
1.8W
|
≤ 300mA
|
Dia 4.2mm
|
1.0 – 3.5 LPM
|
≤ -60 Kpa
|
|
DC 12V
|
1.8W
|
≤ 150mA
|
Dia 4.2mm
|
1.0 – 3.5 LPM
|
≤ -60 Kpa
|
Application:
1. Household applications:white goods,small appliances,fans,electric screens,automatic window opening,floor cleaning robots,vacuum cleaners,smart home systems.
2. Medical applications:medical pumps,sphygmomanometers,surgical tools,medical agitators,centrifuges.
3. Power tools:air pump,water pump,vacuum pump,oxygen generator,electric drill,electric screwdriver.
4. Commercial equipment:printers,copiers,shredders,projectors,scanners,cash registers,vending machines.
5. Personal care:hair dryer,electric shaver,beauty product,hair curler,steam hair straightener (water jet straight hai outlet).
6. Health field:massager,adult toy.
7. Security field:surveillance system,camera,safe.
8. Industrial applications:robotic arms,printing equipment,automation equipment.
9. Other applications:electronic door locks,smart switches,robots,toys,smart cars,boats,intelligent wear,electronics,DIY,etc.
