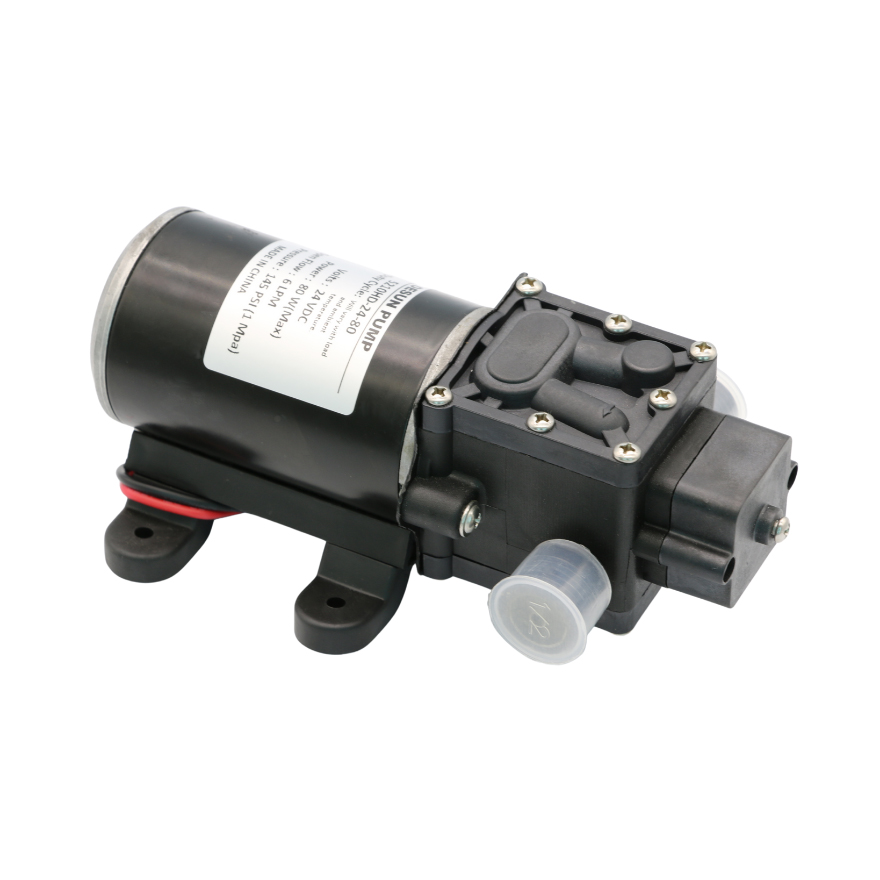

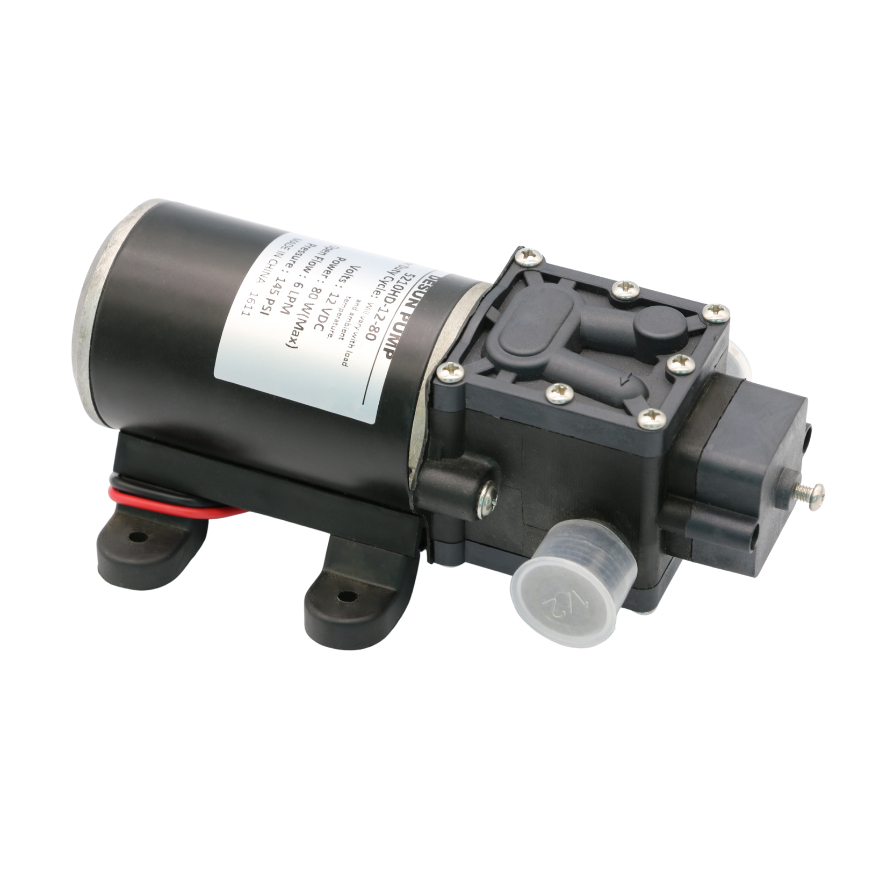

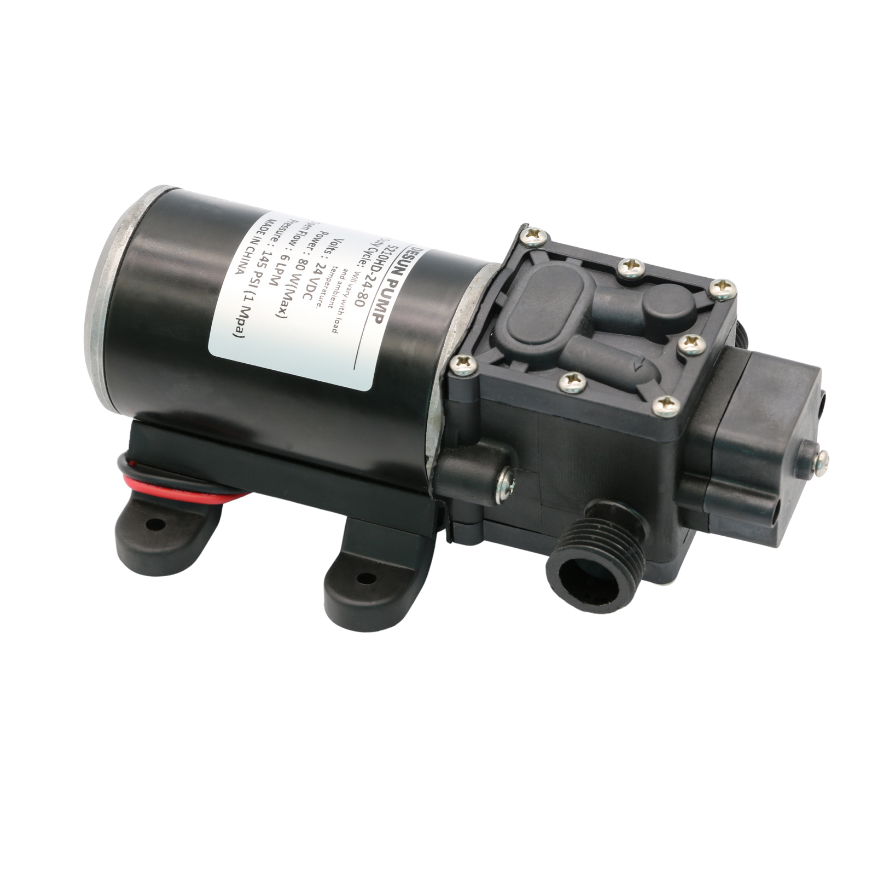

Micro dc electric smart diaphragm water pump
Type:Diaphragm pump
Open flow:6L/MIN
Max power:80W
Customization:Customized logo/packaging/Graphic(Min. Order: 1000 Pieces)
Shipping:Support Express · Sea freight · Land freight · Air freight
TYPE H REFLUX PUMP HEAD
Features: When the water pump outlet is closed or blocked,the pipeline pressure increases to the set value,the reflux valve is opened,the water flow circulates in the pump cavity,and the motor will be continually running.Therefore,the water spray hole size requirements are not high,with strong adaptability.
Application scope:High-pressure spraying equipment,agricultural spraying,and so on need high-pressure fog application occasions.
- Warranty:1 years
- Customized support:OEM,ODM
- Brand Name:Desun
- Model Number:5210HD-12-80,5210HD-24-80
- Place of Origin:Guangdong, China
- Application:Other,Family Homes,Industrial Utilities,Irrigation and Agriculture,Washing and Cleaning,Water Distribution,Water Treatment Solutions
- Horsepower:Desun standard
- Power Source:Electric
- Pressure:High Pressure,145psi
- Structure:Diaphragm Pump
- Voltage:12/24V
- Power:80W
- Product name:Water pump
- Theory:Micro Diaphragm Pumps
- Lifetime:5 years
- Workig temp.:less than 60degC
- Suction lift:1.5M
- Weight:1.06kg
- Certification:CE,RoHS
TYPE H REFLUX PUMP HEAD
Features: When the water pump outlet is closed or blocked,the pipeline pressure increases to the set value,the reflux valve is opened,the water flow circulates in the pump cavity,and the motor will be continually running.Therefore,the water spray hole size requirements are not high,with strong adaptability.
Application scope:High-pressure spraying equipment,agricultural spraying,and so on need high-pressure fog application occasions.
