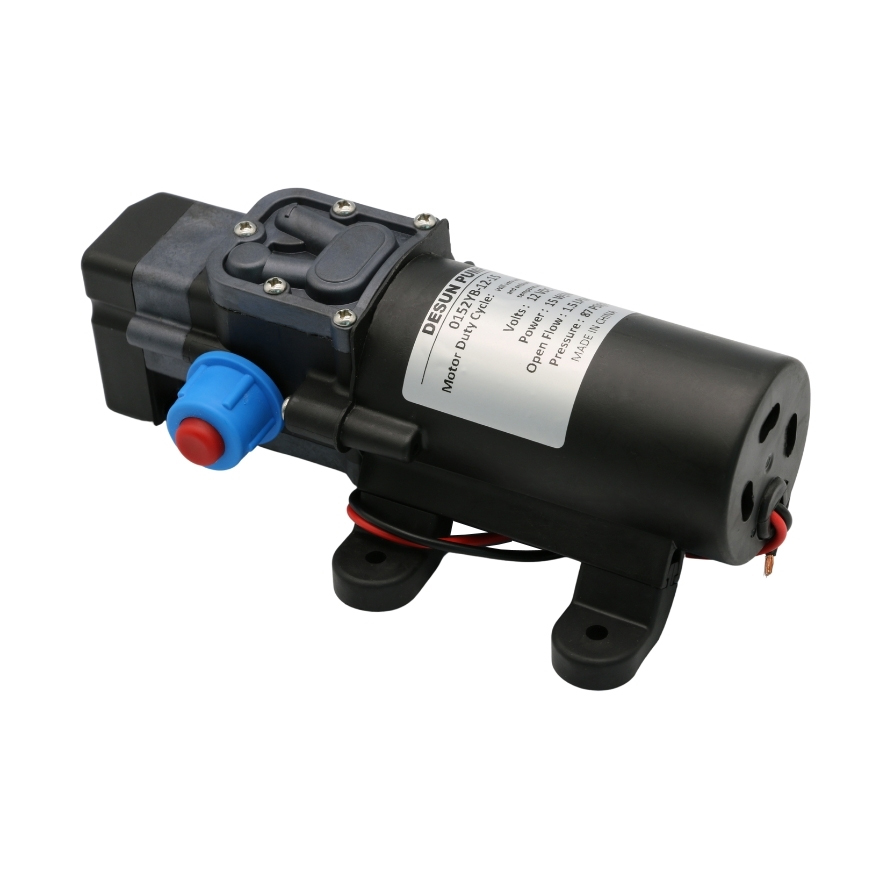

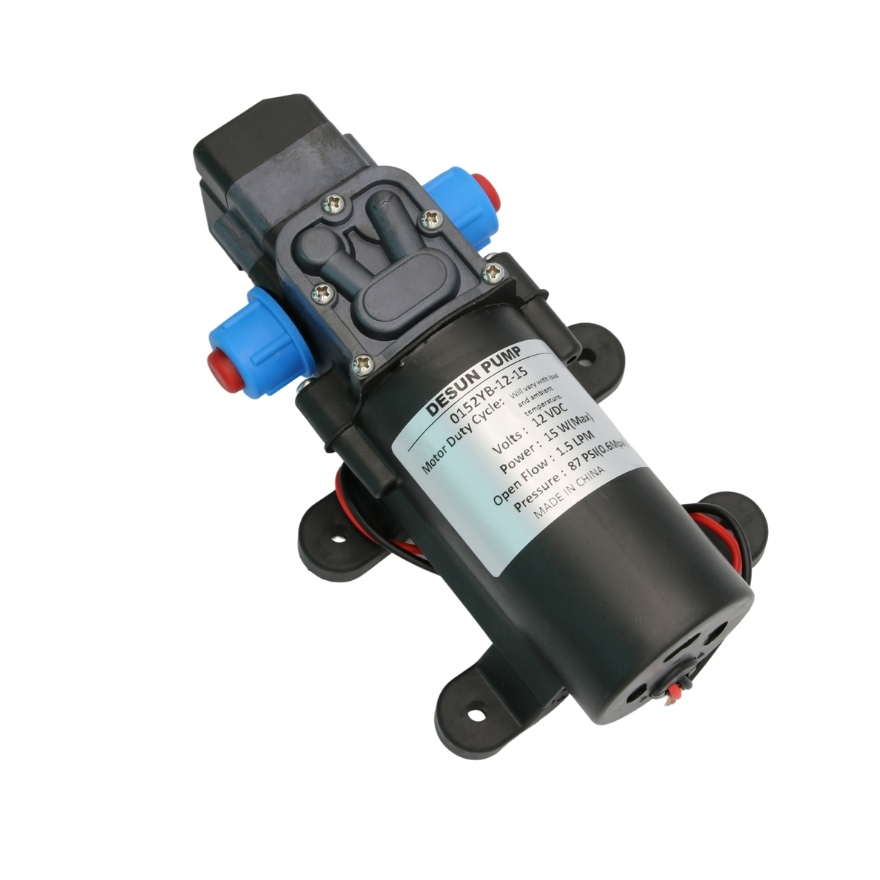

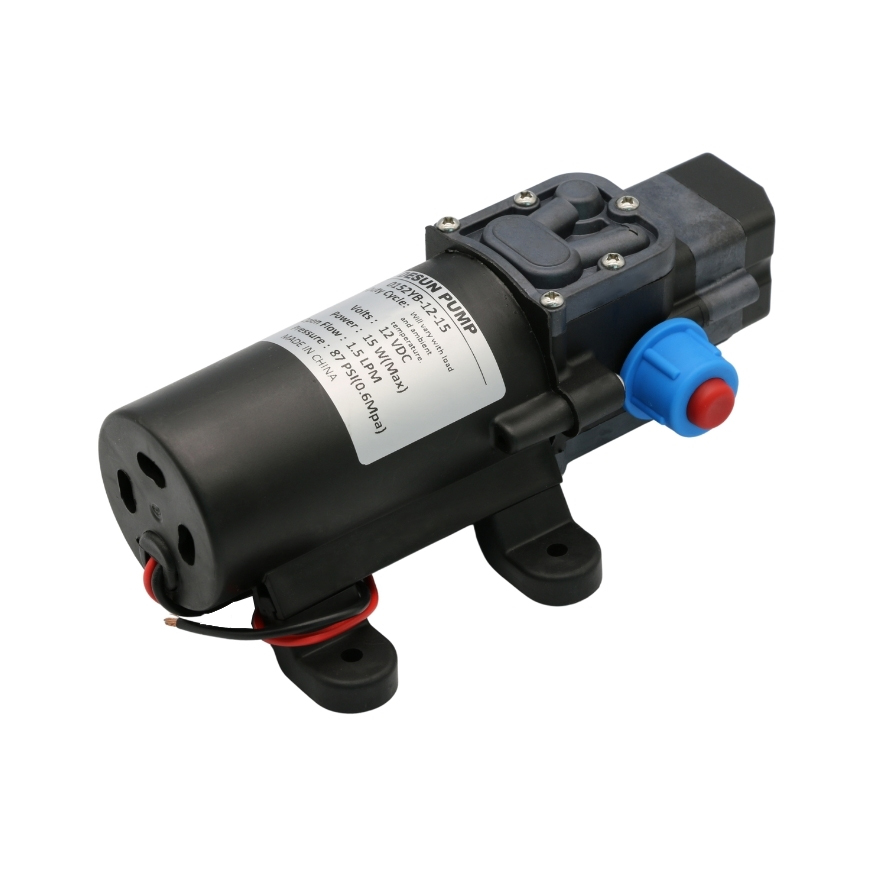

mini 15w 12volt dc diaphragm water pump
- Warranty:1 year
- Customized support:OEM,ODM,OBM
- Brand Name:Desun
- Model Number:0152YB-12-15
- Place of Origin:Guangdong,China
- Application:Other,Automotive Industry,Biofuel Industry,Commercial Buildings,Developing World Water Solutions,District Energy,Family Homes,HVAC OEM,Industrial Boilers,Industrial Utilities,Irrigation and Agriculture, Machining,Metal and Equipment Manufacturers,temperature control,Washing and Cleaning,Water Distribution,Water Treatment Solutions
- Power Source:Electric
- Pressure:High Pressure
- Structure:Diaphragm Pump
- Cable Length:30CM
- Voltage:12V
- Power:15w
- Type:Diaphragm Pump
- Max pressure:87PSI
- Working temp:100℃
- Lifetime:2000H
- Suction lift:1m
- Usage:Liquid Transfer
- Water head:35M
- Flow:1.5 L/min
- Weight:0.7KG
- Certification:CE,RoHS
Introduce

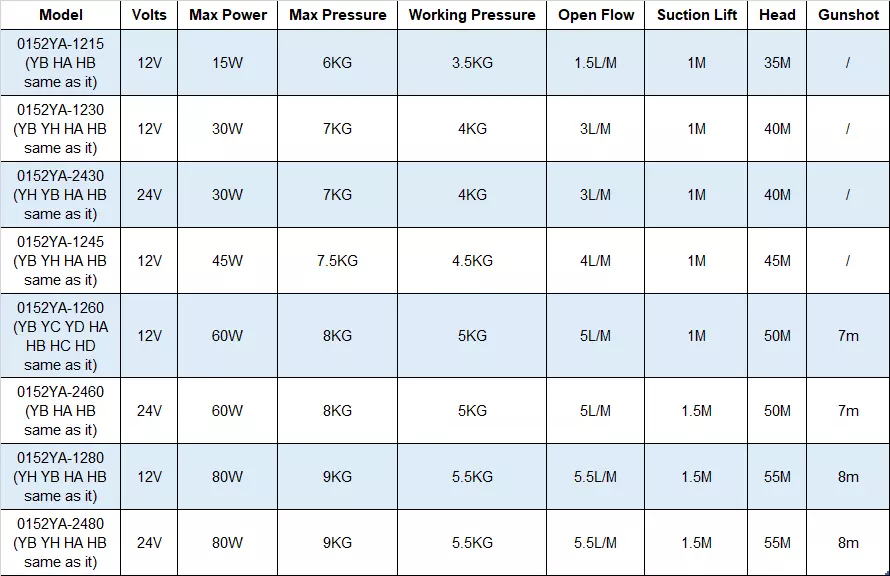

Specification
Application
Features:
When the water pump outlet is closed or blocked,the pipeline pressure increases to the set value,the power supply will be automatically cut off to stop the motor；
The pressure reduces while reopening the water outlet,then the pressure switch will automatically turn on the power supply,and the motor rerun.
Application scope:
Car washer,solar energy automatic water,water system automatic control or other fluid automatic control auxiliary equipment,etc...
