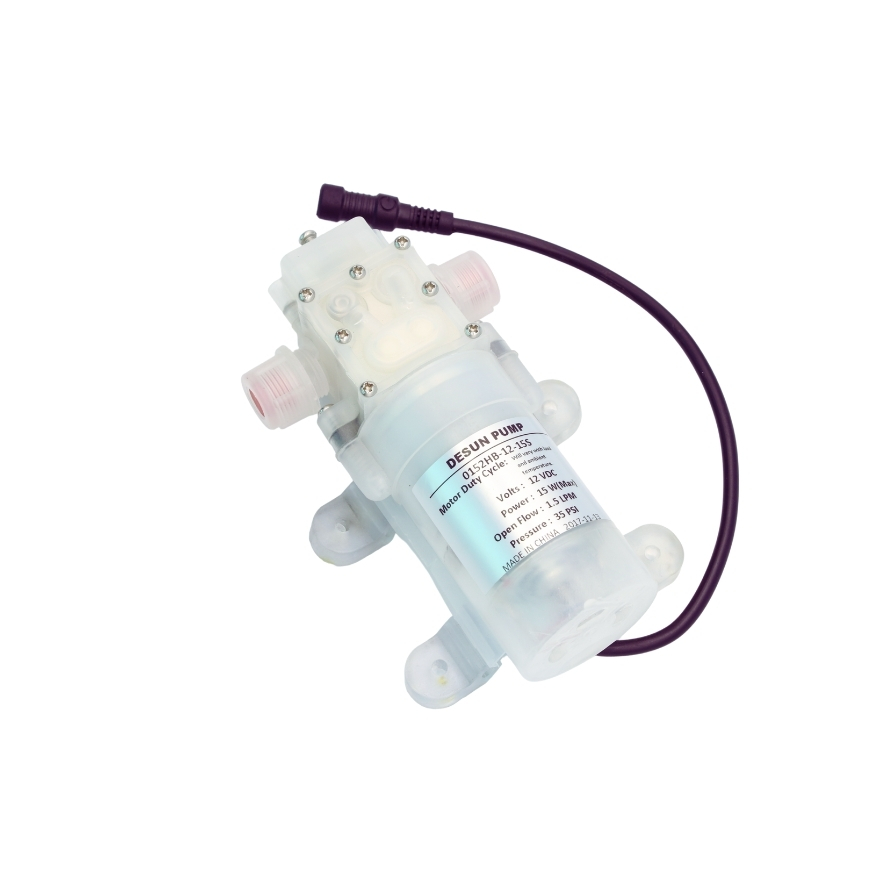

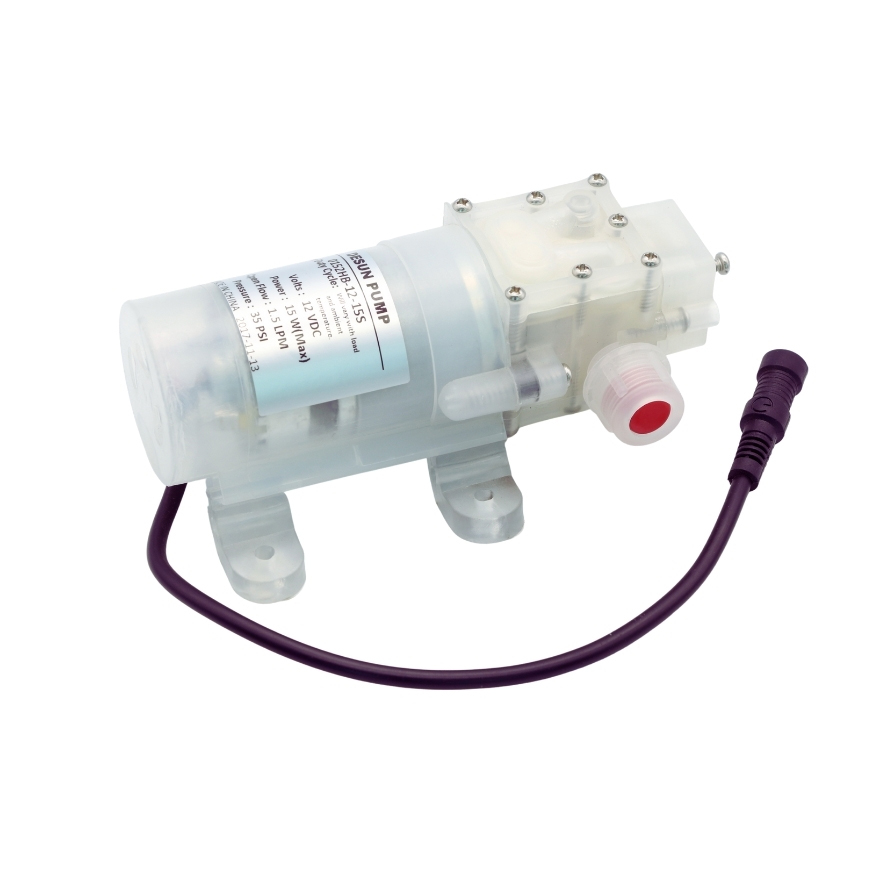

Mini dc electric self-priming food grade diaphragm water pump
- When the water pump outlet is closed or blocked,the pipeline pressure increases to the set value,the power supply will be automatically cut off to stop the motor；
- The pressure reduces while reopening the water outlet,then the pressure switch will automatically turn on the power supply,and the motor rerun.
Introduce
Specification
Application
|
Model
|
Voltage
(V)
|
Max.Power
(W)
|
Max.Pressure
(KG)
|
Working Pressure
(KG)
|
Open Flow
(L/Min)
|
Suction Lift
(M)
|
Head
(M)
|
|
0152HB-12-70N
|
12V/24V
|
70W |
|
6L/min
|
1M
|
30M
|
- Warranty:1 year
- Customized support:OEM,ODM
- Brand Name:Desun
- Model Number:0152HB-12-70S/0152HB-24-70S
- Place of Origin:Guangdong,China
- Application:Drinking water treatment,Family Homes,Food and Beverage Industry,Washing and Cleaning,Water Distribution,Water Treatment Solutions
- Horsepower:Desun standard
- Power Source:Electric
- Pressure:High Pressure
- Structure:Diaphragm Pump
- Voltage:12/24V
- Power:15w~70W
- Theory:Diaphragm Pumps
- Product name:Electric Water Pump
- Lifetime:Over 2000 hours
- Workig temp.:≤70℃
- Suction lift:1.5M
- Flow rate:1.5~6l/min
- Weight:0.7kg
- Can be customized:can adjust as your need
- Certification:CE,RoHS
- Application:Drinking water treatment, Family Homes, Food and Beverage Industry, Washing and Cleaning, Water Distribution, Water Treatment Solutions
