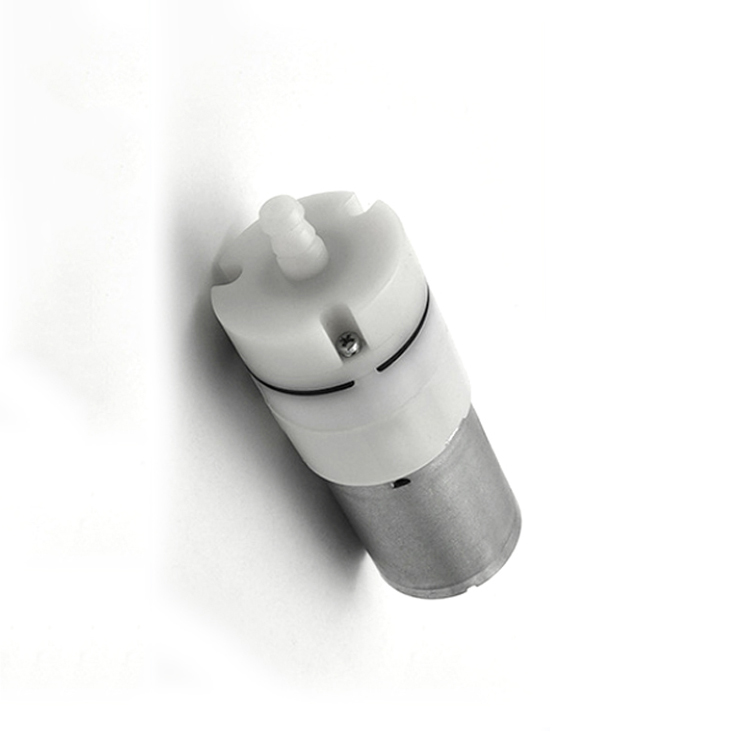

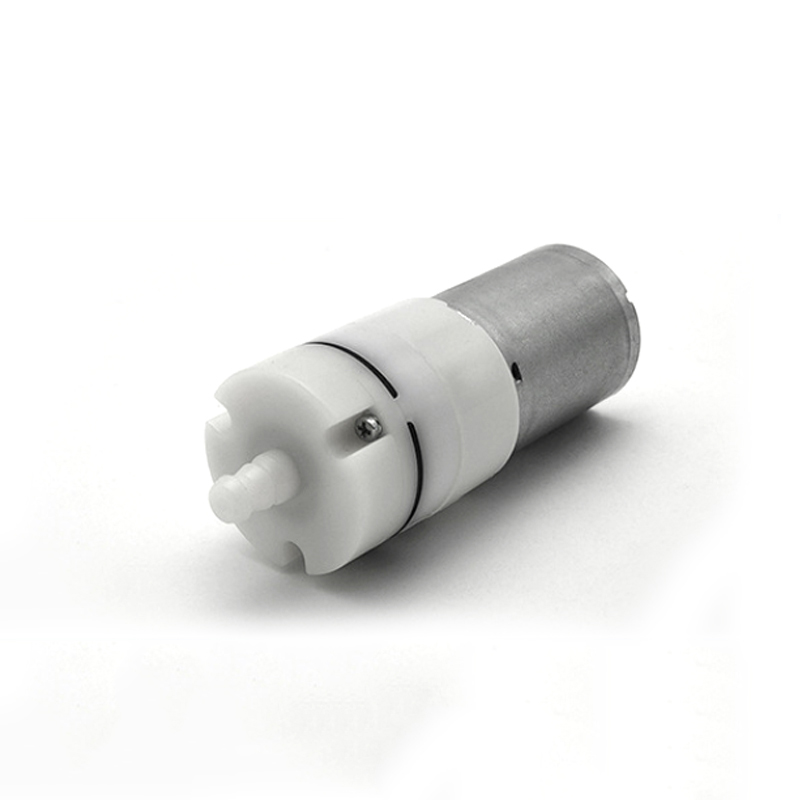

small dc air pump diaphragm water pump 12v pump
- Life:Expected life span is 50000 times.
- One Year warranty.
- Duty work:The pump can sustain heavy-duty work for a whole day.Continuous operation.
- Working conditions:Applying to indoor and outdoor under temperature 45 deg C.
- Working temperature:5~45°C .
- One week for samples,two week for bulk order.
- Factory price+high quality+good after-sales service
Introduce
Specification
Application
-
Model Number:DSP370-XC
- Horsepower:Desun Standard
- Power Source:Electric
- Pressure:Low Pressure
- Structure:Peristaltic Pump
- Cable Length:Desun Standard
- Outlet Size:5.6mm
- Voltage:3V/6V/9V/12V/24V
- Power:2.4w
- Product name:air pump
- Lifetime:>=50000 Times
- Noise:≤60dB (30cm away)
- inflation time:<10S(from 0 to 300mmHg in a 500cc tank)
- air flow:0.5-2.5LPM
- leakage:<3.0mmHg/min
Related model technical parameters
|
Voltage(V)
|
Power
|
Rated Current
|
Air tap O.D.
|
Air flow
|
Maximum Pressure
|
|
DC3V
|
2.4W
|
≤ 900mA
|
Dia 5.6mm
|
0.5-2.5 LPM
|
≥60KPa
|
|
DC 6V
|
2.4W
|
≤ 450mA
|
Dia 5.6mm
|
0.5-2.5 LPM
|
≥60KPa
|
|
DC 9V
|
2.4W
|
≤ 300mA
|
Dia 5.6mm
|
0.5-2.5 LPM
|
≥60KPa
|
|
DC 12V
|
2.4W
|
≤ 220mA
|
Dia 5.6mm
|
0.5-2.5 LPM
|
≥60KPa
|
|
DC 24V
|
2.4W
|
≤ 110mA
|
Dia 5.6mm
|
0.5-2.5 LPM
|
≥60KPa
|
Application :
1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots,vacuum cleaners, smart home systems.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY,etc.
The application scene pictures are just for your reference. We supply Full Customization Service, please contact us for the details.
1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots,vacuum cleaners, smart home systems.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY,etc.
The application scene pictures are just for your reference. We supply Full Customization Service, please contact us for the details.
