soap dispenser Food grade electric small gel pump
- Type:Diaphragm pump
- Volts:3V-12V
- Ampa:2A-0.8A
- Customization:Customized logo/packaging/Graphic(Min. Order: 1000 Pieces)
- Shipping:Support Express · Sea freight · Land freight · Air freight
Introduce
Specification
Application
|
Product name
|
Peristaltic Water Pump
|
|
Model
|
DS303
|
|
Working voltage
|
3~12V（DC）
|
|
Rated Current
|
0.2A - 0.8A
|
|
Max. flowrate
|
0.1 - 0.3L/min
|
|
Max. head
|
>= 0.5M
|
|
Max vacuum
|
≤ - 20Kpa
|
|
Noise
|
≤ 65dB
|
|
Lifetime
|
>=100,000Times (on 2s /off 2s )
|
|
Suction Lift
|
>= 0.5M
|
|
Outlet diameter
|
Dia 5mm
|
The technical parameters above are only a few for your reference.You can tell us what you use for,then we'll offer you suitable pumps.

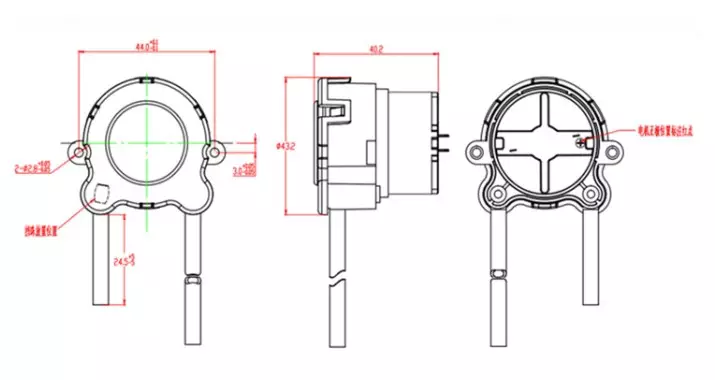

Dimensional drawing and working curve diagram
- Warranty:1 year
- Customized support:OEM,ODM
- Brand Name:Desun
- Model Number:DS303
- Place of Origin:Guangdong,China
- Application:Developing World Water Solutions,Drinking water treatment,Family Homes,Food and Beverage Industry,HVAC OEM,Industrial Utilities,Raw Water Intake,Wastewater Transport and Flood Control,Water
- Distribution,Water Treatment Solutions
- Horsepower:Desun Standard
- Power Source:Electric
- Pressure:Desun Standard
- Structure:Peristaltic Pump
- Cable Length:Desun Standard
- Outlet Size:dia 5mm
- Voltage:3V – 12V
- Power:2.4W
- Theory:Peristaltic Pump
- Lifetime:>=100,000 Times(on 2s/off 2s)
- Noise:≤65dB
- Workig temp.:≤100℃
- Duty work:Work a whole day continously
- Water lift:>=0.5m
- Suction Lift:>=0.5m
- Standard or Nonstandard:Standard or OEM
- Maximum vacuum:≤20kPA
- Certification:ce
