Wholesale 12V Aquarium brushless Water pump
- Type: Centrifugal Pumps,Custom water pump
- Maximum Head:2m
- Maximum Flow Rate:2L/min
- Samples:Centrifugal Pumps,2m, 2L/min
- Customization:Customized logo/packaging/Graphic(Min. Order: 1000 Pieces)
- Shipping:Support Express·Sea freight·Land freight·Air freight
Introduce
Specification
Application
Features
- Small size,lightweight,easy to install;
- Epoxy potting,IP68 waterproof rating;
- Brushless motor,long life span;
- Durable permanent magnetic rotor and high density (stainless steel zirconia) optional shaft.
Customizable Functions
- 0~5V speed control;
-
FG signal wire;
-
PWM speed control;
-
PV solar powered
-
Submersible (water tempreture≤50℃);
-
High temperature customized (≥100℃);
-
Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Technical parameters
|
Product name
|
Water pump
|
|
Model
|
DS2508
|
|
Working voltage
|
3~12V（DC）
|
|
Max. flowrate
|
2L/min
|
|
Max. head
|
2M
|
|
Working temp.
|
≤70 ℃
|
|
Material
|
ABS
|
|
Water proof level
|
IP68
|
|
Noise
|
≤30dB
|
|
Lifetime
|
20000H
|
|
Inlet diameter
|
9.7mm
|
|
Outlet diameter
|
7mm
|
More technical parameters
|
Model
|
Volts(V)
|
Amps(A)
|
Flow(LPM)
|
Head(M)
|
Power(W)
|
|
DS2508-0310
|
3
|
0.07
|
0.9
|
1
|
0.17
|
|
DS2508-0510
|
5
|
0.12
|
1.1
|
1
|
0.6
|
|
DS2508-0610
|
6
|
0.15
|
1.3
|
1
|
0.9
|
|
DS2508-0917
|
9
|
0.23
|
1.7
|
1.7
|
2.07
|
|
DS2508-1220
|
12
|
0.34
|
2
|
2
|
3.8
|
The technical parameters above are only a few for your reference.You can tell us what you use for,then we’ll offer you suitable pumps.

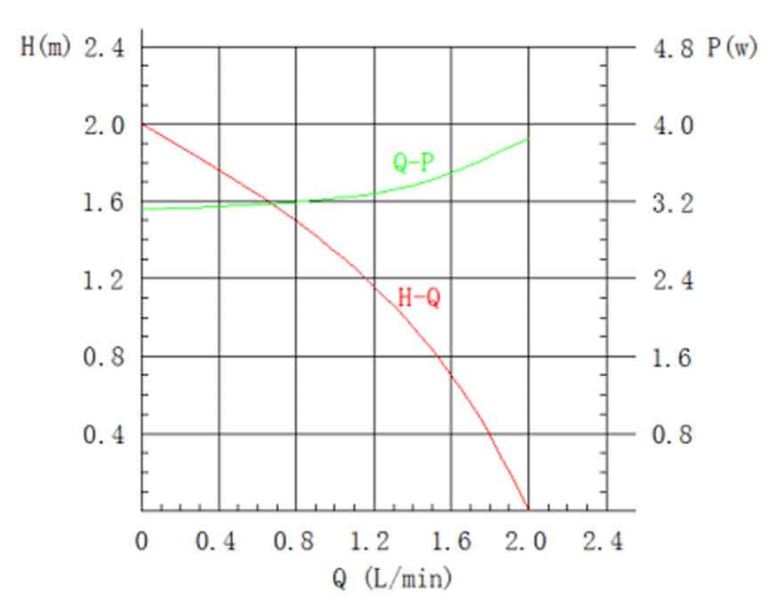

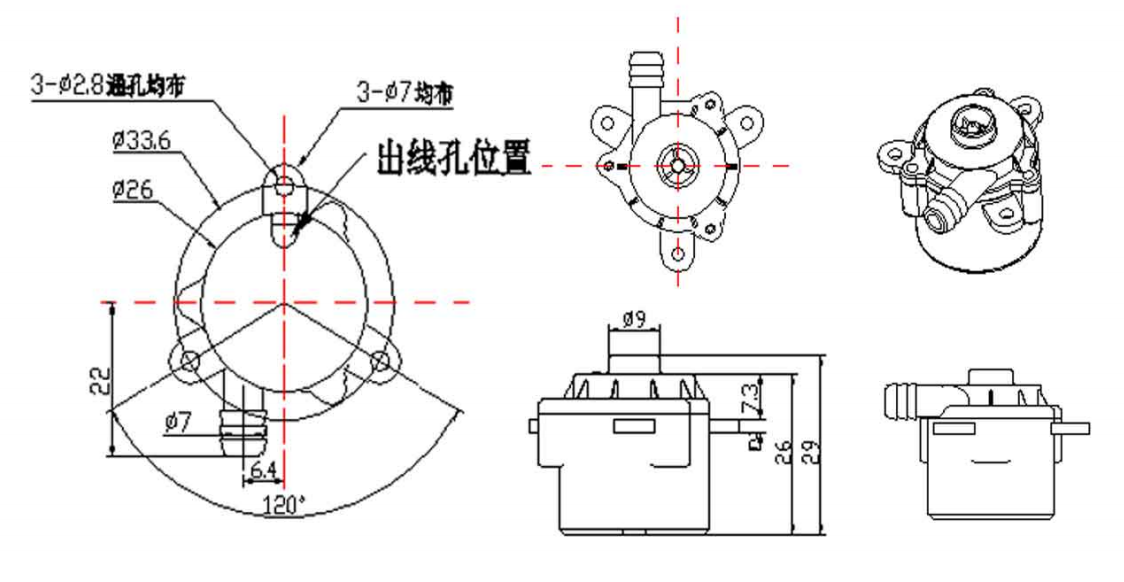

Dimensional drawing and working curve diagram
application scope pictures are only for referenc0e.
Widely used for hydroponics, water heaters, hot water circulation, small air conditioner, mini aquarium, fish tank, water circulation, desktop fountain, Handicraft decoration water cycle, humidifier, Water and soil cultivation, pet fountain, etc…
We supply Full Customization Service, please contact us for the details.
Support both submersible and not submersible installation
