Wholesales 12v DC Submersible Water Pump
- Small size,lightweight,easy to install;
- Epoxy potting,IP68 waterproof rating;
- Brushless motor,long life span;
- Durable permanent magnetic rotor and high density(stainless steel zirconia)optional shaft.
Introduce
Specification
Application
Product name:Water pump
Model:DS3502
Working voltage:12/24V
Max. flowrate:9L/min
Max. head:5M
Working temp:≤70 ℃
Material:ABS
Water proof level:IP68
Noise:≤35dB
Lifetime:20000H
Inlet diameter:R1/2
Outlet diameter:R1/2
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
Related model technical parameters
|
Model
|
Volts
(V)
|
Amps
(A)
|
Flow
(LPM)
|
Head
(M)
|
Power
(W)
|
|
DS3502-1250
|
12
|
1
|
9
|
5
|
12
|
|
DS3502-2450
|
24
|
0.5
|
9
|
5
|
12
|
The technical parameters above are only a few for your reference.You can tell us what you use for,then we’ll offer you suitable pumps.

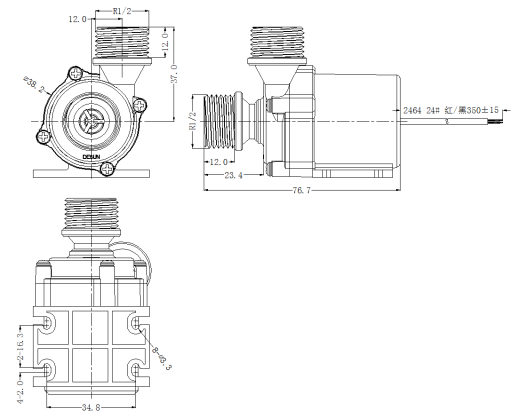

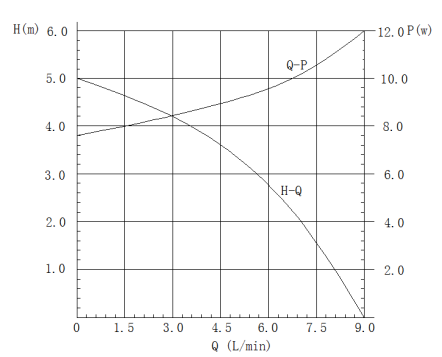

Dimensional drawing and working curve diagram
Widely used for hydroponics,water heaters,hot water circulation,small air conditioner,mini aquarium,fish tank,water circulation,desktop fountain,Handicraft decoration water cycle,humidifier,Water and soil cultivation,pet fountain,etc…
The application scene pictures are just for your reference.We supply Full Customization Service,please contact us for the details.
