Description

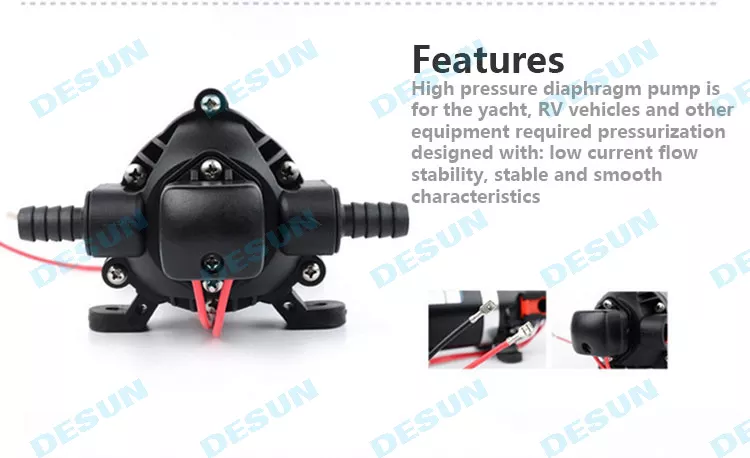

Features

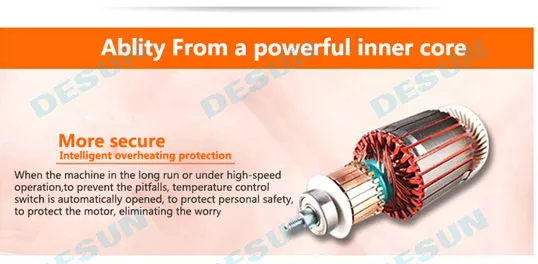

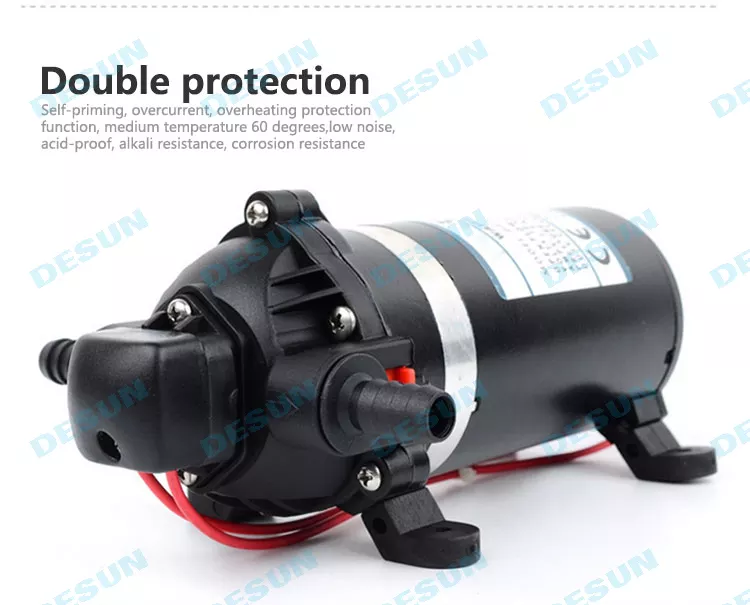

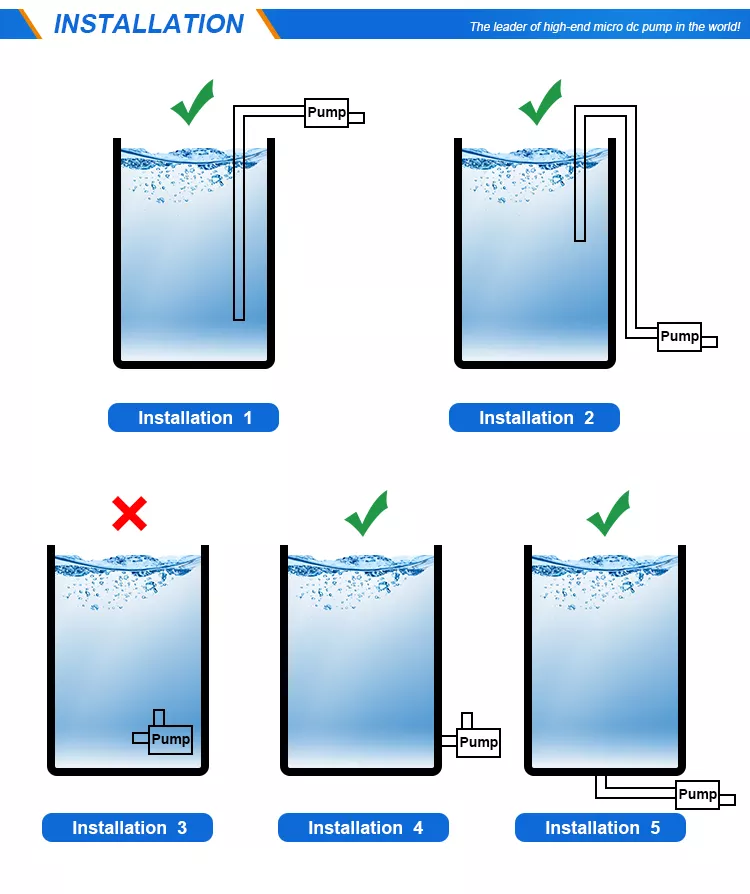

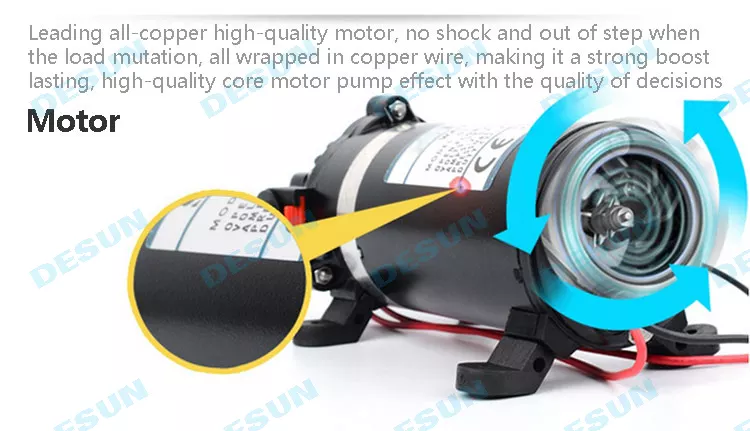

Permanent magnet and intermittent duty. Built-in pressure switch automatically starts and stops. Pump when faucets are opened and closed. Self-priming so the pump can be located above the water tank, run dry for extended periods of time without damage, built-in thermal protector.
|
Pump design
|
3 chabmer diaphragm
|
|
Open flow
|
6LPM
|
|

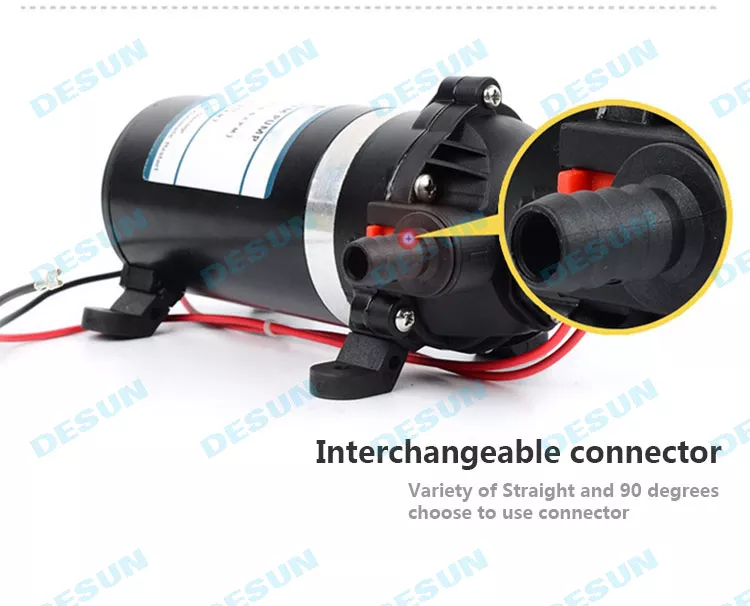

Port size
|
3/8”(9.5MM) hose barb
|
|
Max pressure
|
60~160pcsi(11bar)
|
|
Liquid temprature
|
140F(60degC)
|
|
Body materail
|
Polypropyleme
|
|
Spring materail
|
Stainless steel
|
|
Model
|
Voltage
(V) |
Flowrate
(LPM) |
Pressure
(psi/bar) |
AmpDraw
(A) |
Lift Max(M)
|
Outlet (mm)
|
Inlet
(mm)
|
Packing Size (mm)
|
N.W/G.W (kg)
|
|
DP-60
|
12V
|
6.0
|
60/4.1
|
7.0
|
35
|
9.5
|
9.5
|
265*120*106
|
2.40/2.70
|
|
DP-80
|
12V
|
5.8
|
80/5.5
|
8.0
|
50
|
9.5
|
9.5
|
265*120*106
|
2.40/2.70
|
|
DP-100
|
220V
|
6
|
100/7.0
|
9.0
|
60
|
9.5
|
9.5
|
265*120*106
|
2.40/2.70
|
|
DP-120
|
12V
|
5.3
|
120/8.3
|
9.5
|
70
|
9.5
|
9.5
|
265*120*106
|
2.40/2.70
|
|
DP-160
|
12V
|
5.1
|
160/11.0
|
10.5
|
95
|
9.5
|
9.5
|
265*120*106
|
2.40/2.70
|
|
DP-120S
|
220V
|
5.3
|
120/8.3
|
0.5
|
70
|
9.5
|
9.5
|
265*120*106
|
2.40/2.70
|
|
DP-160S
|
220V
|
5.1
|
160/11.0
|
0.55
|
95
|
9.5
|
9.5
|
265*120*106
|
2.40/2.70
|
